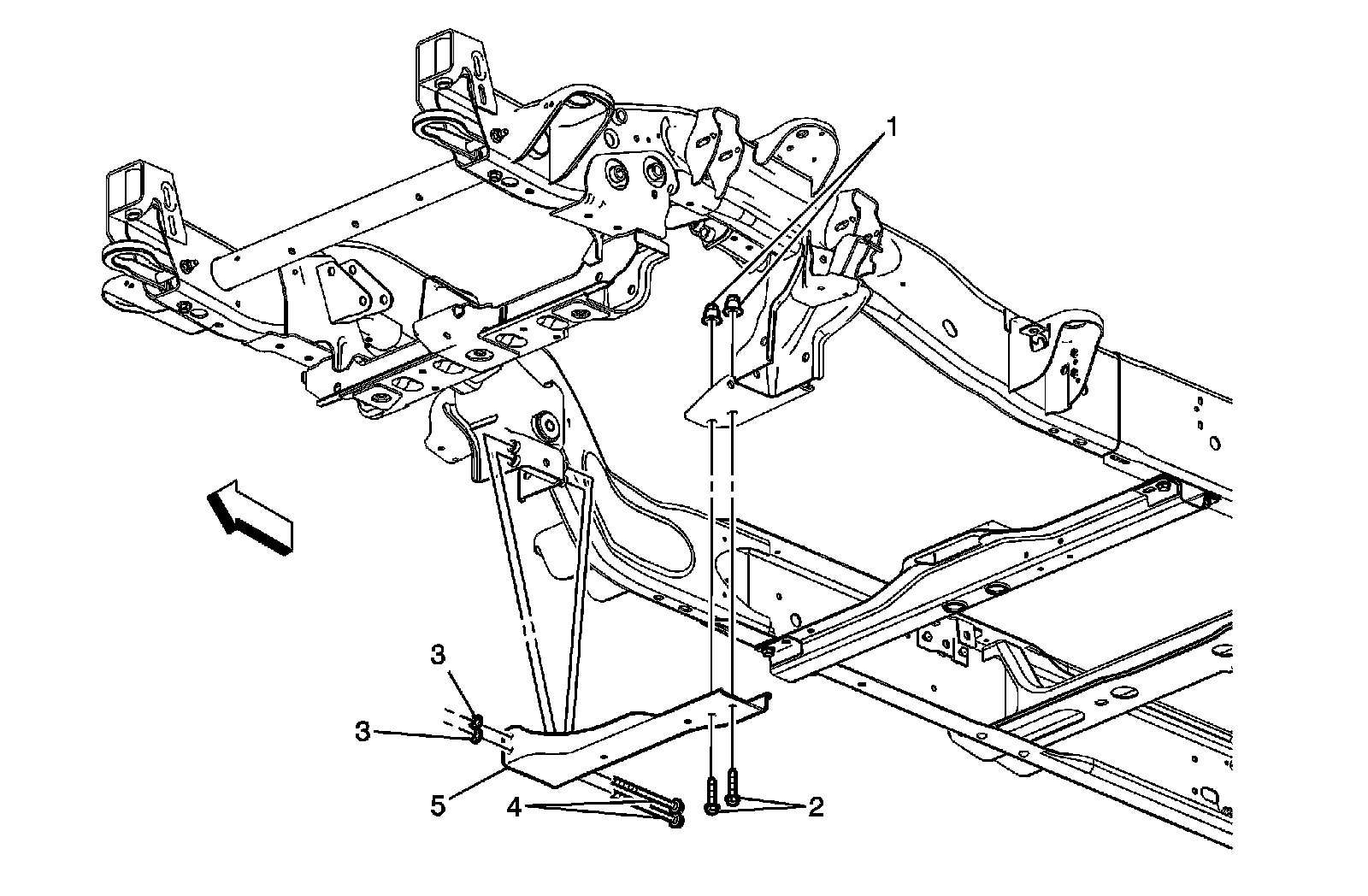

Drivetrain and Front Suspension Frame Front Crossmember Replacement (2WD 2500HD, 3500)


Drivetrain and Front Suspension Frame Front Crossmember Replacement (2WD 2500HD, 3500)

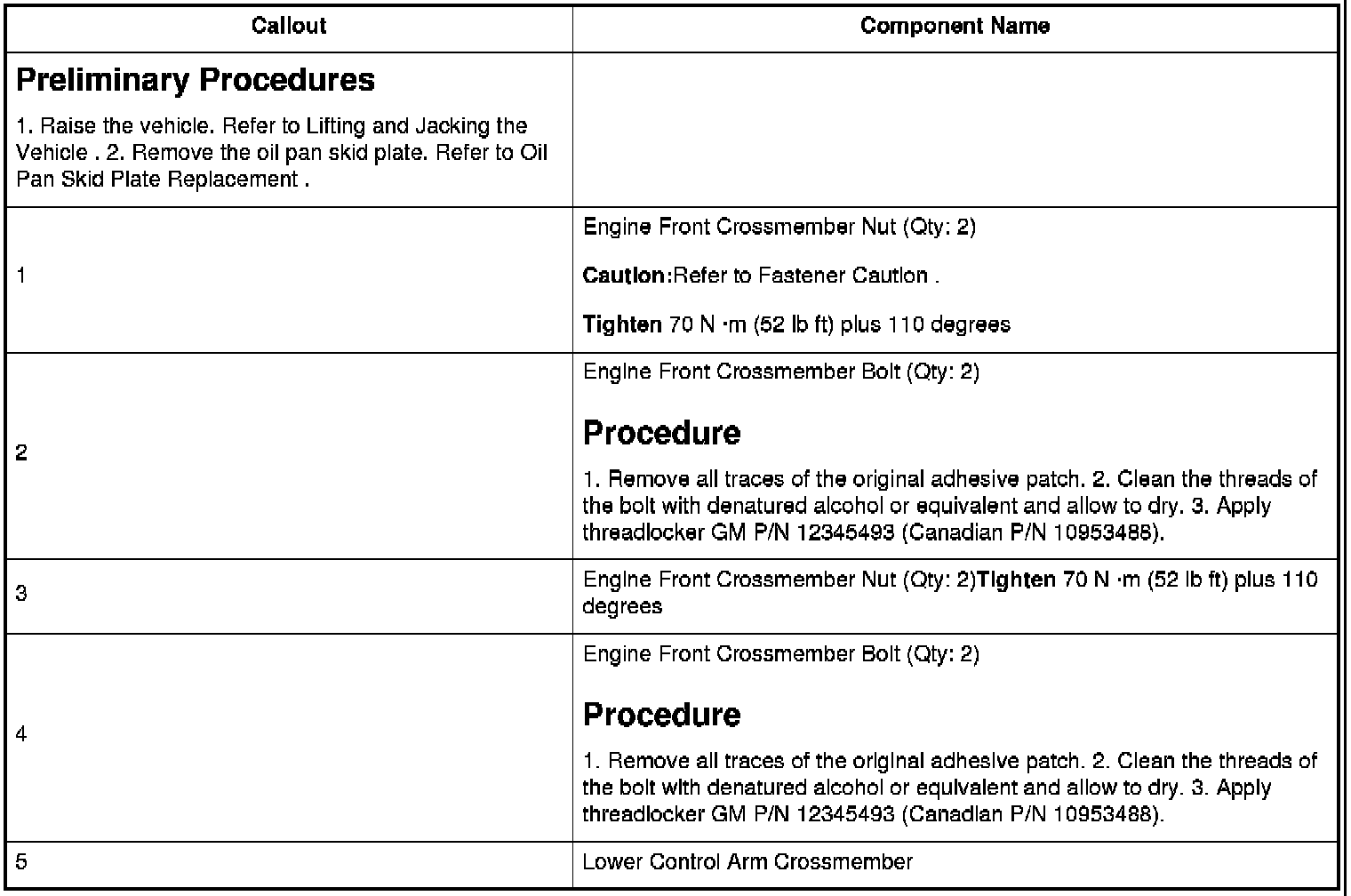

Preliminary Procedures

Caution:Refer to Fastener Caution.
Tighten
Procedure
Tighten
Procedure
