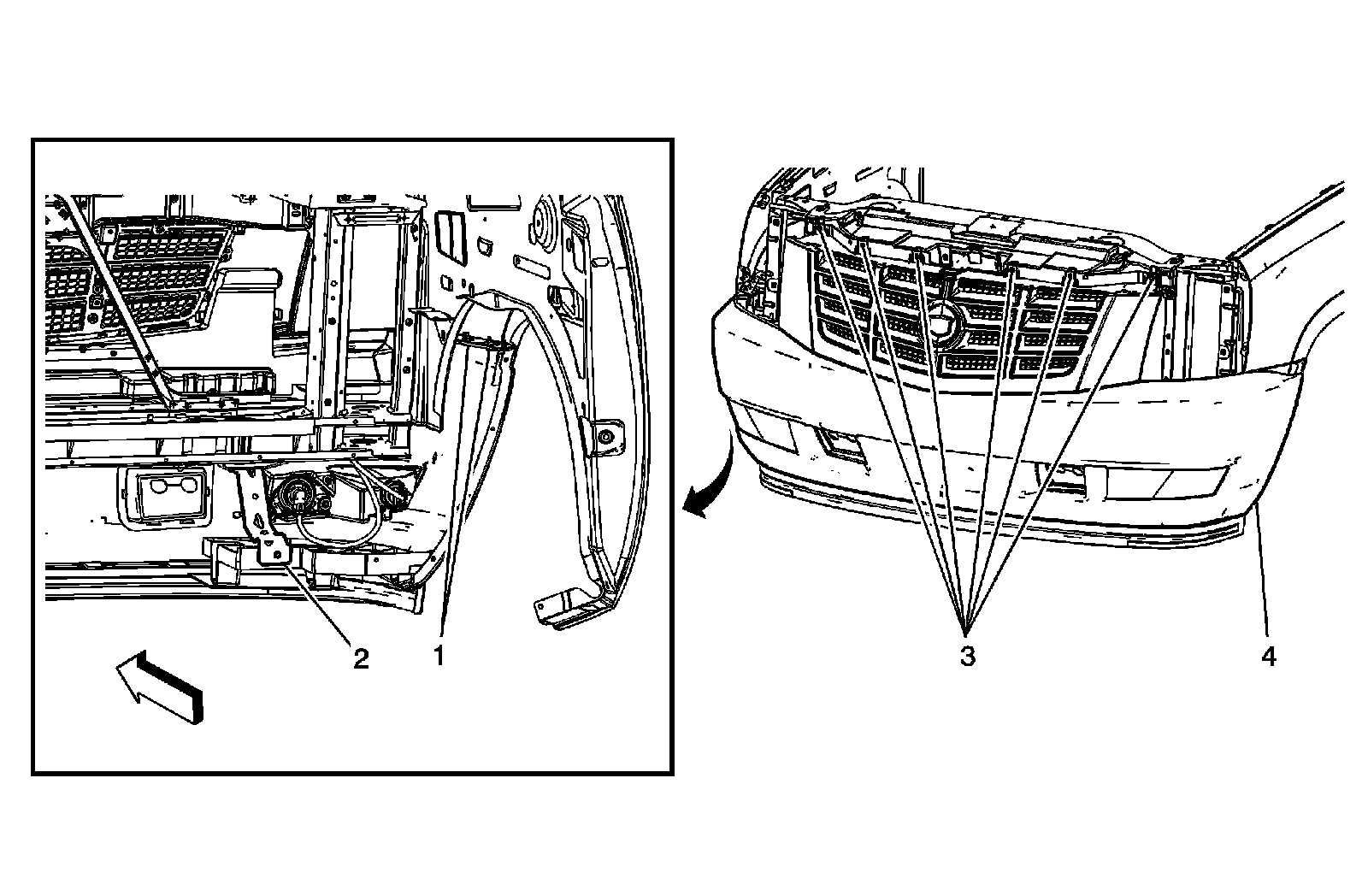

Front Bumper Fascia Replacement (Escalade)


Front Bumper Fascia Replacement (Escalade)

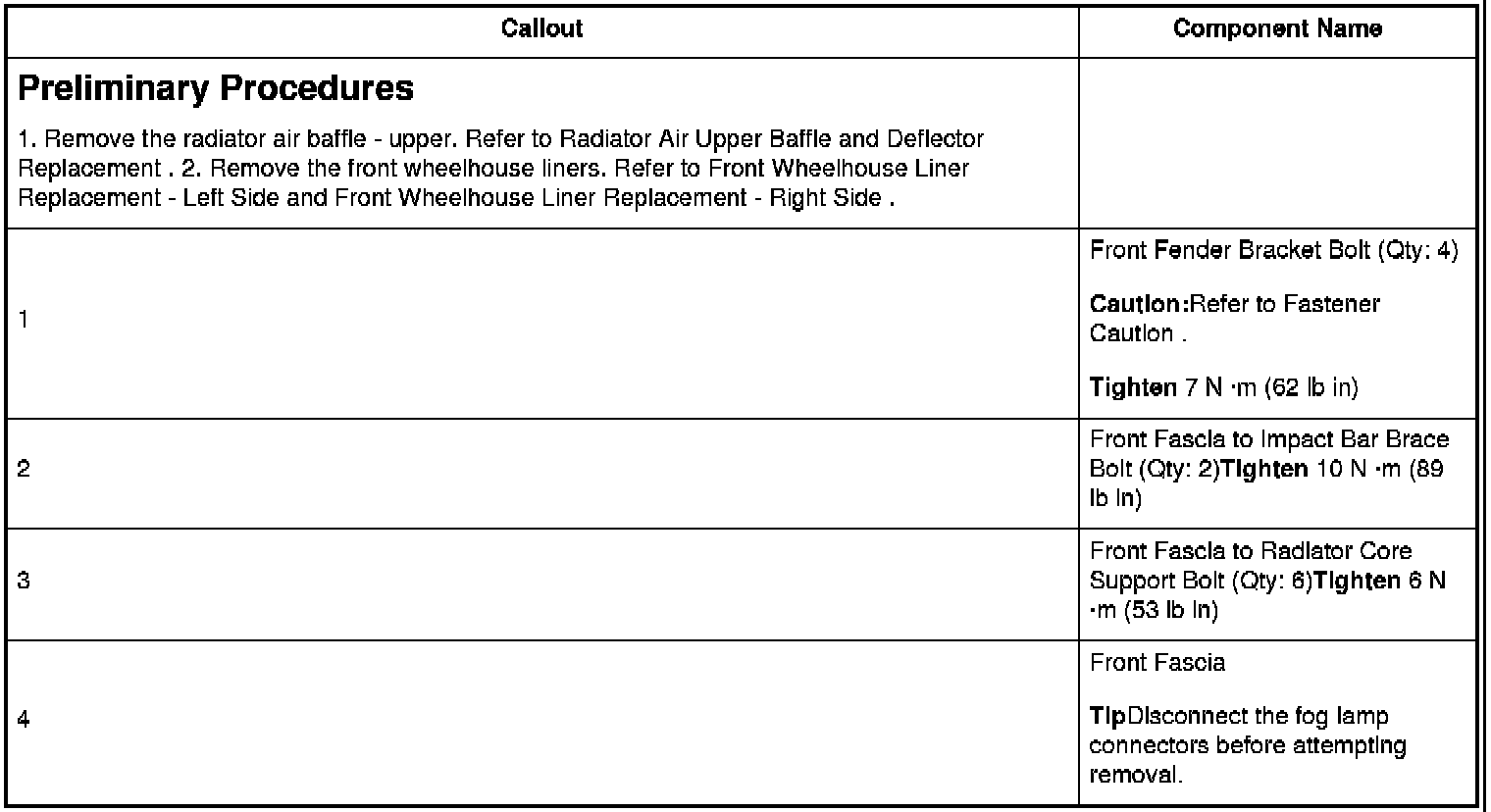

Preliminary Procedures

Caution:Refer to Fastener Caution.
TightenTightenTighten
TipDisconnect the fog lamp connectors before attempting removal.
