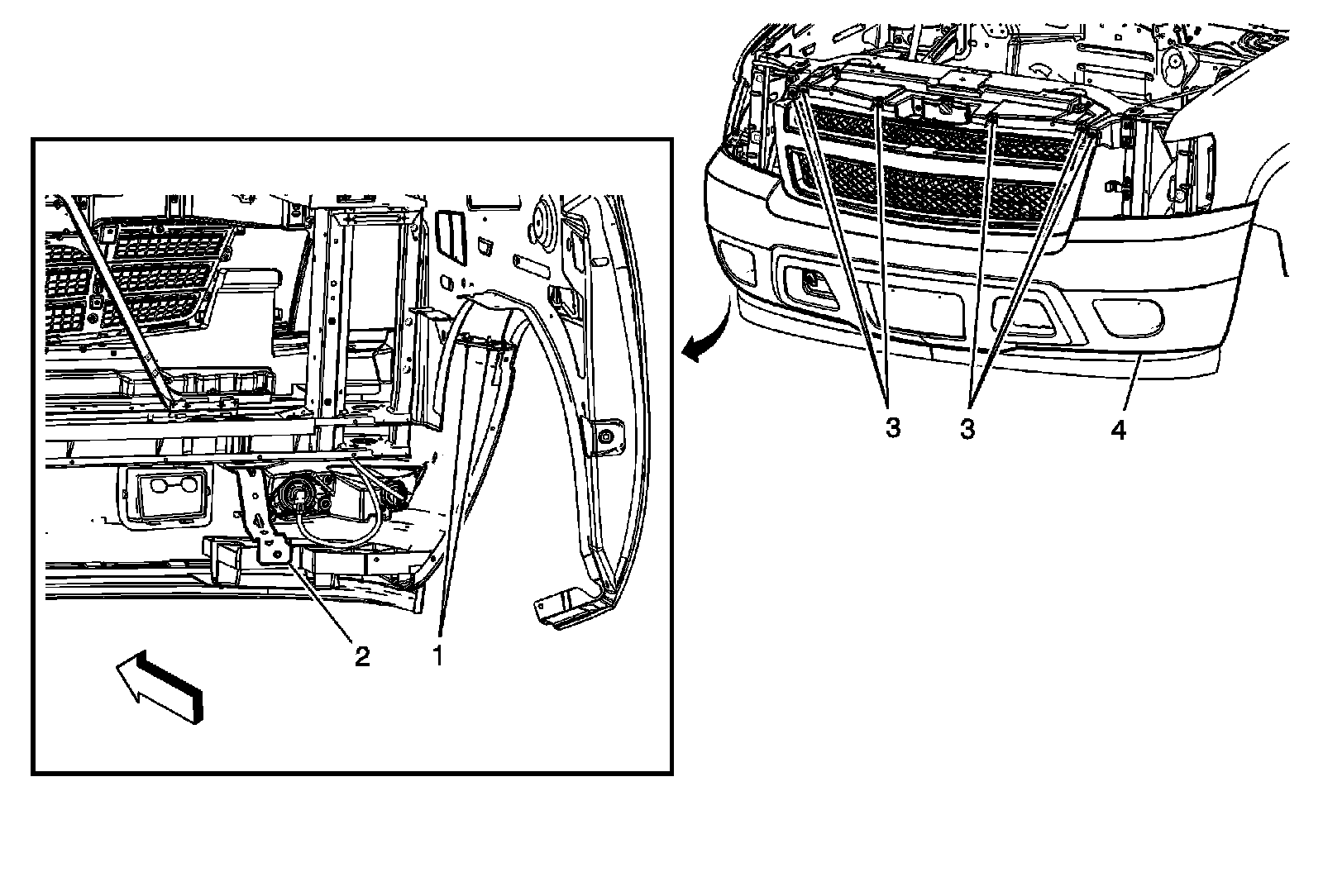

Front Bumper Fascia Replacement (Avalanche)


Front Bumper Fascia Replacement (Avalanche)

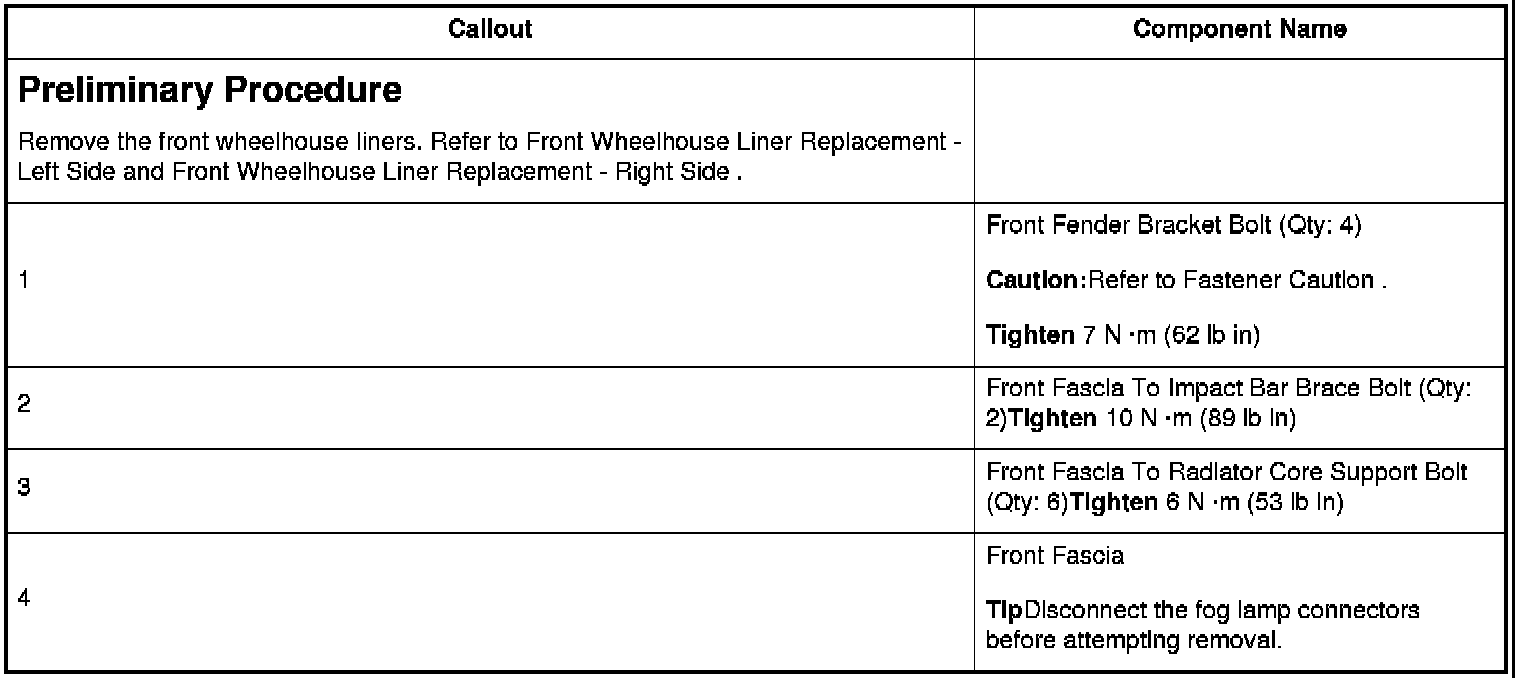

Preliminary Procedure

Caution:Refer to Fastener Caution.
TightenTightenTighten
TipDisconnect the fog lamp connectors before attempting removal.
