Installation Procedure

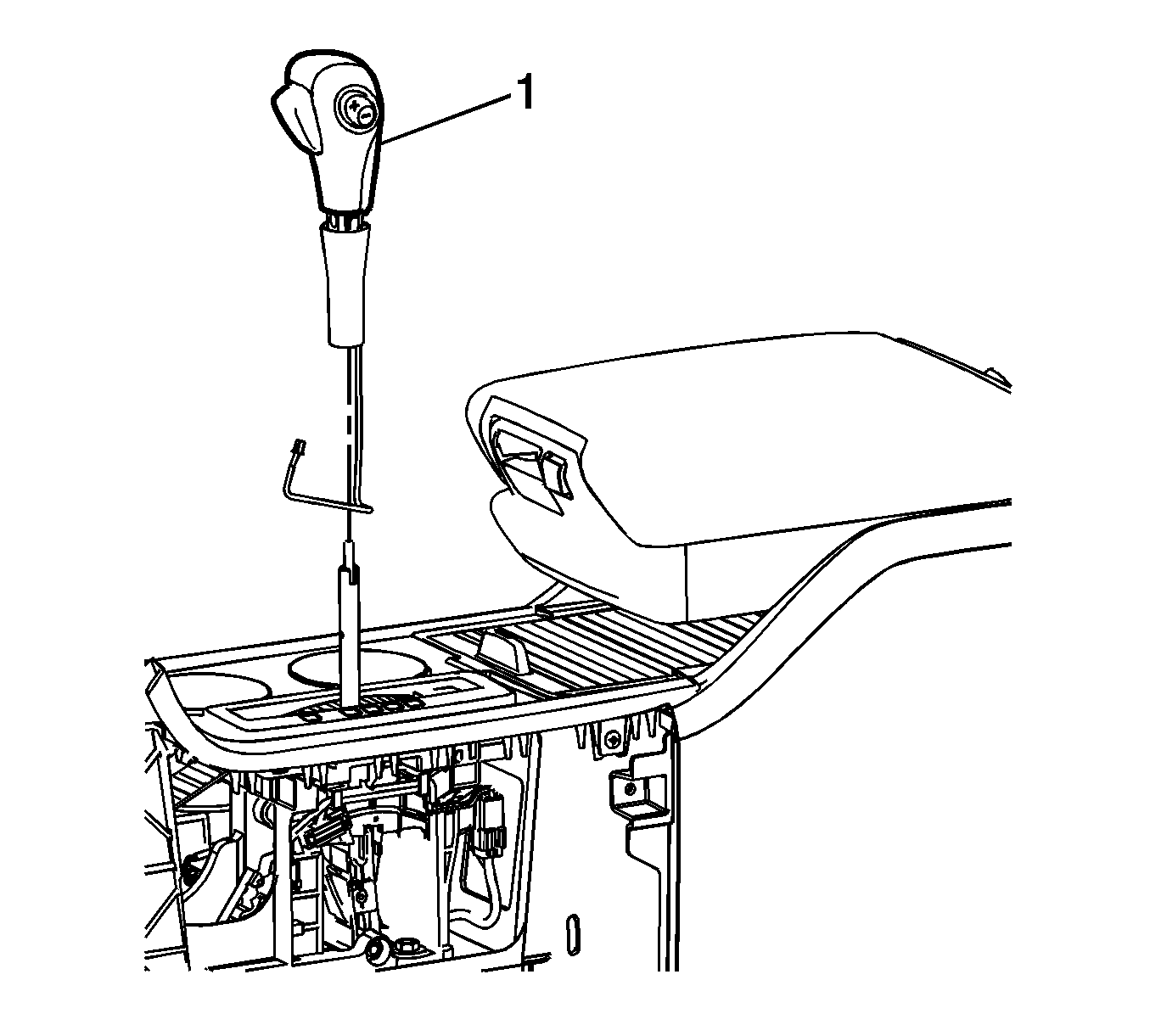

Fig 1: Identifying Shift Control Knob

Courtesy of GENERAL MOTORS CORP.

NOTE: Carefully guide the transmission tap up/tap down switch electrical harness and connector past the shift control indicator while installing the shift control knob.

Install the shift control knob (1) to the shift control lever.

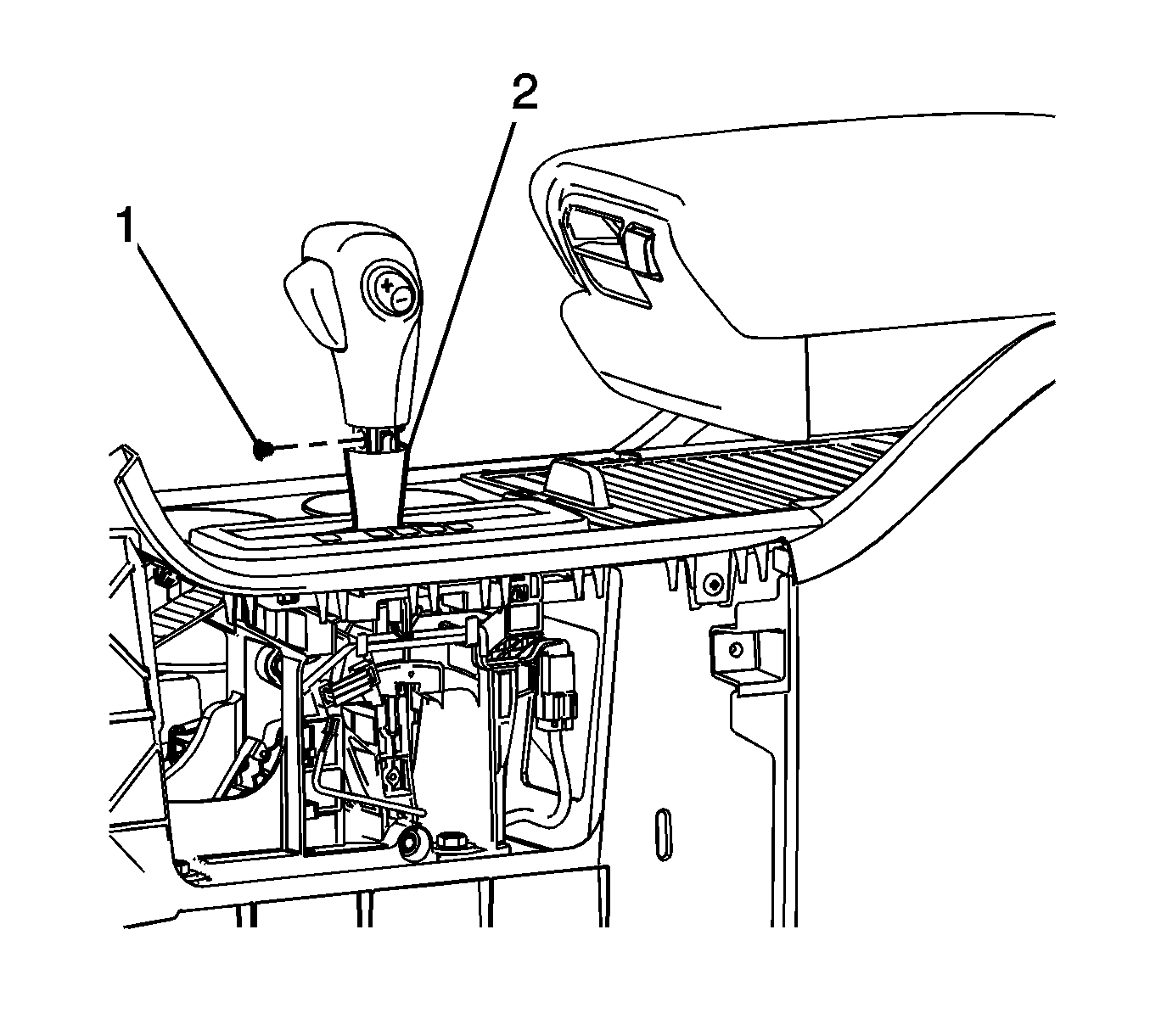

Fig 2: Identifying Shift Control Knob Screw

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the control knob screw (1).
Tighten: Tighten the screw to 4 N.m (35 lb in).
Lift the shift control knob trim ring (2) up to the shift control knob until a click sound is heard indicating the trim ring is secured to the shift knob.

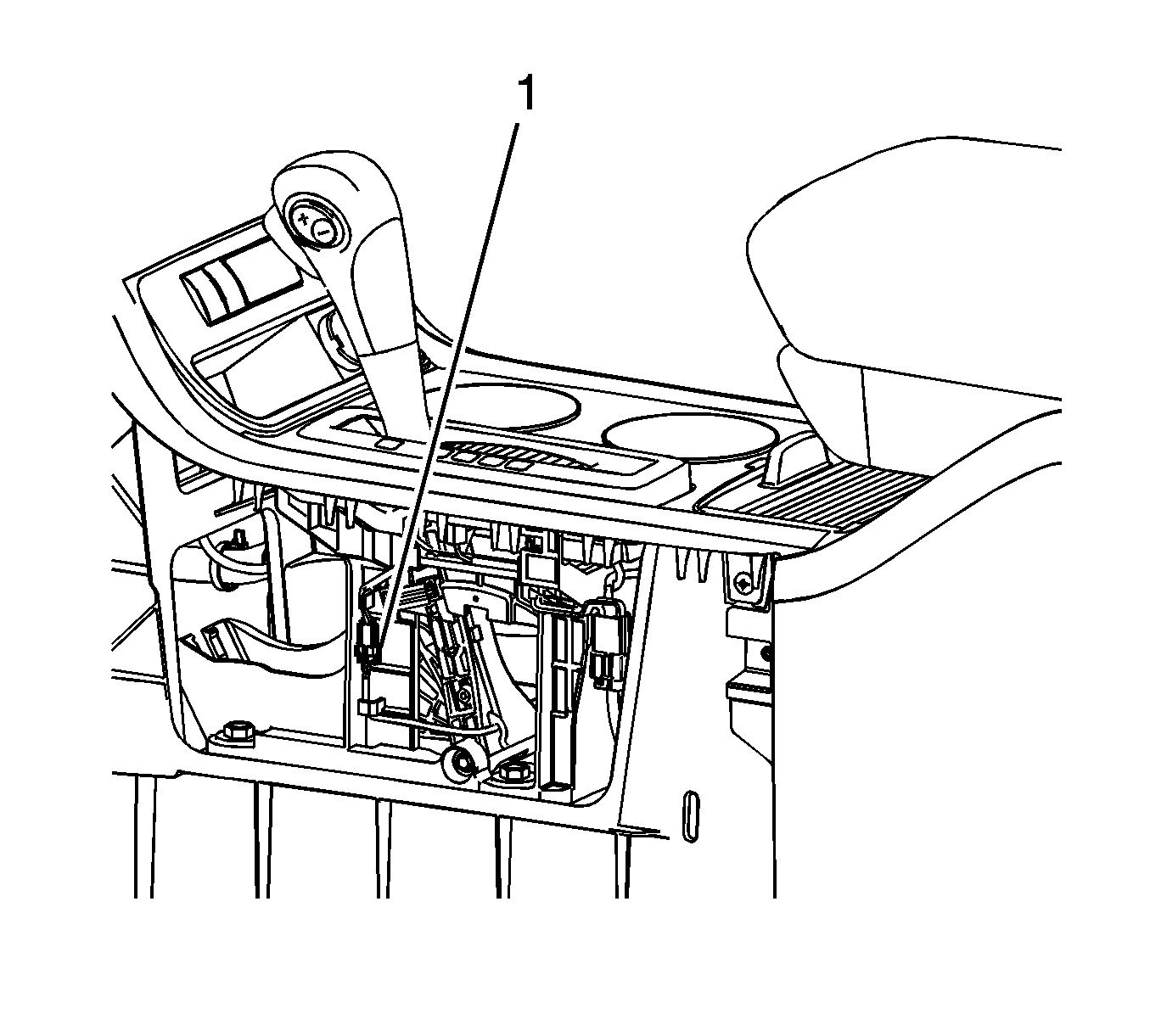

Fig 3: Identifying Transmission Tap Up/Tap Down Switch Electrical Harness

Courtesy of GENERAL MOTORS CORP.

Install the tap up/tap down switch electrical wire harness (1) to the wire harness retaining features on the shift control handle and shift control base.
Place the shift control lever in the PARK position.
Rotate the key to the off position.

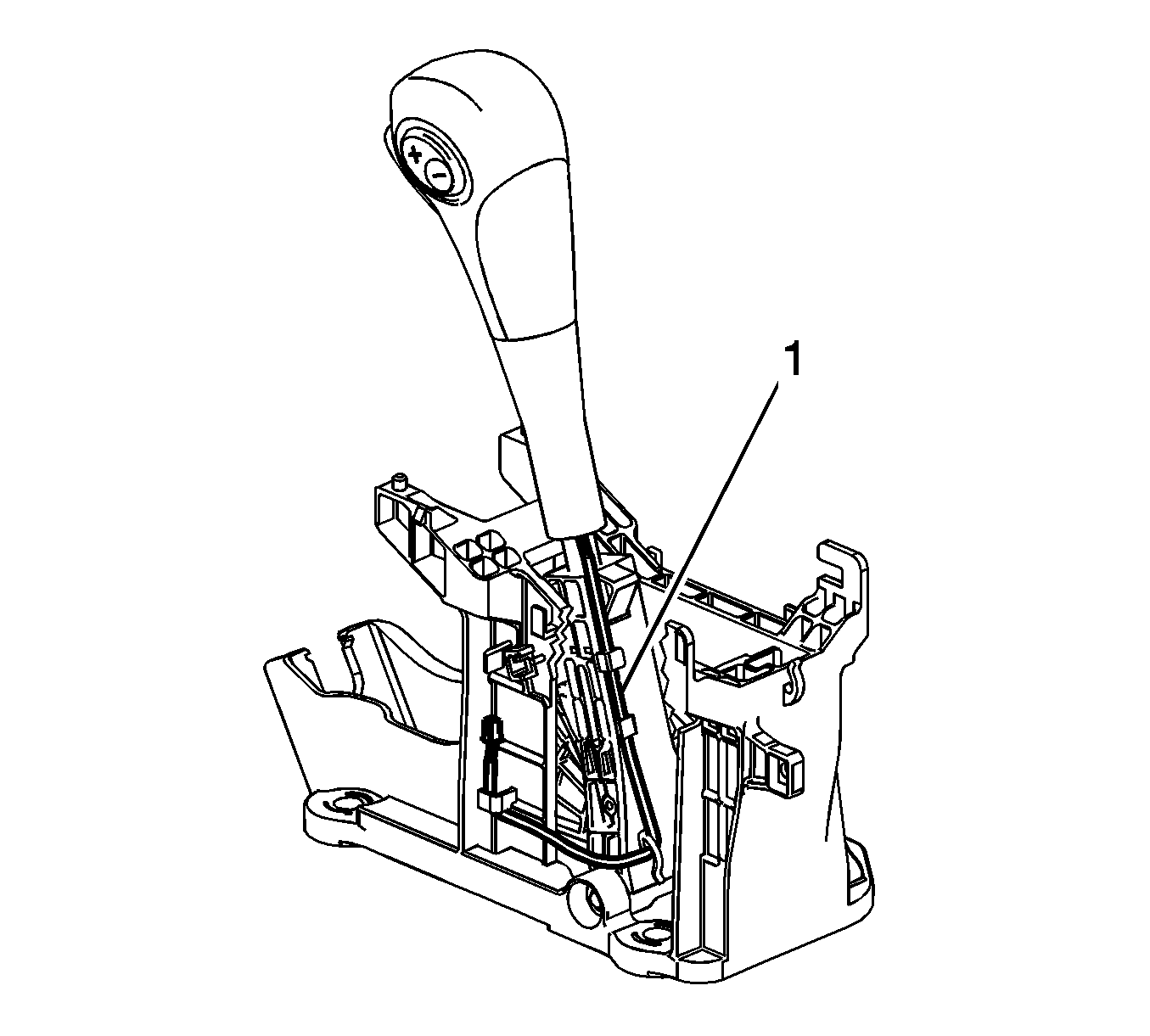

Fig 4: Identifying Transmission Tap Up/Tap Down Switch Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the transmission tap up/tap down switch electrical connector (1).
Check for proper operation of the shift control through all gear ranges.
Install the floor console left extension panel. Refer to Front Floor Console Extension Panel Replacement - Left Side (Acadia) or Front Floor Console Extension Panel Replacement - Left Side (Enclave) or Front Floor Console Extension Panel Replacement - Left Side (OUTLOOK) or Front Floor Console Extension Panel Replacement - Left Side (Traverse) .
Release the parking brake.
