Installation Procedure

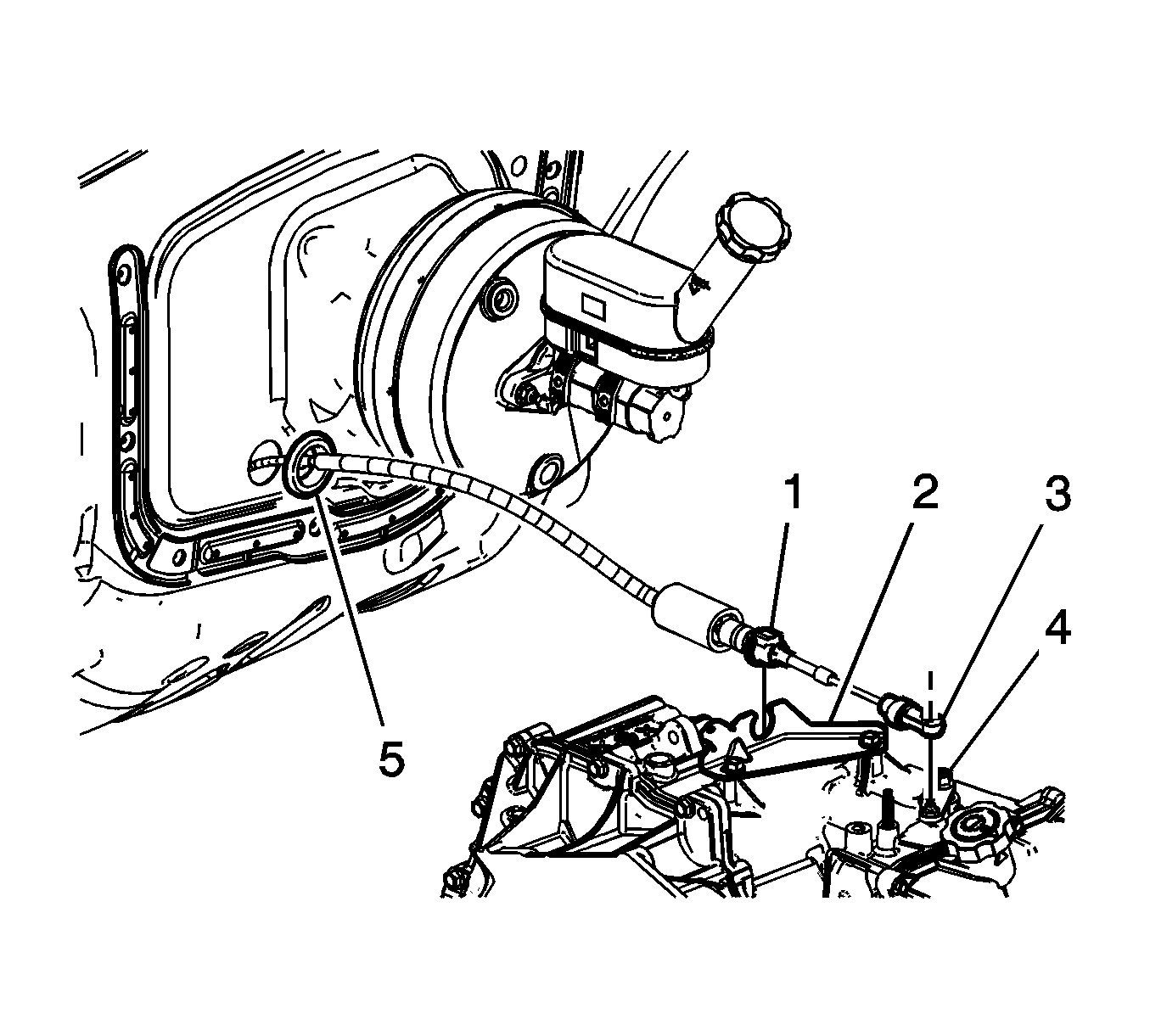

    Fig 1: View Of Transmission Range Selector Lever Cable Terminal & Lever
    GM2001149Courtesy of GENERAL MOTORS CORP.
  1. Install the transmission range selector lever cable to the vehicle.
  2. Install the transmission range selector lever cable grommet (5) to the cowl panel.
  3. Install the transmission range selector lever cable (1) to the cable bracket (2).
  4. Connect the transmission range selector lever cable terminal (3) to the transmission manual shift lever (4).

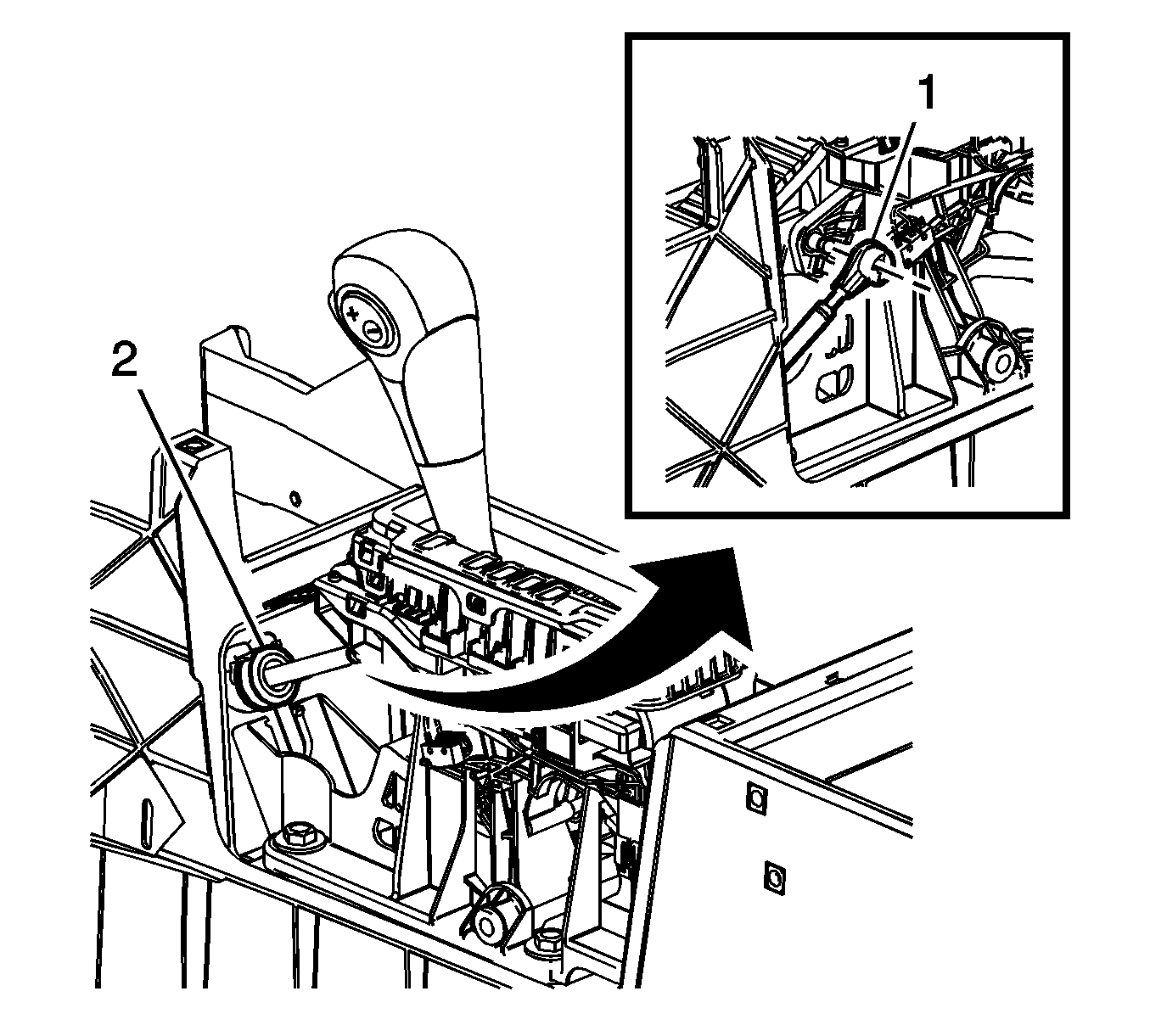

    5. Fig 2: Identifying Transmission Range Selector Lever Cable Terminal And Retainer
    GM1861752Courtesy of GENERAL MOTORS CORP.
  5. Install the transmission range selector lever cable to the transmission control lever base. Insure the cable retainer (2) is fully secured to the transmission control lever base.
  6. Connect the transmission range selector lever cable terminal (1) to the shift lever pin.
  7. Install the floor console left extension panel. Refer to Front Floor Console Extension Panel Replacement - Left Side (Acadia) or Front Floor Console Extension Panel Replacement - Left Side (Enclave) or Front Floor Console Extension Panel Replacement - Left Side (OUTLOOK) or Front Floor Console Extension Panel Replacement - Left Side (Traverse) .
  8. Adjust the automatic transmission range selector lever cable. Refer to Range Selector Lever Cable Adjustment .
  9. Release the parking brake.
