Front Floor Rear Console Front Cover Replacement

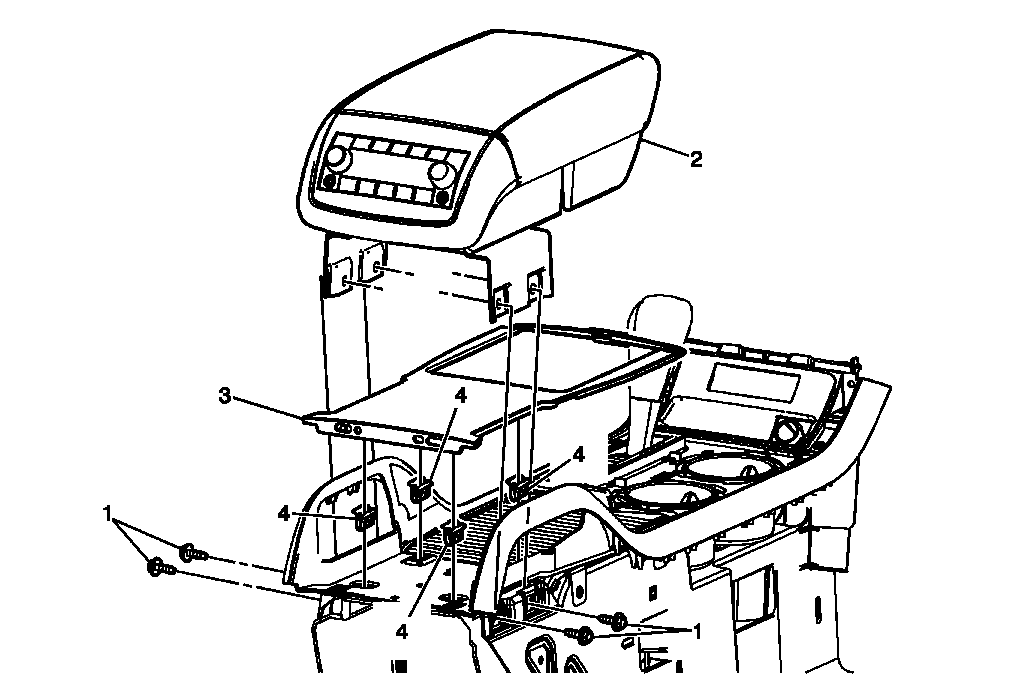

Fig 1: View Of Front Floor Upper Console Front Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement (Acadia) or Front Floor Console Accessory Trim Plate Replacement (Enclave) or Front Floor Console Accessory Trim Plate Replacement (OUTLOOK) or Front Floor Console Accessory Trim Plate Replacement (Traverse) . Remove the right and left front floor console fillers. Refer to Front Floor Console Filler Replacement .
1	Front Floor Console Armrest Assembly Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Front Floor Console Armrest Assembly Procedure: Position the armrest assembly out of the way leaving the electrical harness attached.
3	Front Floor Upper Console Trim Plate Procedure: Lift the rear of the trim plate first, releasing the retainers securing the trip plate to the console assembly.
4	Retainer Clips (Qty: 4)
