Front Floor Console Rear Trim Panel Replacement

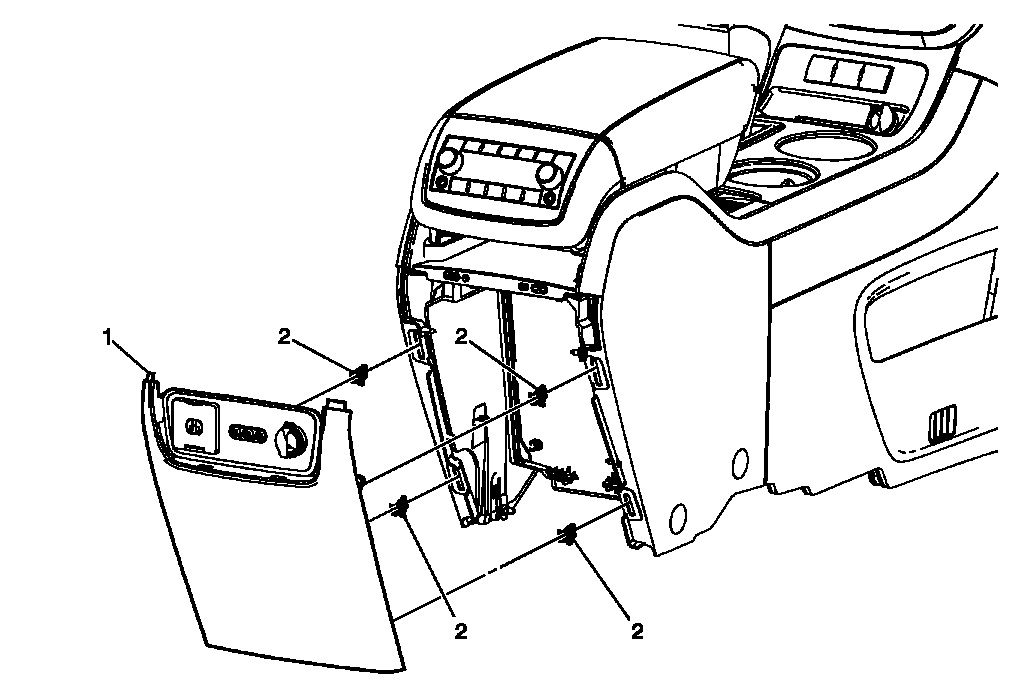

Fig 1: View Of Front Floor Console Rear Trim Panel
GM2074422Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the floor console accessory trim plate applique. Refer to Front Floor Console Accessory Trim Plate Applique Replacement .
1 Front Floor Console Rear Trim Plate

Procedure

  1. Disconnect the electrical connections.
  2. When replacing the front floor console rear trim plate, transfer all necessary components.
2 Retainer Clip (Qty: 4)
