Rear Output Shaft Seal Replacement

Rear Output Shaft Seal Replacement

Tools Required

J 35582 Oil Pump Seal Installer

Removal Procedure

1. Remove the rear propeller shaft. Refer to One-Piece Propeller Shaft Replacement (One-Piece Propeller Shaft Replacement) .





Notice: Refer to Transfer Case Seal Removal Notice (Service Precautions) .

2. Using a flat-bladed screwdriver and a hammer, remove the rear output shaft seal from the transfer case.

Installation Procedure

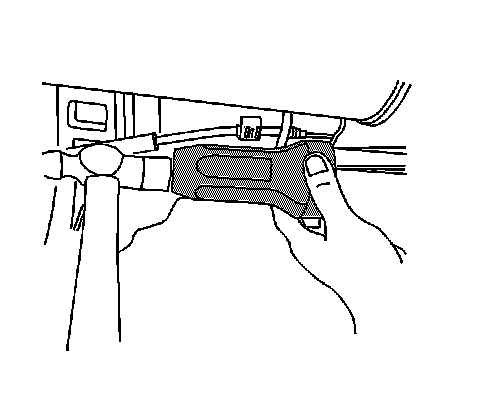

1. Using the J 35582 and a hammer, install the rear output shaft seal into the transfer case.
2. Install the rear propeller shaft. Refer to One-Piece Propeller Shaft Replacement (One-Piece Propeller Shaft Replacement) .
3. Inspect the transfer case fluid level. Refer to Transfer Case Fluid Replacement (Transfer Case Fluid Replacement) .
