Transmission Case Assemble

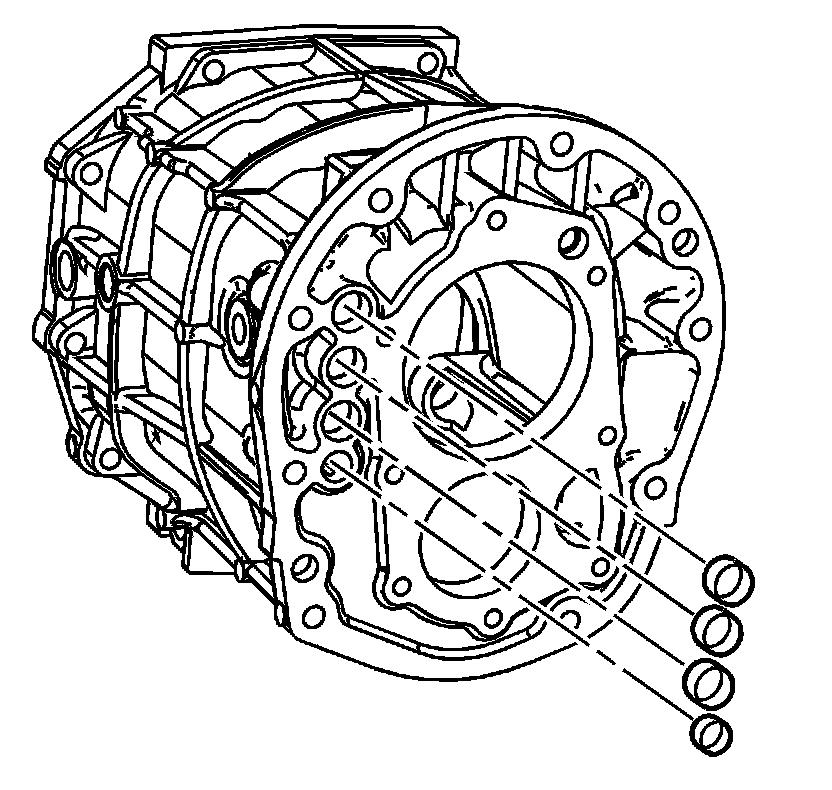

1. If removed, apply threadlocker GM P/N 12345382 (Canadian P/N 10953489) to the shift shaft plugs.
2. Using a suitable driver, install the shift shaft plugs into the transmission front case.





Notice: Refer to Fastener Notice (Fastener Notice) .

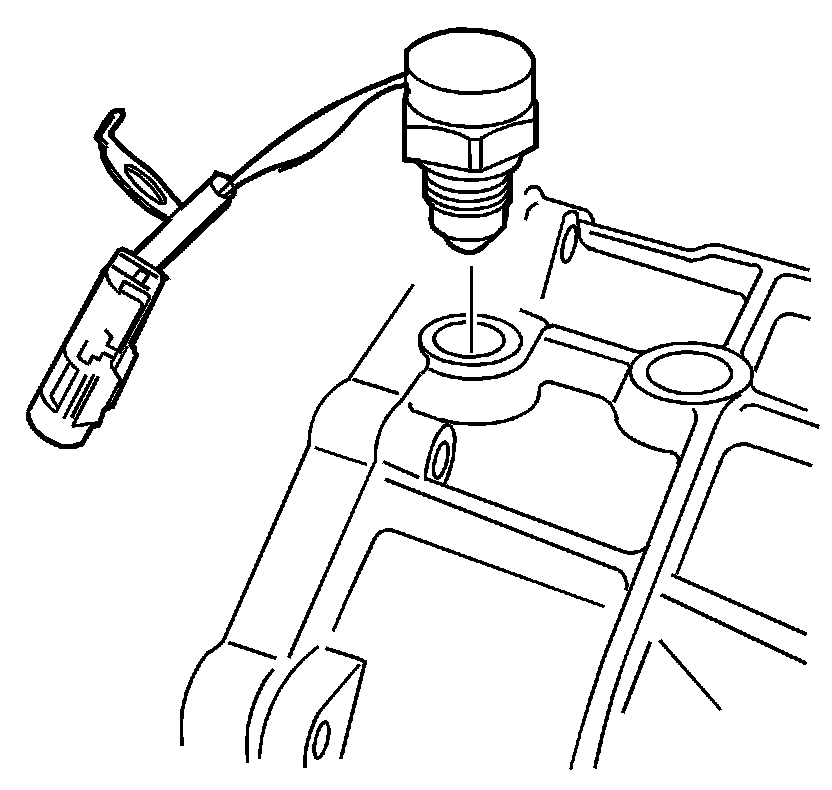

3. Install the backup lamp switch, with the gasket, into the transmission case.

Tighten the backup lamp switch to 44 N.m (32 lb ft).
