Axle Shaft Assembly: Diagrams

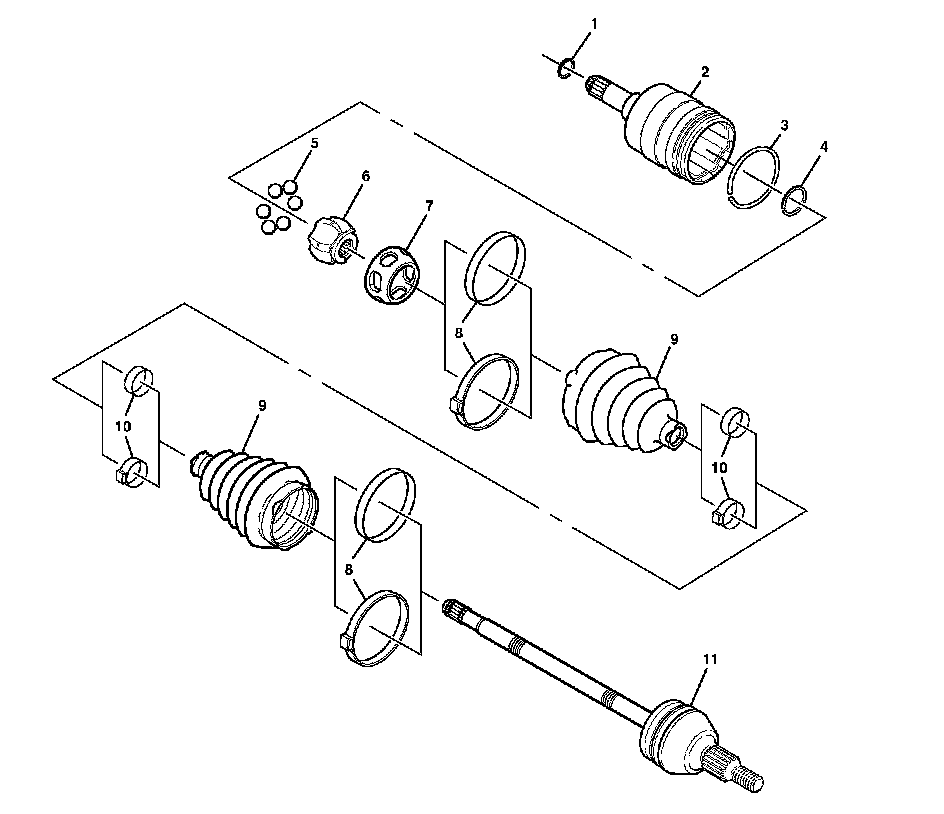

Wheel Drive Shafts Disassembled Views

Wheel Drive Shafts Disassembled Views:

1 - Joint Retaining Ring
2 - D/O Joint Housing
3 - D/O Ball Retaining Ring
4 - Small Retaining Ring
5 - D/O Balls
6 - Inner Race
7 - Cage
8 - Large Retaining Clamp
9 - Inner Seal
10 - Small Retaining Clamp
11 - Drive Shaft Bar
