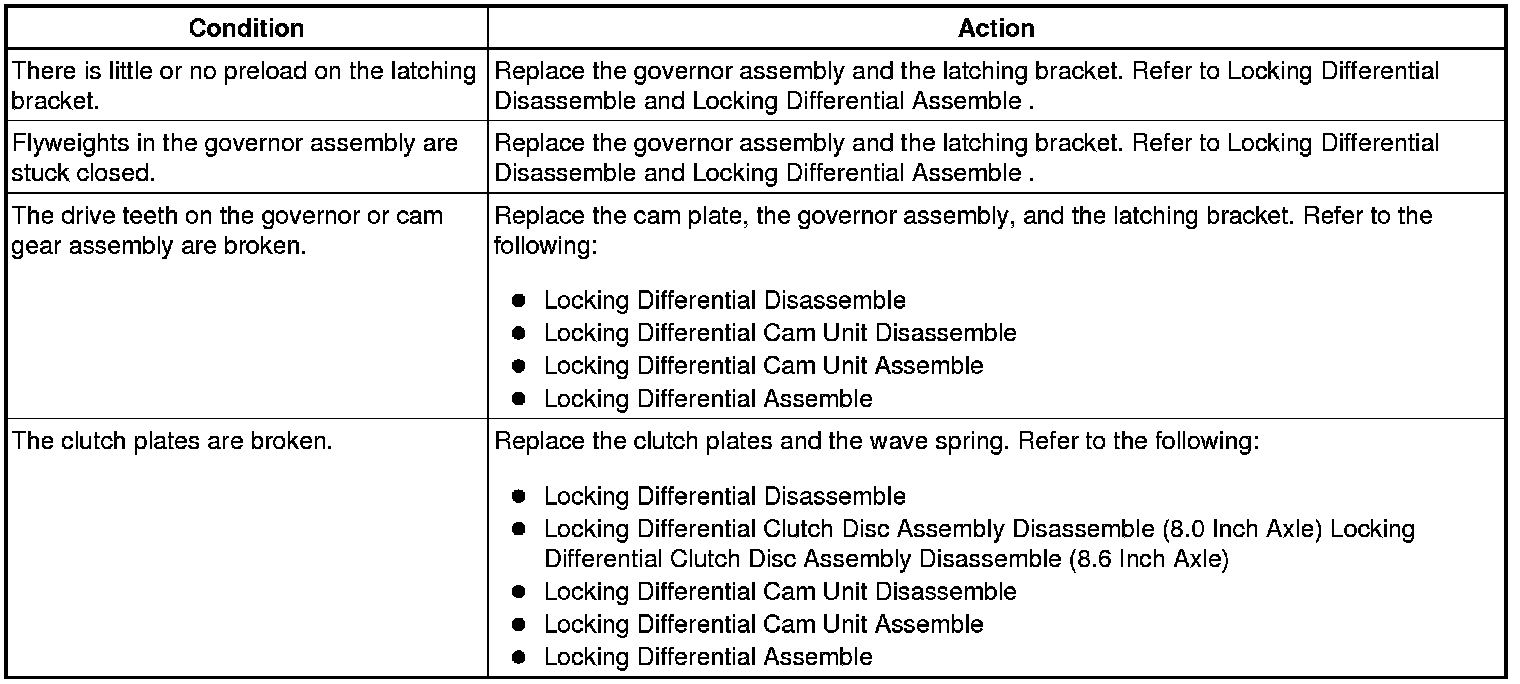

Home >> GMC >> 2008 >> Canyon 4WD L4-2.9L >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom - Locking/Limited Slip >> Locking Rear Axle Does Not Lock
