Transmission Mount Replacement

Transmission Mount Replacement (4WD)

Removal Procedure

1. Remove the transmission support. Refer to Transmission Support Crossmember Replacement (4WD) (Transmission Support Crossmember Replacement (4WD)) .

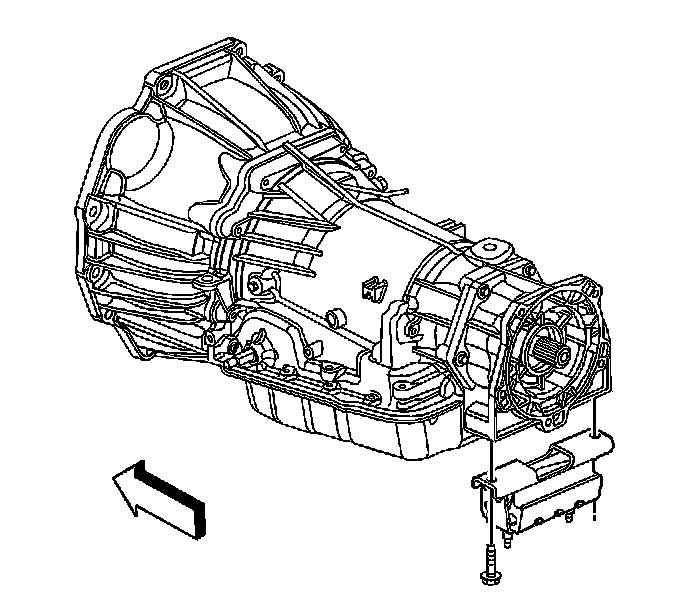

2. Remove the transmission mount bolts.
3. Remove the transmission mount from the vehicle.

Installation Procedure




1. Install the transmission mount to the vehicle.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the bolts.

Tighten the bolts to 55 N.m (41 lb ft).

3. Install the transmission support. Refer to Transmission Support Crossmember Replacement (4WD) (Transmission Support Crossmember Replacement (4WD)) .
