Connector Views



Component Connector End Views

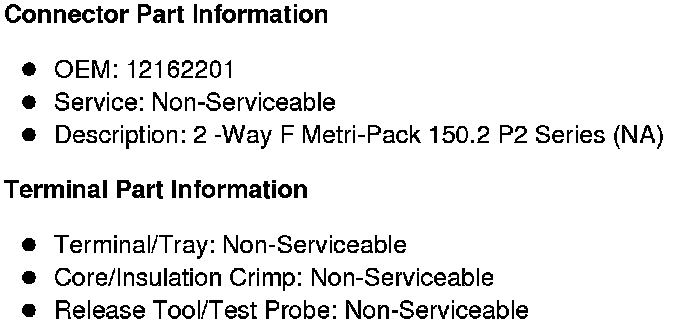

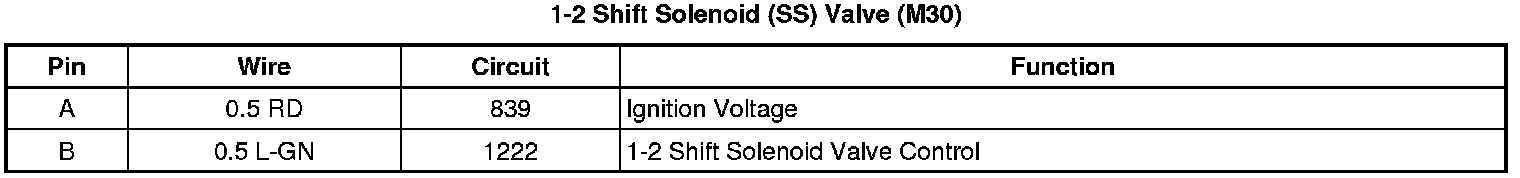

1-2 Shift Solenoid (SS) Valve (M30)

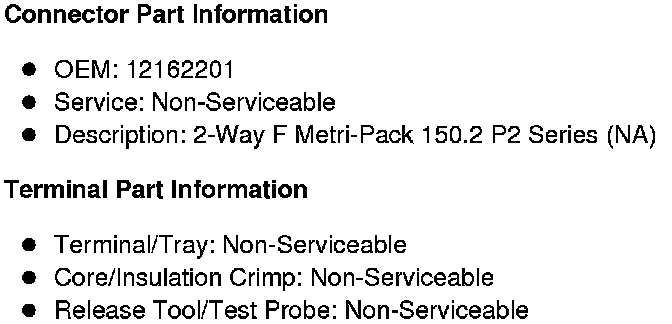

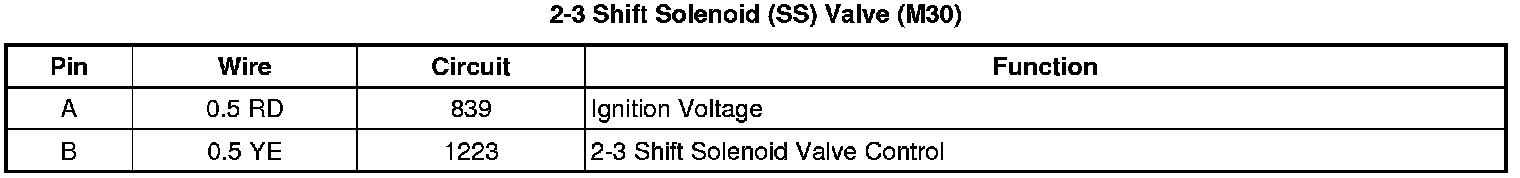

2-3 Shift Solenoid (SS) Valve (M30)

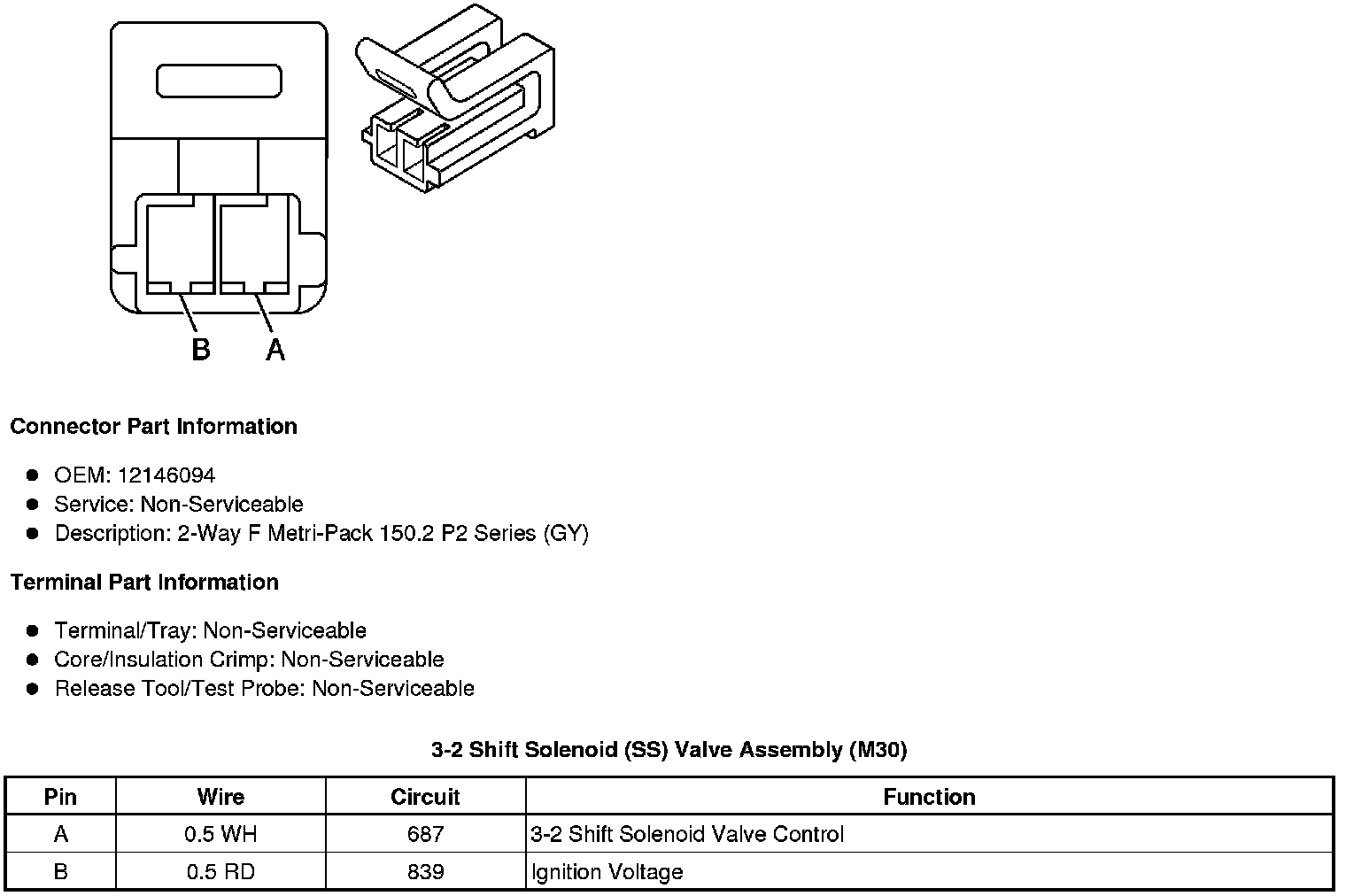

3-2 Shift Solenoid (SS) Valve Assembly (M30)
