Torsion Bar Anchor Replacement

Torsion Bar Anchor Replacement

Removal Procedure

1. Remove the torsion bar. Refer to Torsion Bar Replacement (Torsion Bar Replacement) .

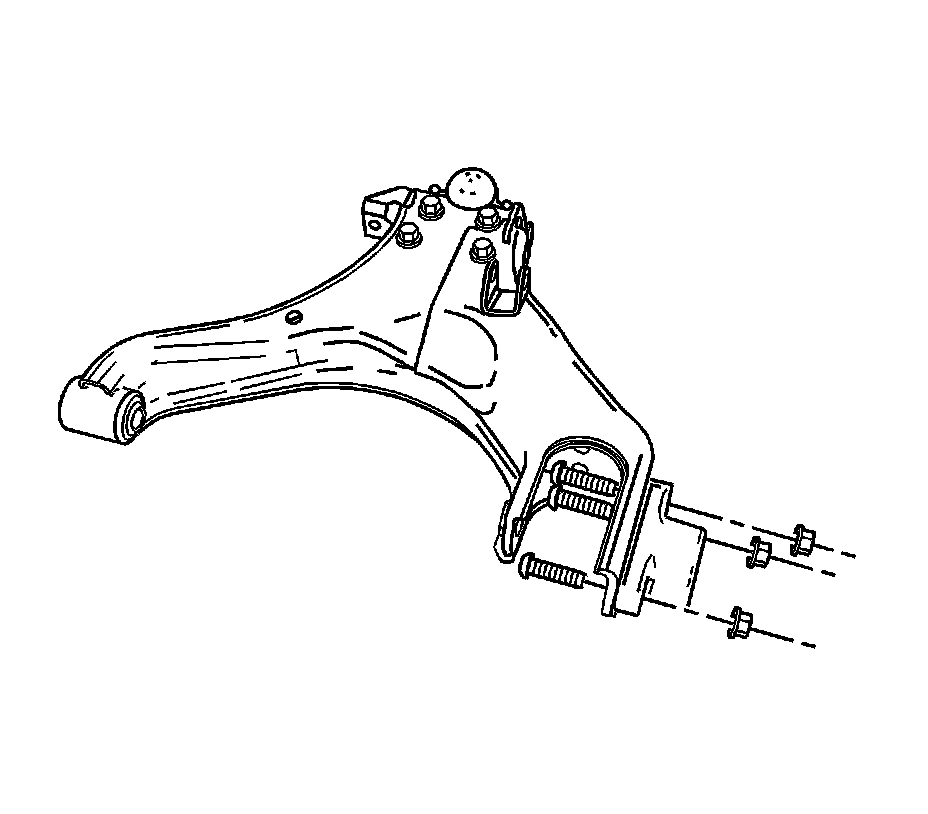

2. Remove the nuts and the bolts from the lower control arm.

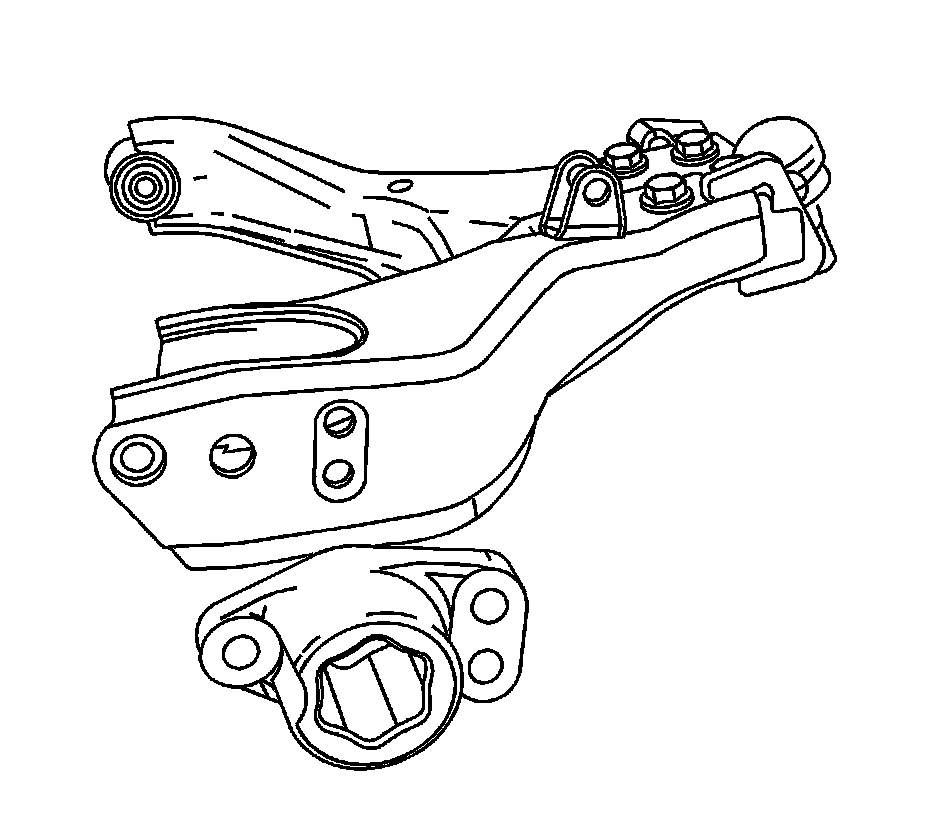

3. Remove the torsion bar anchor.

Installation Procedure




1. Install the torsion bar anchor.

Notice: Refer to Fastener Notice (Fastener Notice) .




2. Install the nuts and the bolts to the lower control arm.

Tighten the nuts to 80 N.m (59 lb ft).

3. Install the torsion bar. Refer to Torsion Bar Replacement (Torsion Bar Replacement) .
