Spring Bumper Replacement (4WD, 2WD Z71)



Spring Bumper Replacement (4WD, 2WD Z71)

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) .

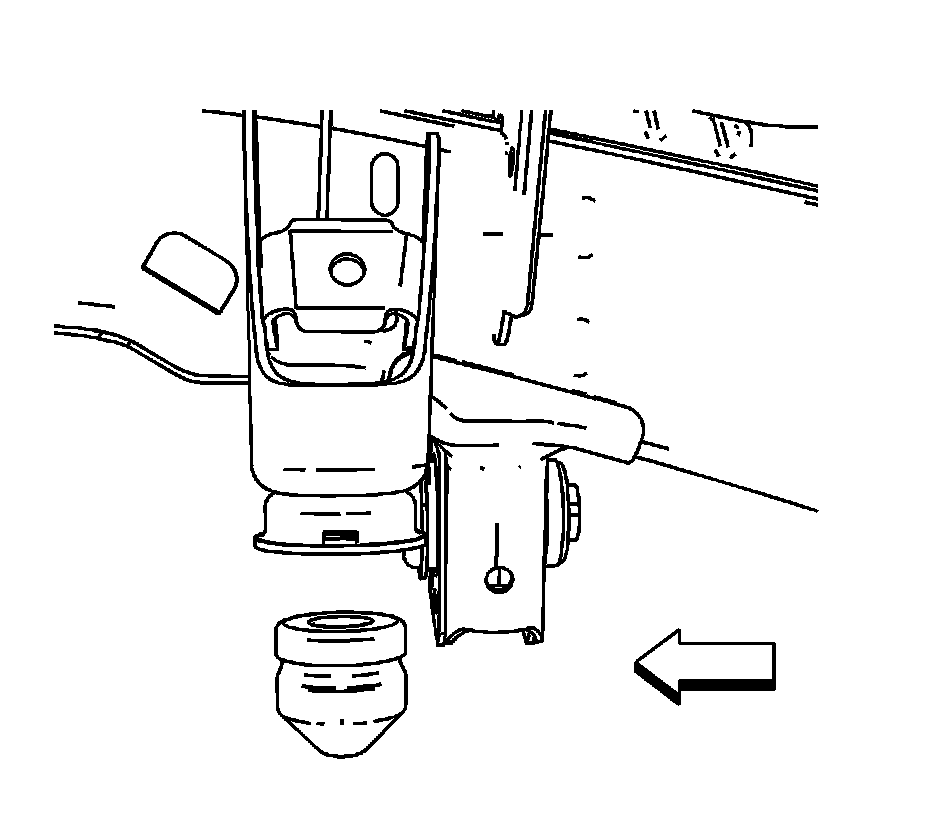

2. Remove the jounce bumper.

Installation Procedure




1. Install the jounce bumper.
2. Lower the vehicle.
