Home >> GMC >> 2008 >> Canyon 4WD L4-2.9L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X300 - X399 >> X312

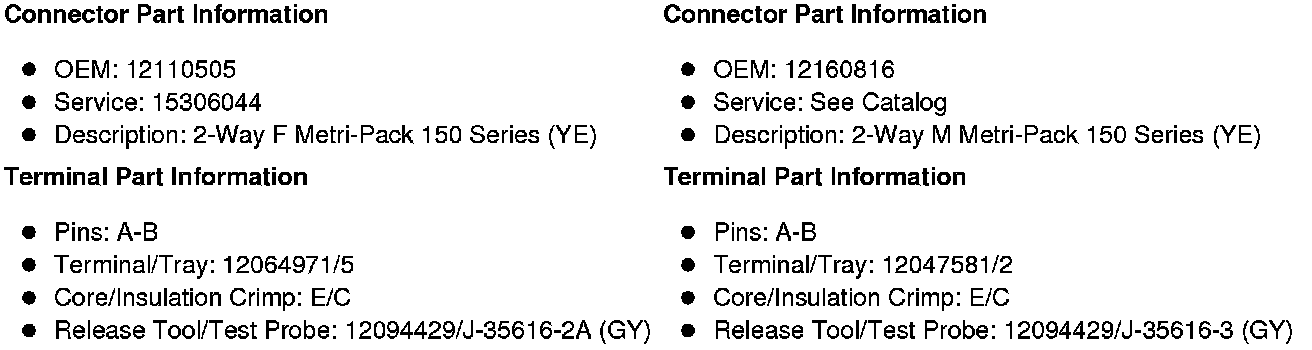

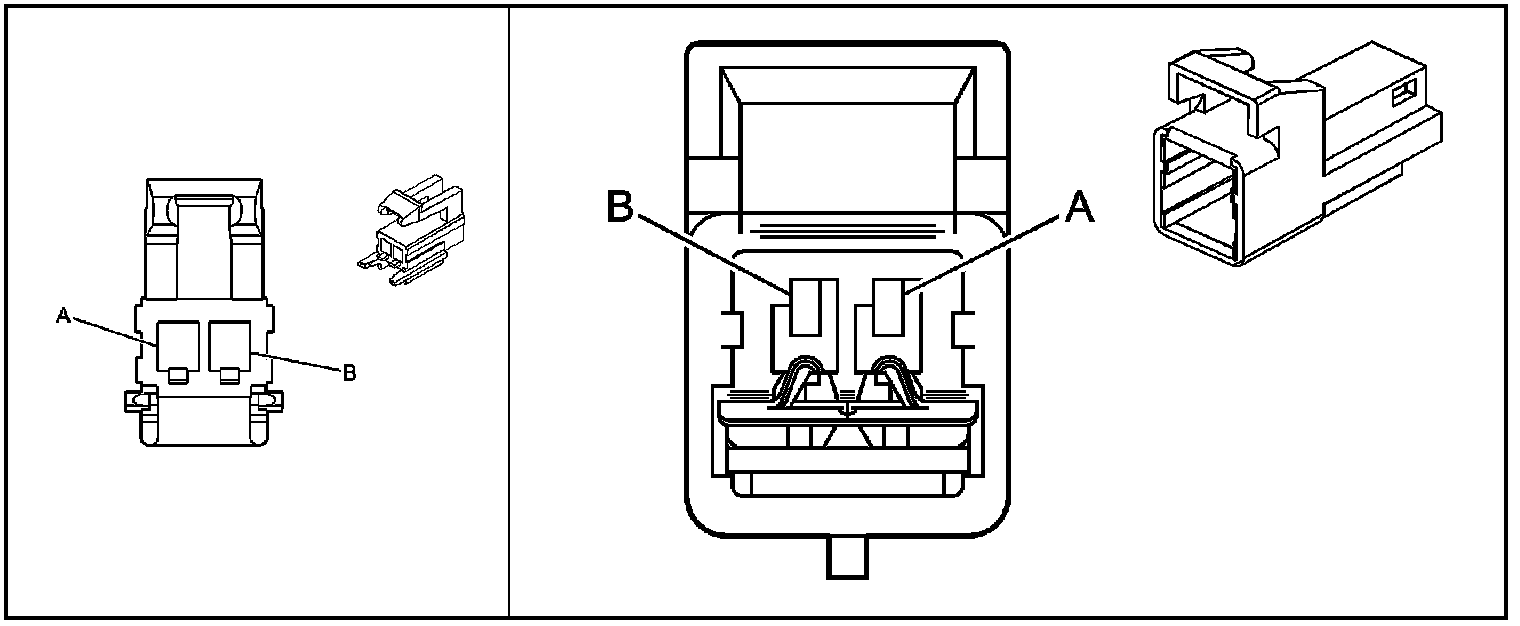

X312

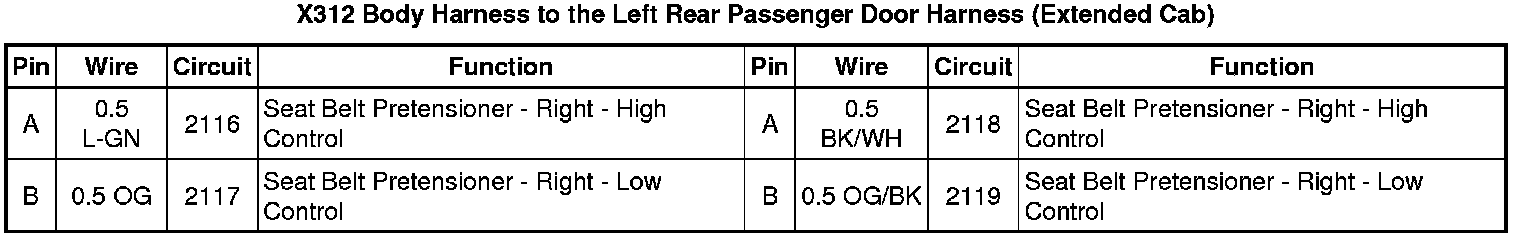

X312 Body Harness to the Left Rear Passenger Door Harness (Extended Cab)
