Power Distribution Diagram 3
Power Distribution Diagram 3
Power Distribution Schematics

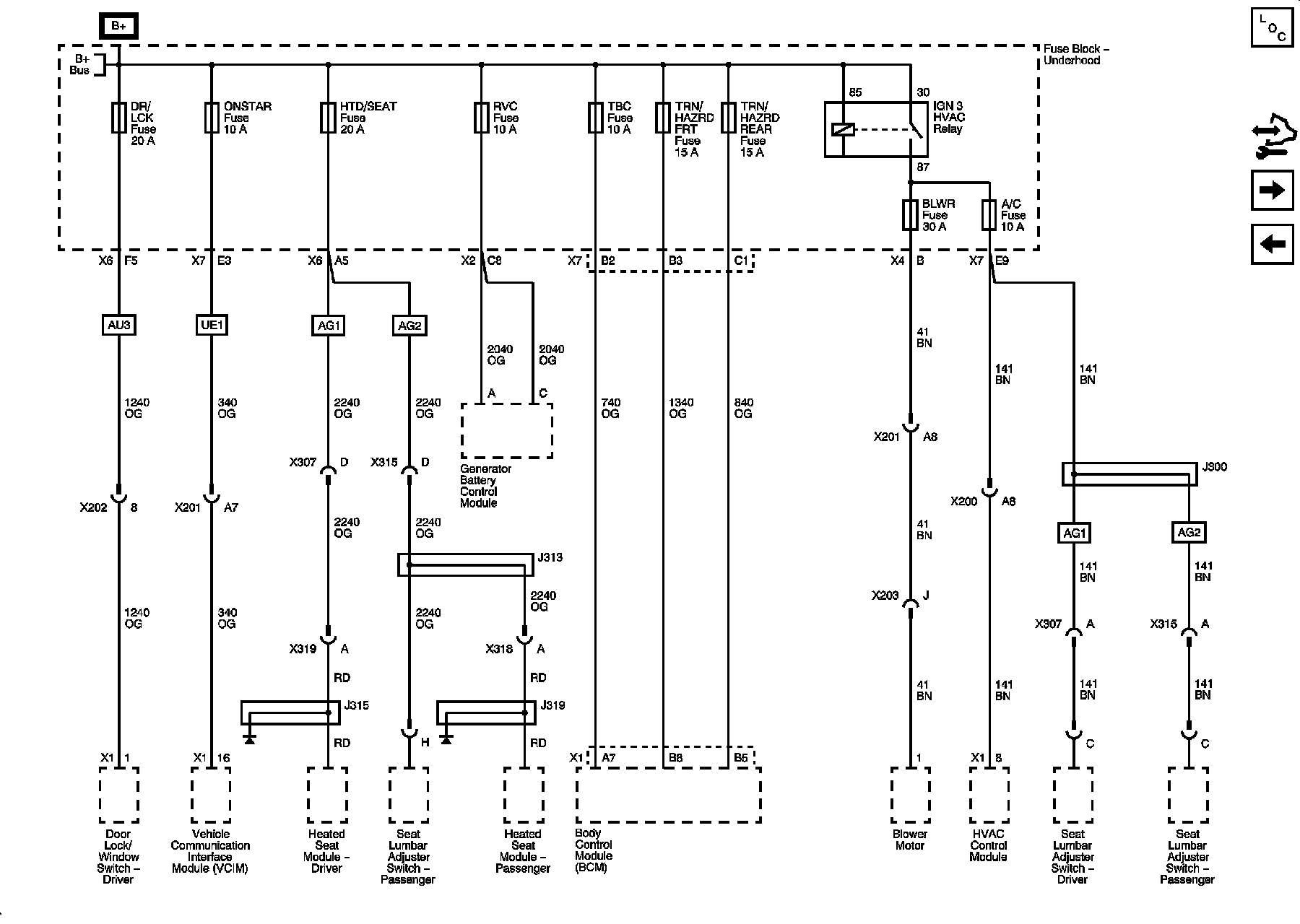

A/C, BLWR, DR/LCK, HTD/SEAT, ONSTAR, RVC, TBC, TRN/HAZRD FRT, and TRN/HAZRD REAR Fuses
Power Distribution Diagram 3:
