Electrical Diagrams



Starting and Charging Schematics

Starting System - MA5





Starting System - M30

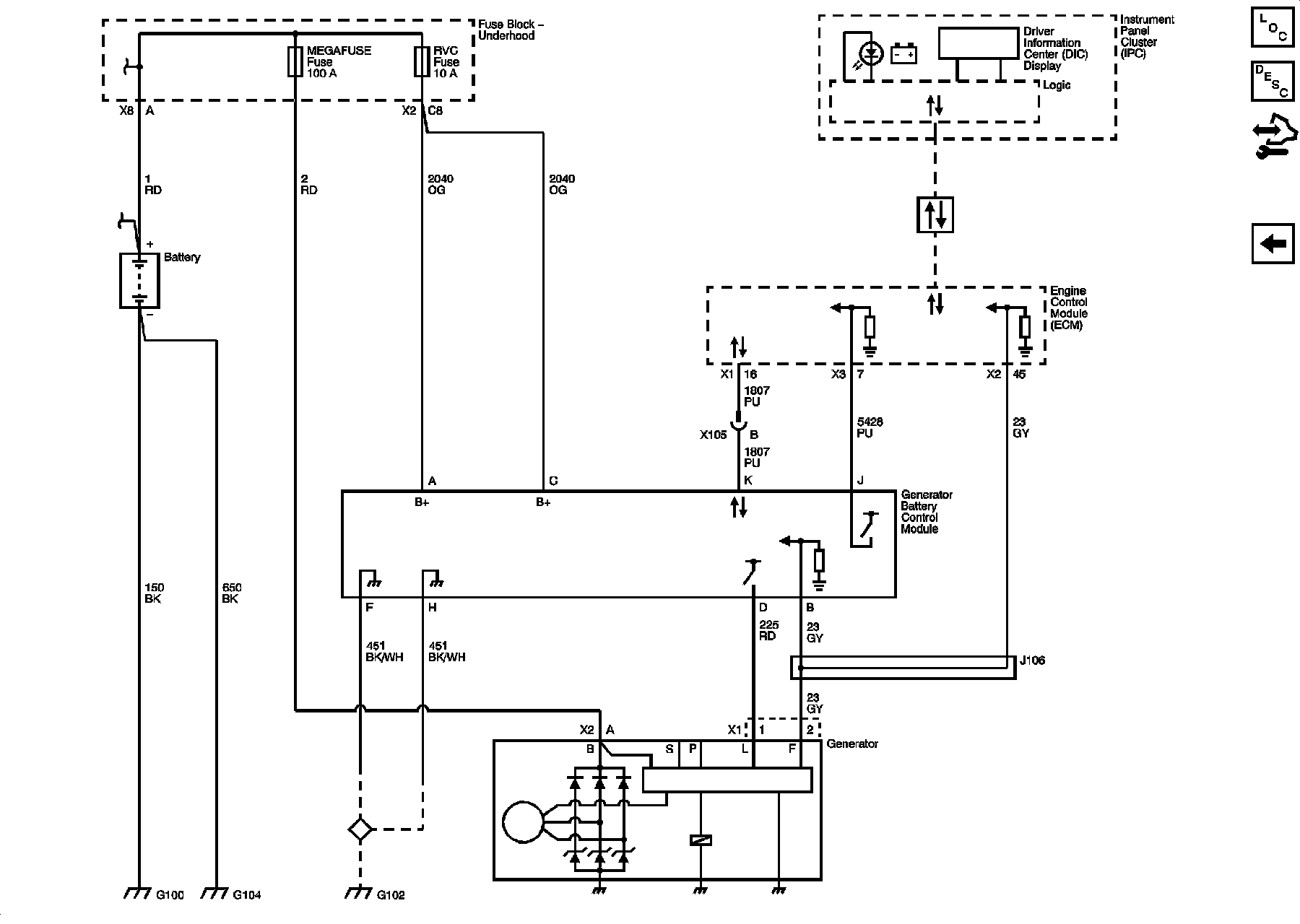

Charging System
