Trailer Connector/Provision Schematics

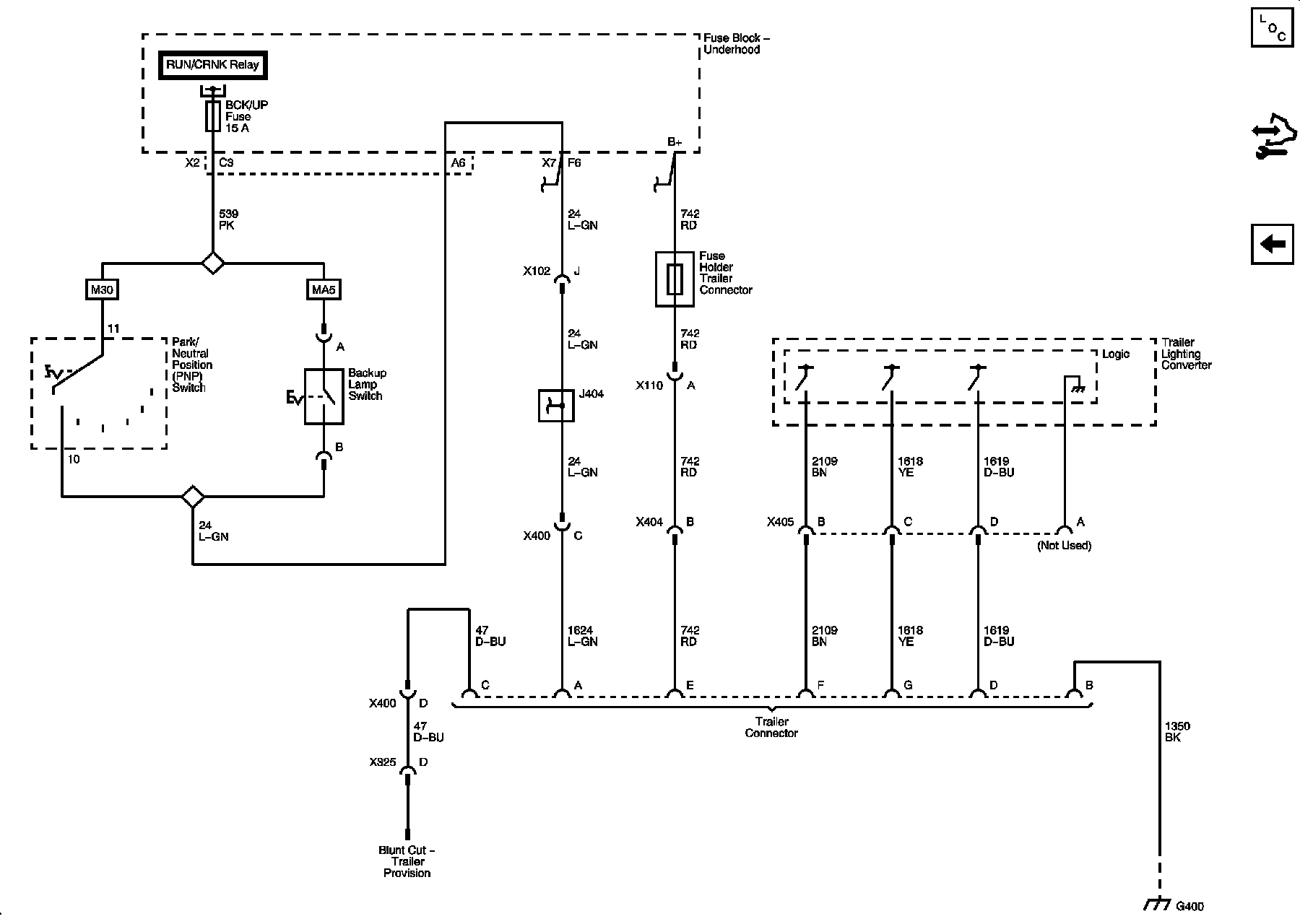

Trailer Wiring with UY7 - 1 of 2

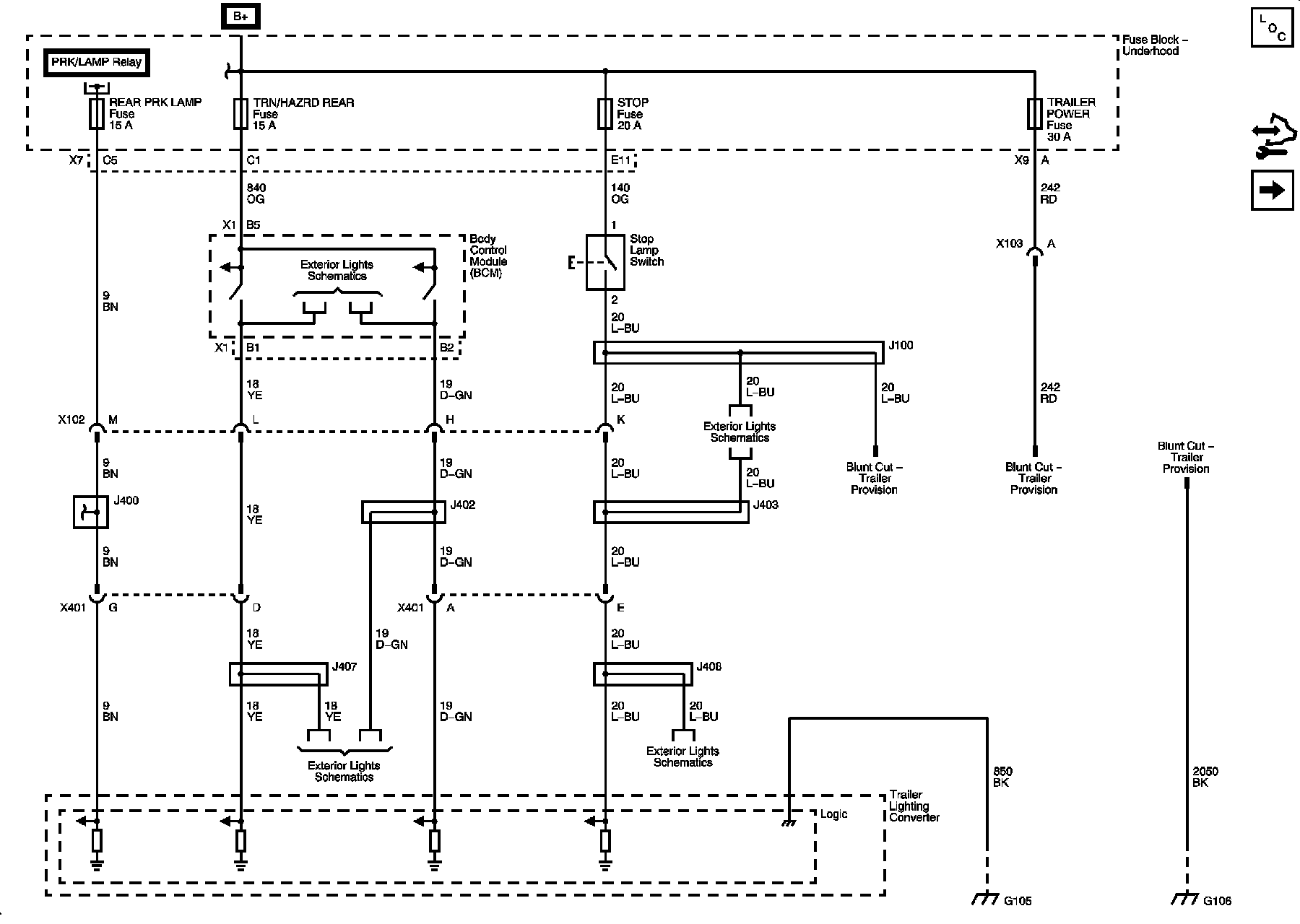

Trailer Wiring with UY7 - 2 of 2
