GMC
>>
2008
>>
Canyon 4WD L4-2.9L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Power Distribution Diagram 7
Power Distribution Diagram 7
Power Distribution Schematics

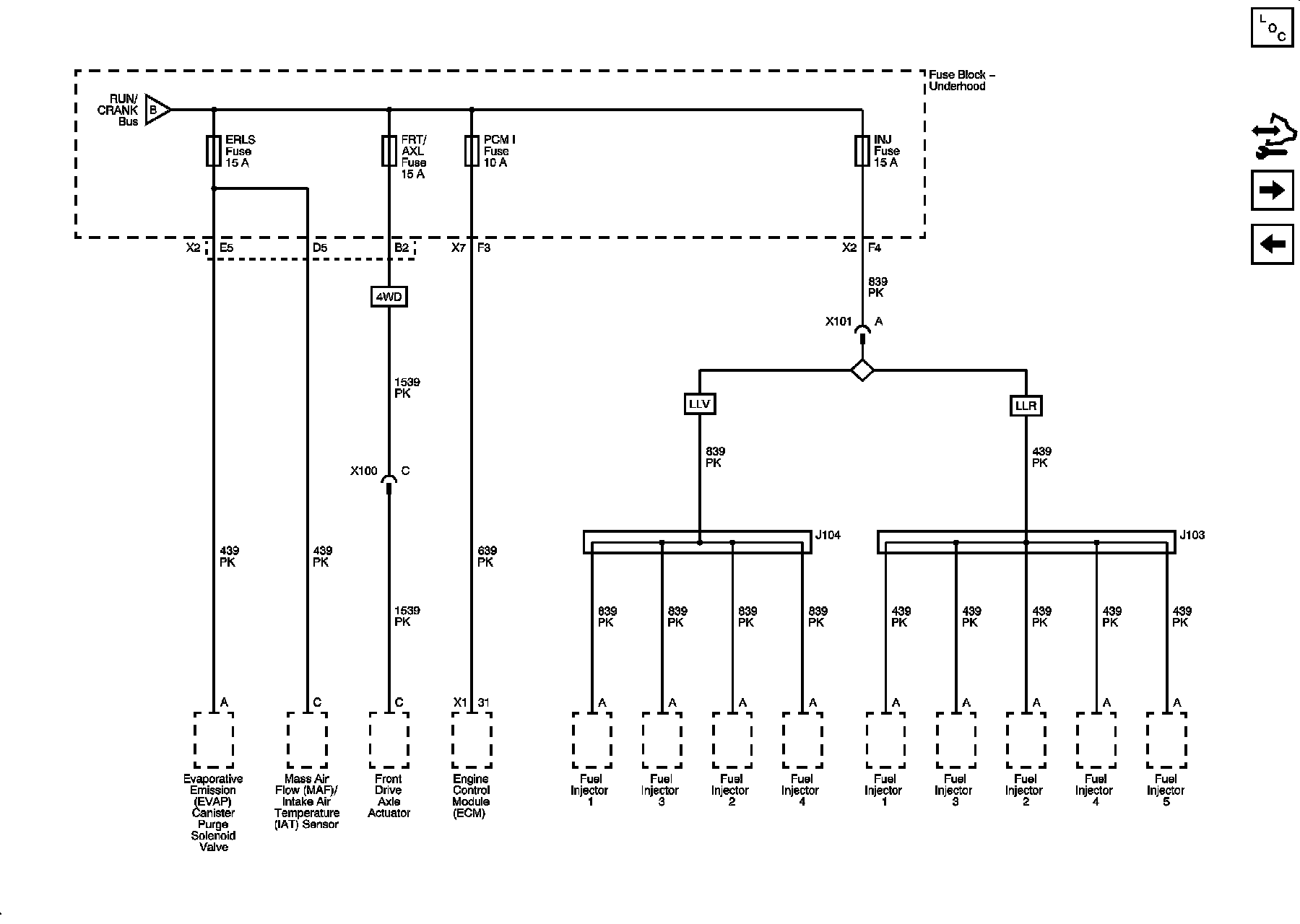

RUN/CRANK RELAY BUS - 3 of 3, ERLS, FRT AXL, INJ, and PCM I Fuses
Power Distribution Diagram 7:
