Luggage Compartment/Rear of Vehicle Component Views

Luggage Compartment/Rear of Vehicle Component Views

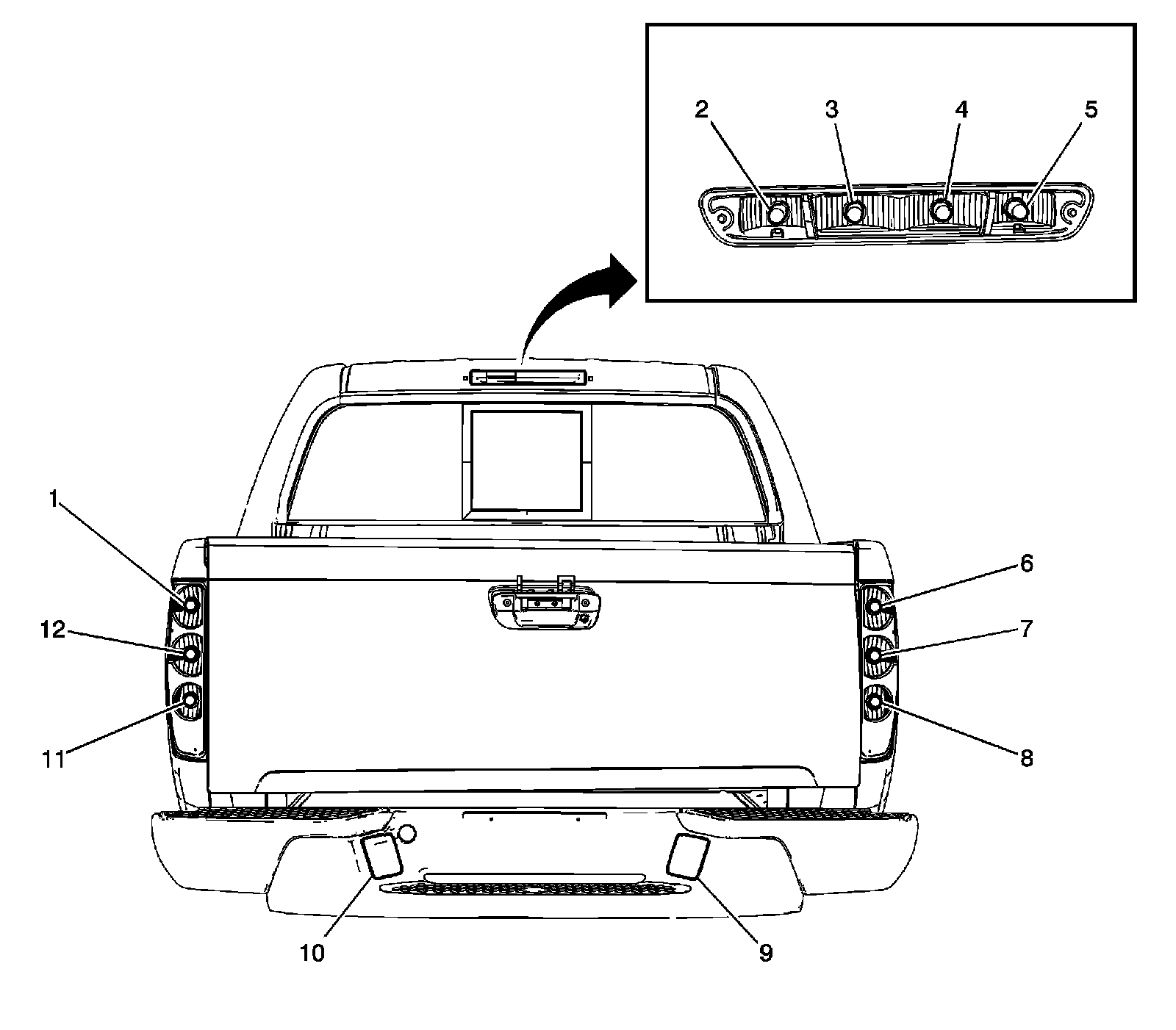

Rear of the Vehicle Components




1 - Stop Lamp - Left Rear
2 - Cargo Lamp - Left
3 - Center High Mounted Stop Lamp (CHMSL) - Left
4 - Center High Mounted Stop Lamp (CHMSL) - Right
5 - Cargo Lamp - Right
6 - Stop Lamp - Right Rear
7 - Turn Signal Lamp - Right Rear
8 - Backup Lamp - Right
9 - License Lamp - Right
10 - License Lamp - Left
11 - Backup Lamp - Left
12 - Turn Signal Lamp - Left Rear
