Connector Views



Component Connector End Views

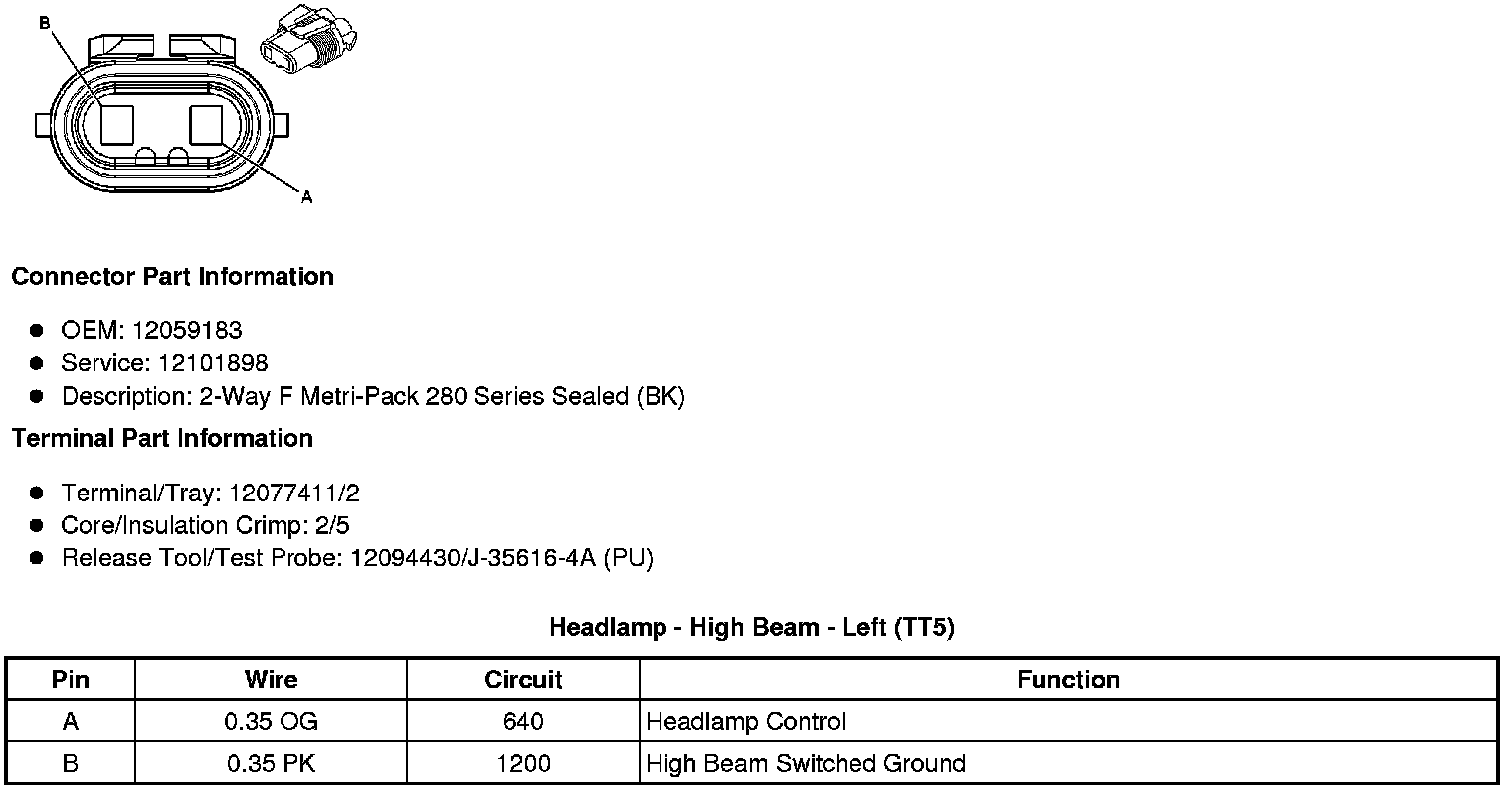

Headlamp - High Beam - Left (TT5)





Headlamp - High Beam - Right (TT5)

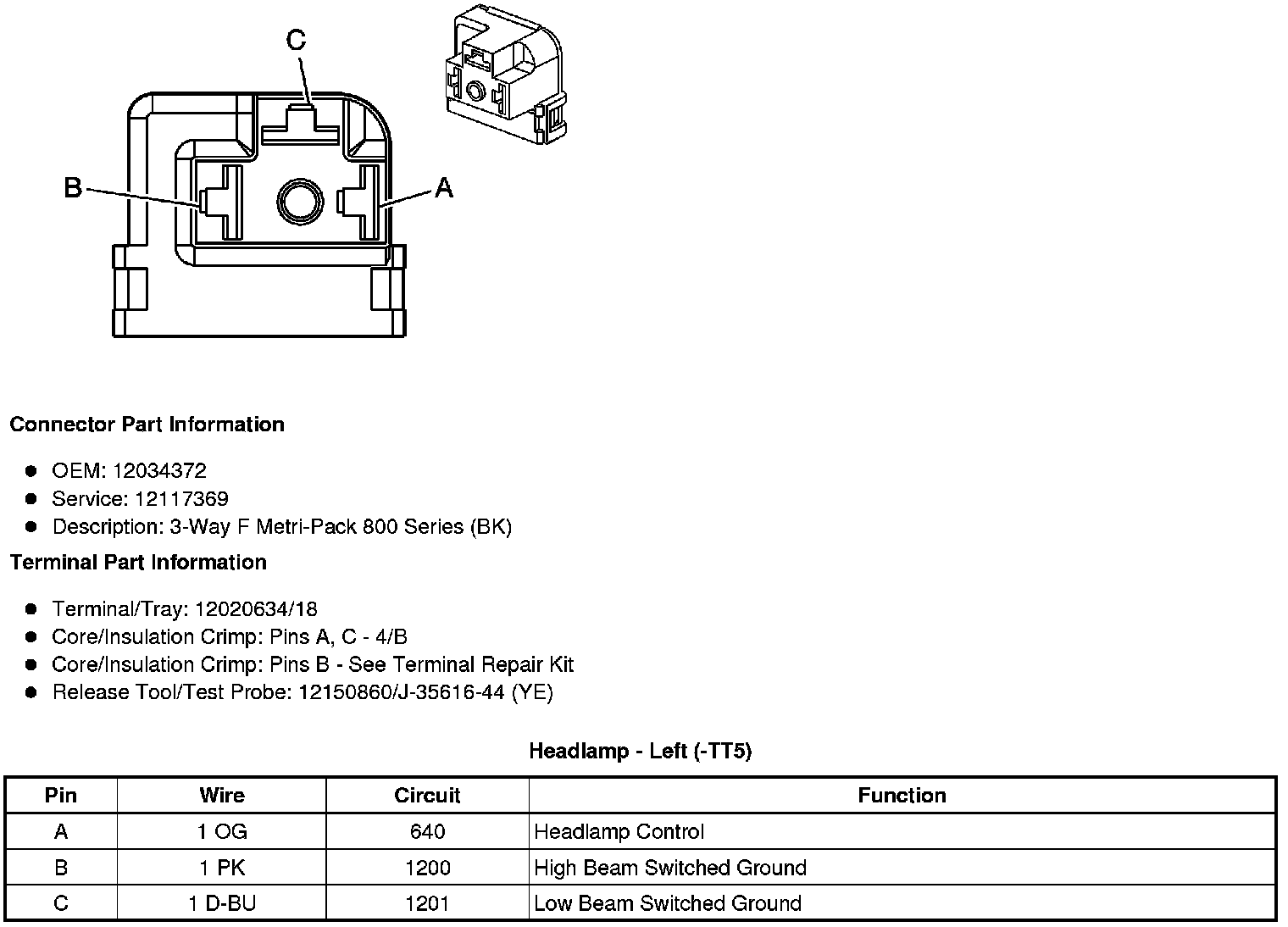

Headlamp - Left (-TT5)

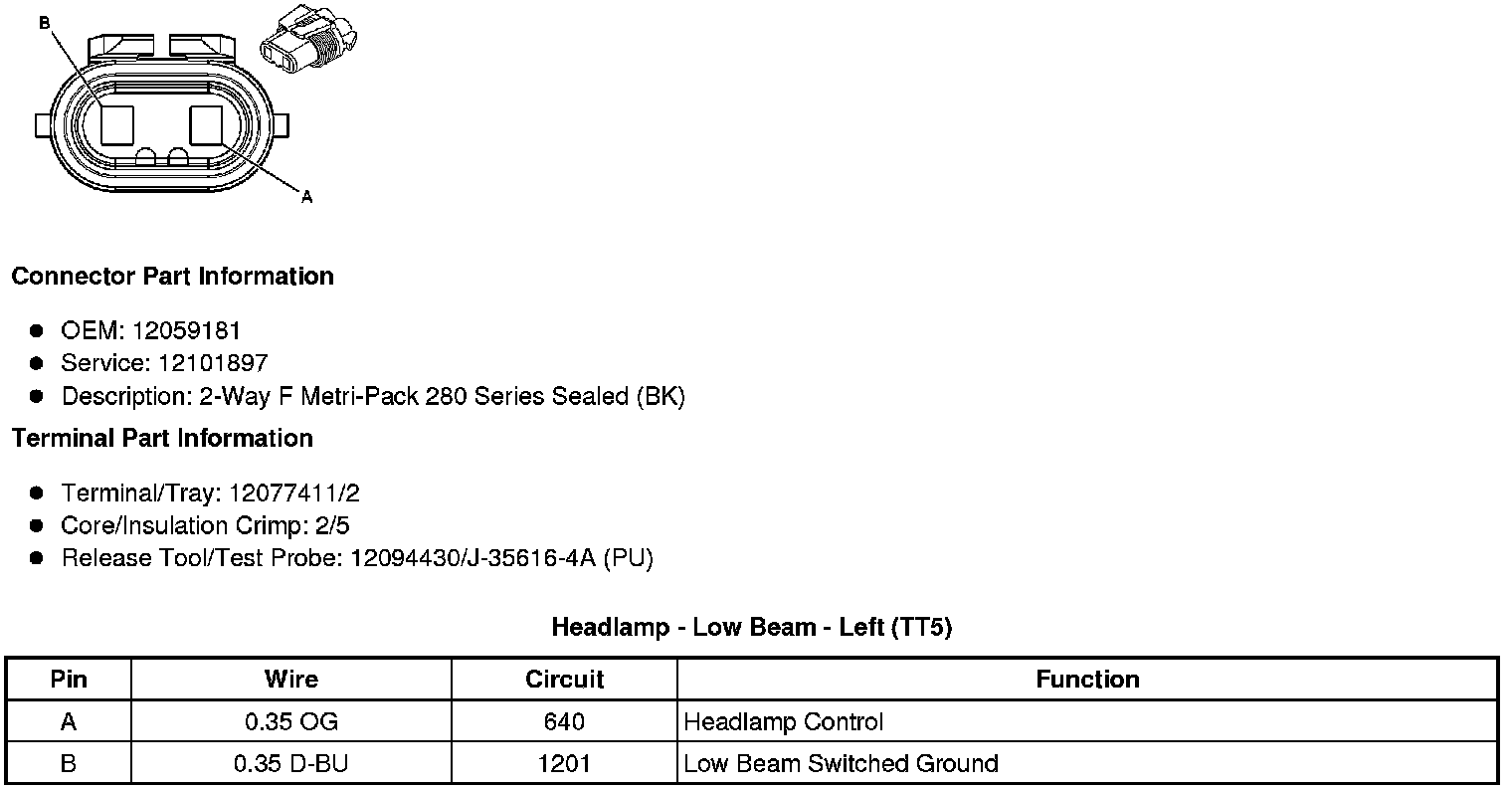

Headlamp - Low Beam - Left (TT5)

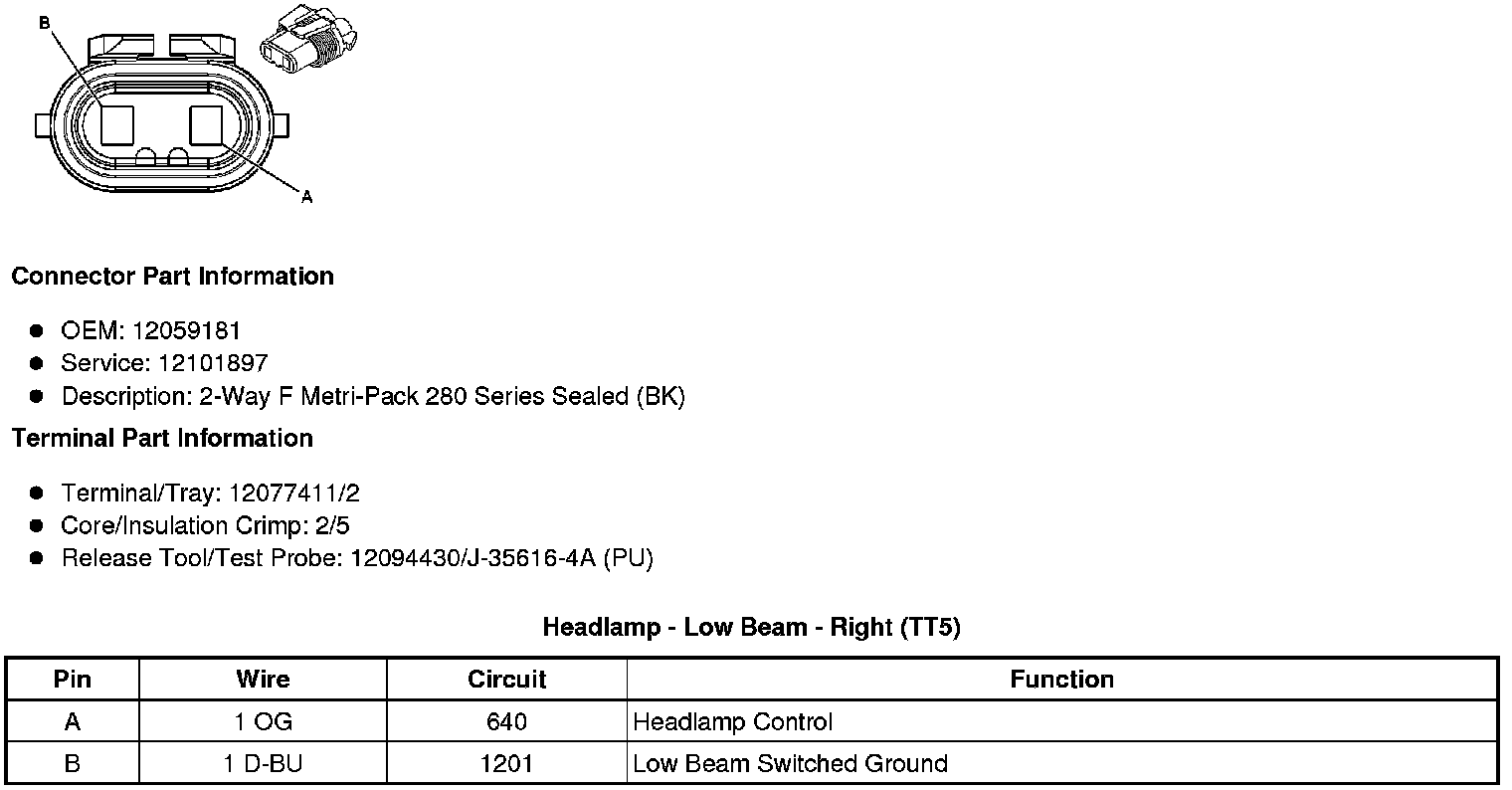

Headlamp - Low Beam - Right (TT5)





Headlamp - Right (-TT5)
