Interior Lights Dimming Diagrams



Interior Lights Dimming Schematics

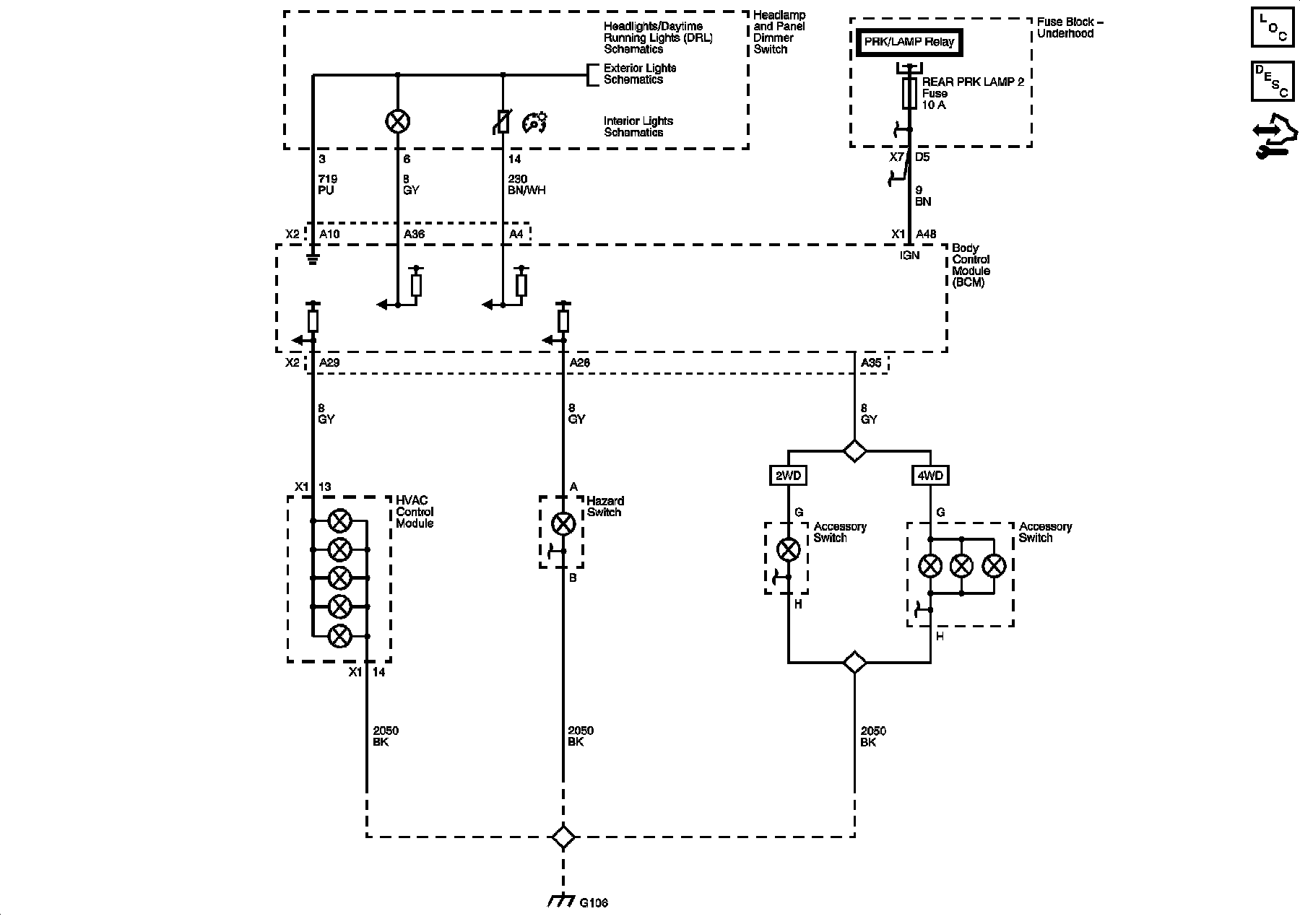

Interior Lights Dimming Diagram 1:
