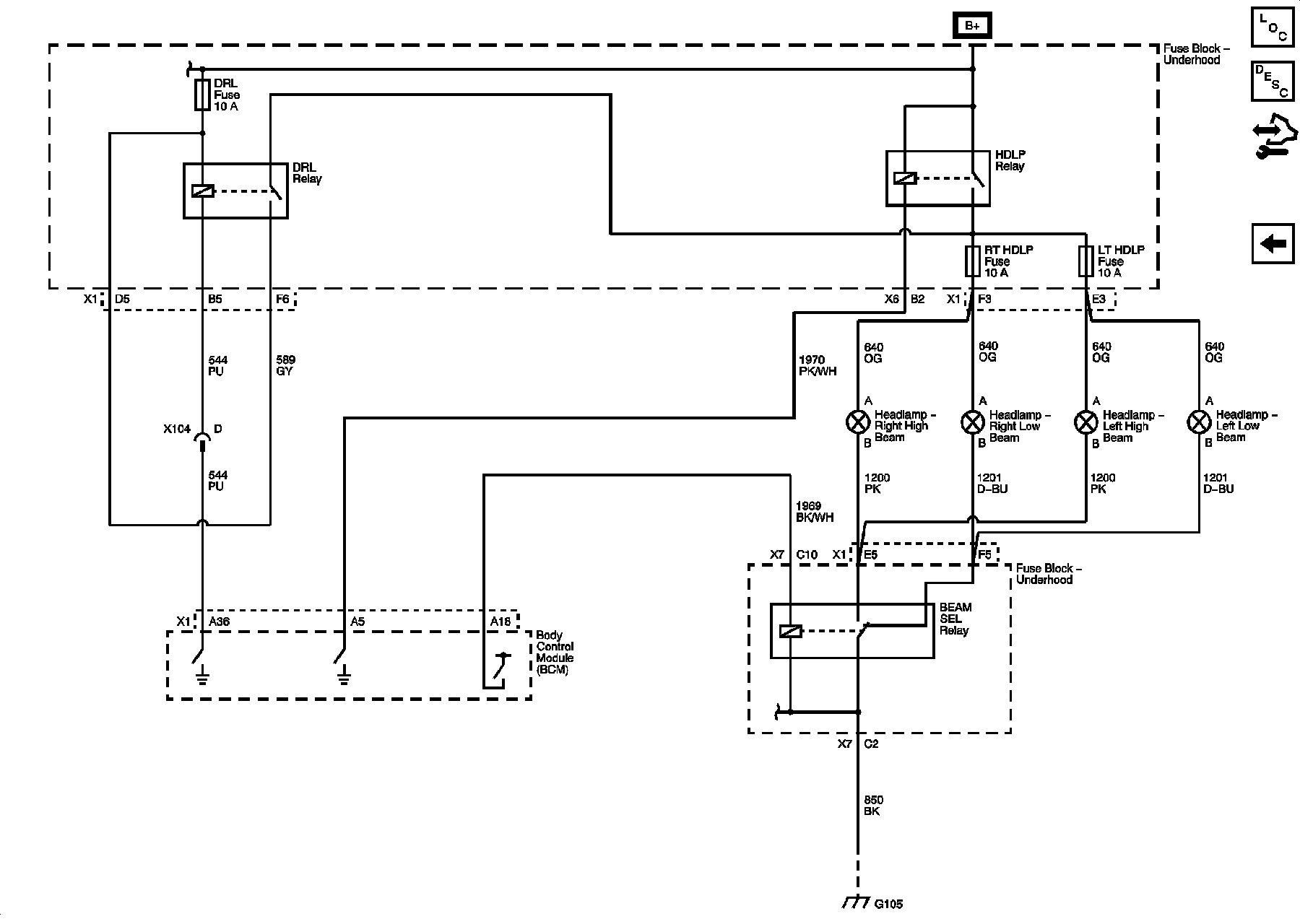

Headlights Diagram 2



Headlights/Daytime Running Lights (DRL) Schematics

Headlamps - TT5

Headlights Diagram 2:
