Headlights Diagram 1

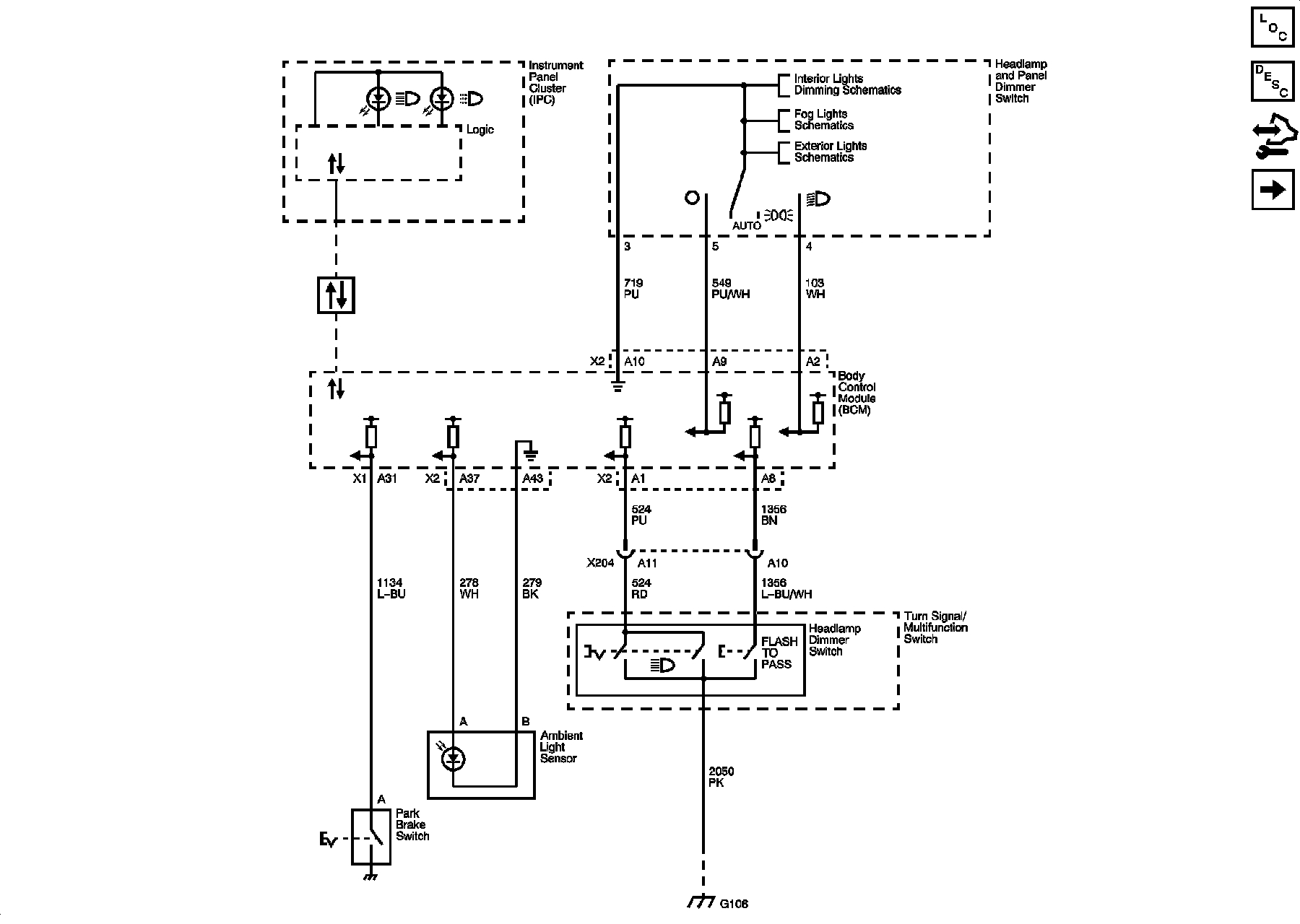

Headlights/Daytime Running Lights (DRL) Schematics

Ambient Light Sensor, Headlamp Controls and Switches

Headlights Diagram 1:
