Exterior Lights Diagram 1



Exterior Lights Schematics

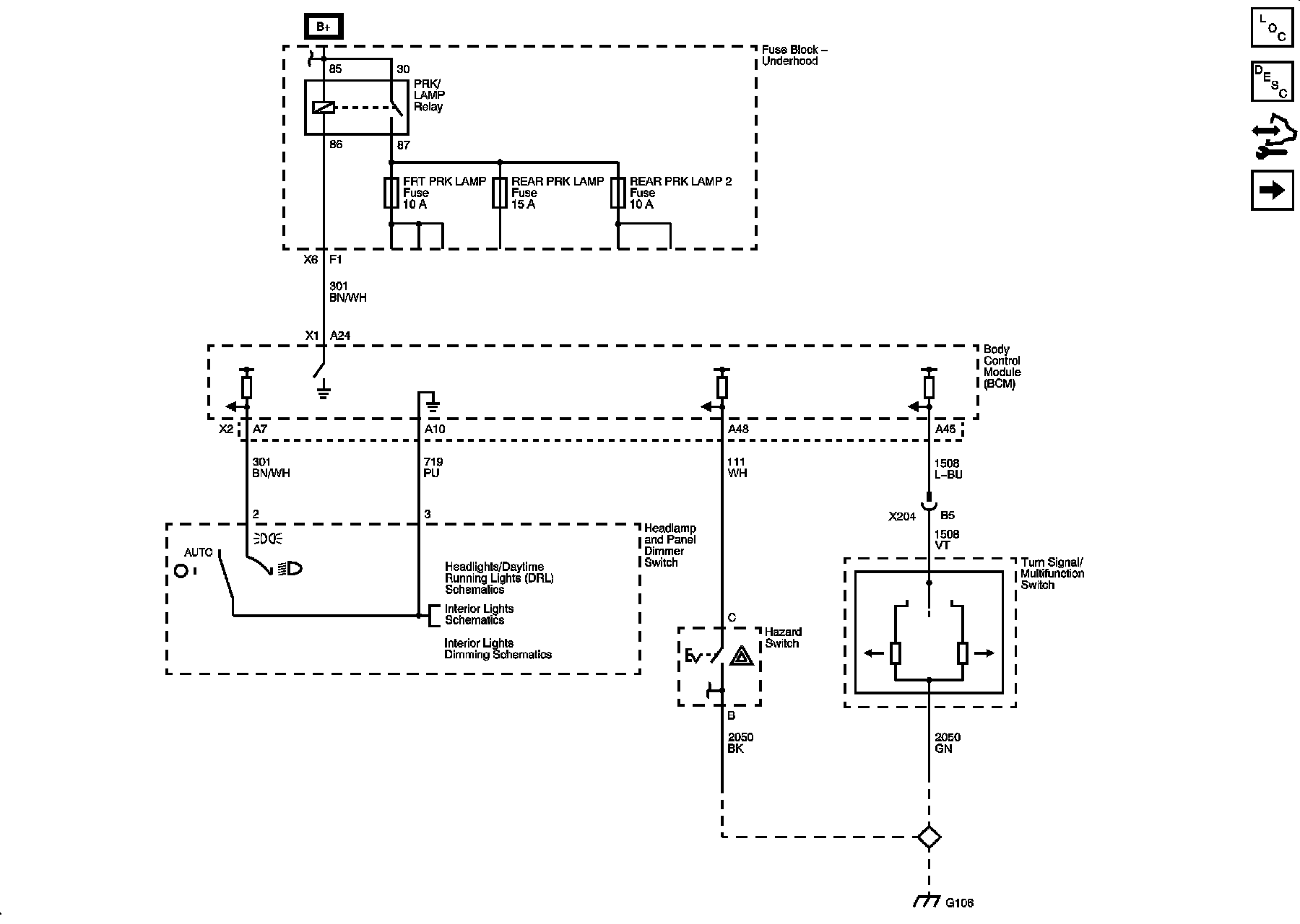

Park Lamp and Turn Signal Controls

Exterior Lights Diagram 1:
