Instrument Cluster / Carrier: Diagrams

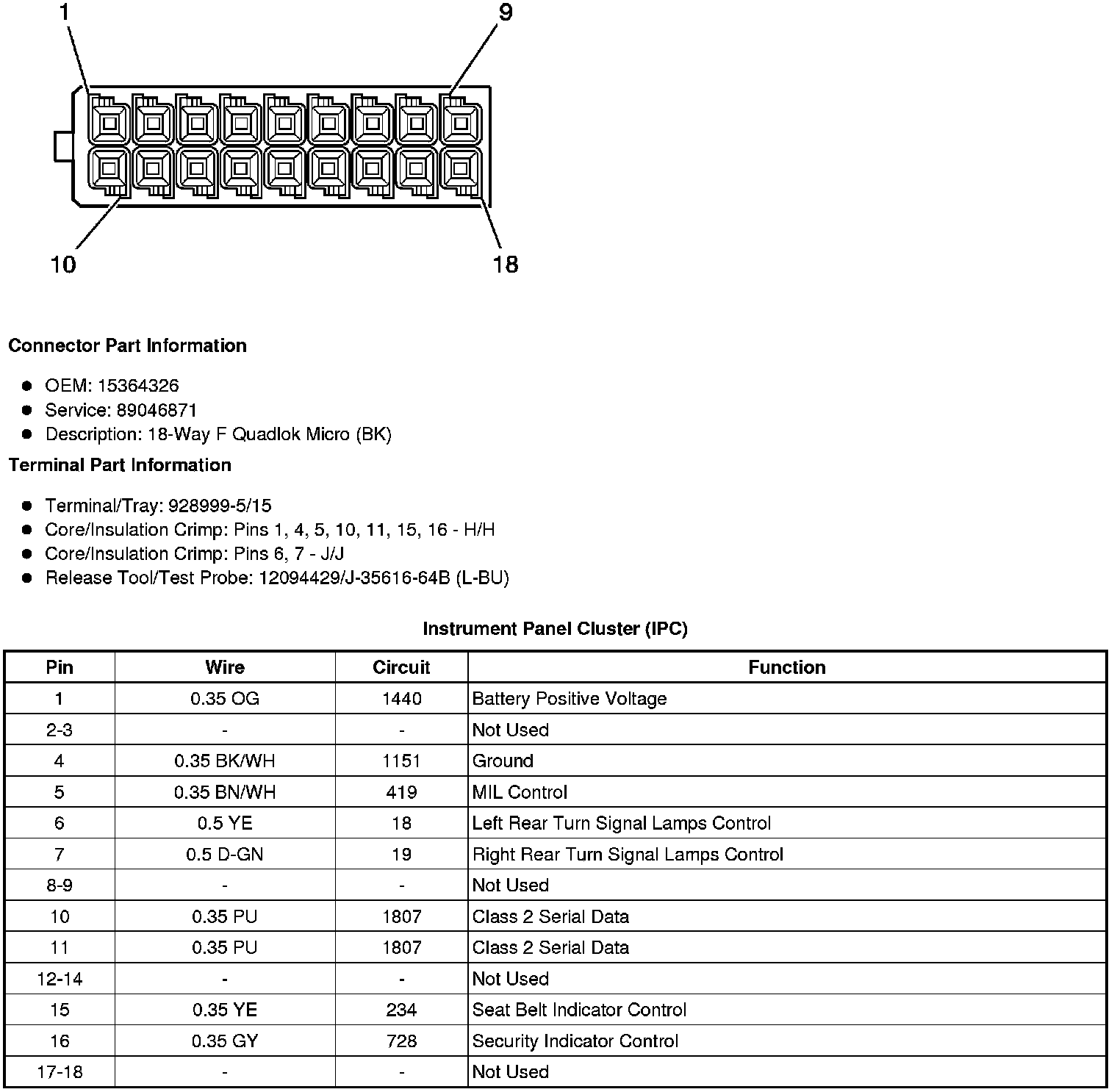

Component Connector End Views

Instrument Panel Cluster (IPC)
