96. Power Steering Pump Bracket Installation

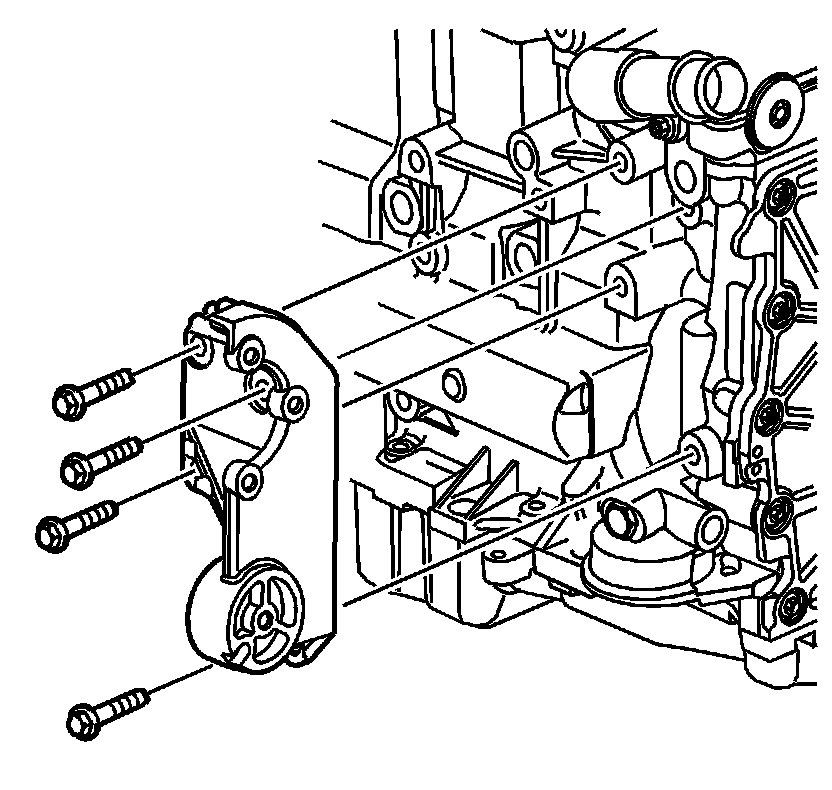

Power Steering Pump Bracket Installation




1. Install the power steering pump bracket.

Notice: Refer to Fastener Notice .

2. Install the power steering pump bracket bolts.

Tighten the power steering pump bracket bolts to 50 N.m (37 lb ft).
