95. Oil Level Indicator and Tube Installation

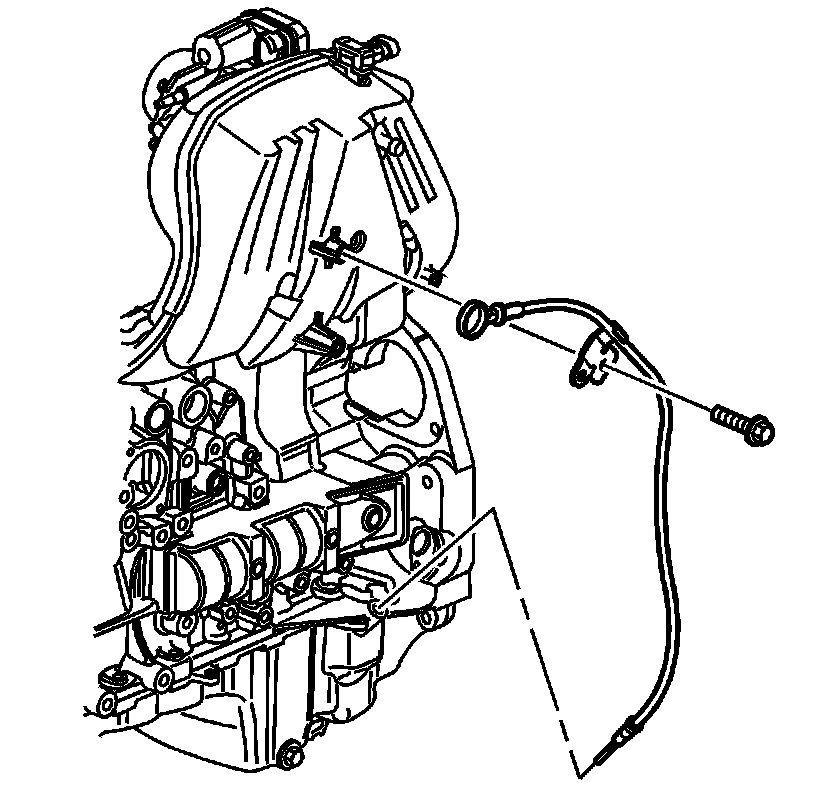

Oil Level Indicator and Tube Installation




1. Install the oil level indicator tube.
2. Add sealant GM P/N 12346004 (Canadian P/N 10953480) to the oil level indicator tube bolt threads.

Notice: Refer to Fastener Notice .

3. Install the oil level indicator tube bolt.

Tighten the oil level indicator tube bolt to 10 N.m (89 lb in).

4. Install the oil level indicator.
