77. Camshaft Cover Installation

Camshaft Cover Installation




1. Install a new camshaft cover seal.

Notice: Refer to Fastener Notice .

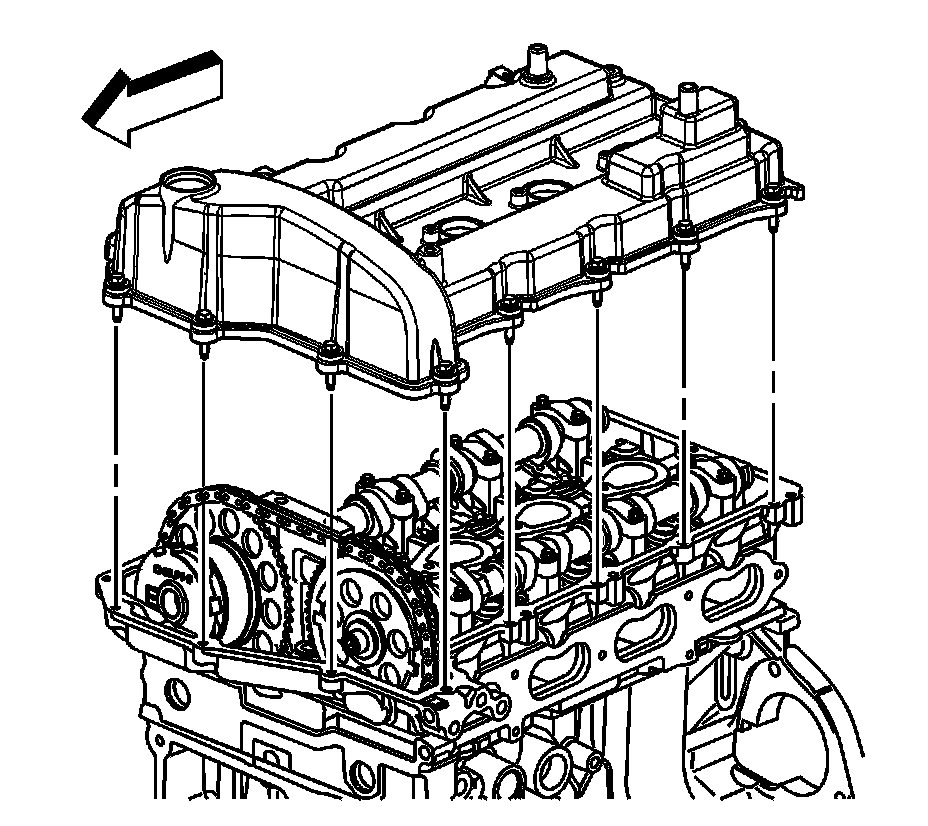

2. Install the camshaft cover and bolts.

Tighten the camshaft cover bolts to 10 N.m (89 lb in).




3. Install new ignition control module seals.

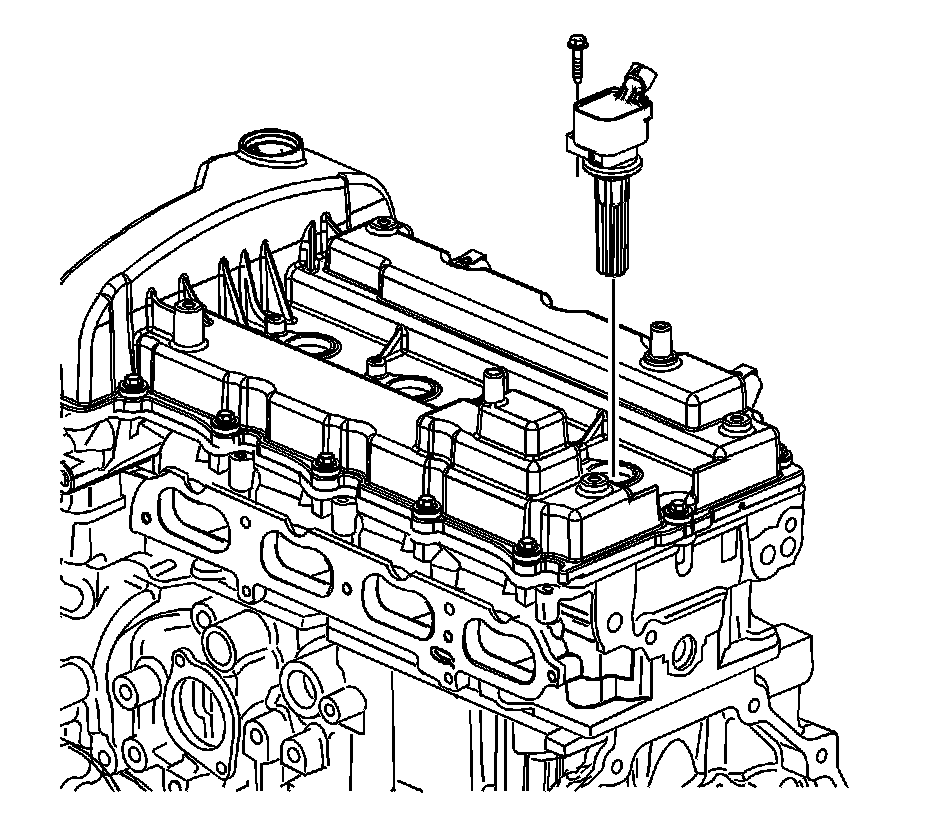

4. Install the ignition control modules and bolts.

Tighten the ignition control module bolts to 10 N.m (89 lb in).




5. Add sealer GM P/N 12346004 (Canadian P/N 10953480) to the coolant temperature sensor threads.

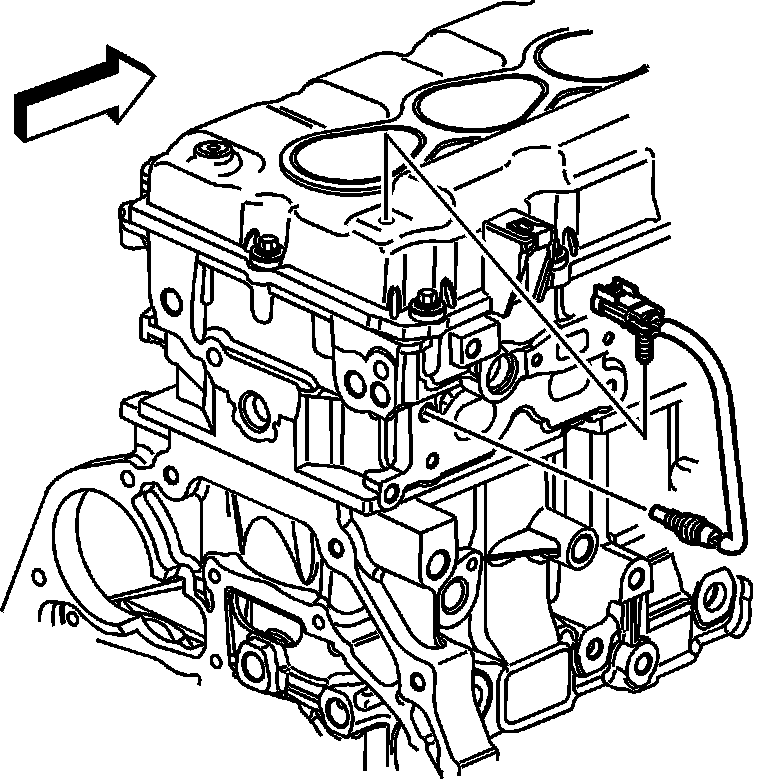

6. Install the coolant temperature sensor.

Tighten the coolant temperature sensor to 14 N.m (124 lb in).
