74. Engine Lift Bracket Installation

Engine Lift Bracket Installation

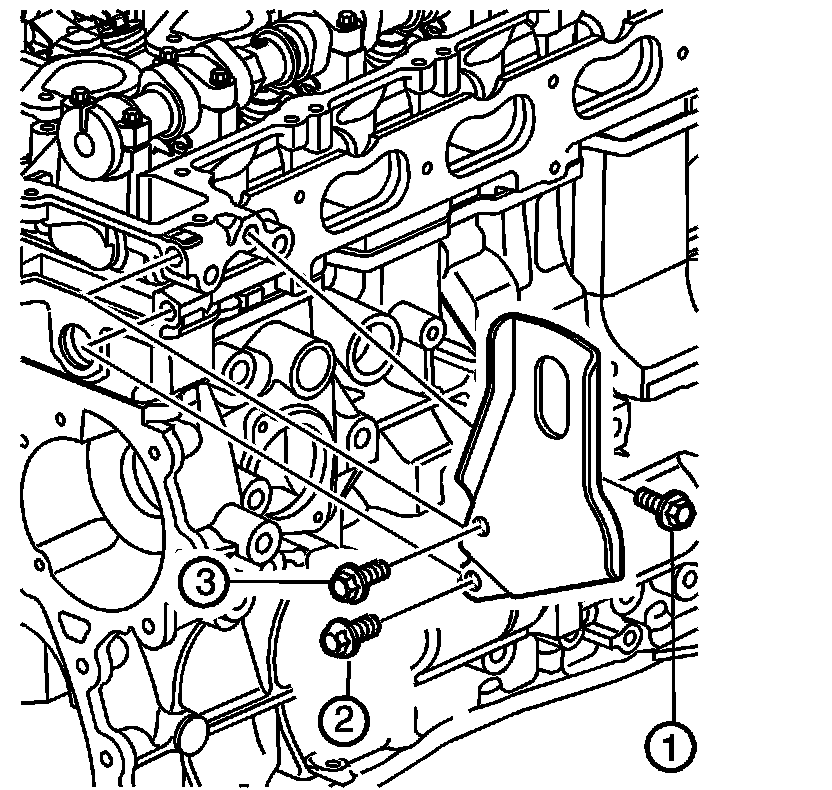

1. Install the engine lift bracket.

Notice: Refer to Fastener Notice .

2. Install the engine lift bracket bolts in sequence.

* Tighten the engine lift bracket bolts a first pass in sequence to 5 N.m (44 lb in)
* Tighten the engine lift bracket bolts a final pass in sequence to 50 N.m (37 lb ft)
