7. Exhaust Manifold Removal

Exhaust Manifold Removal

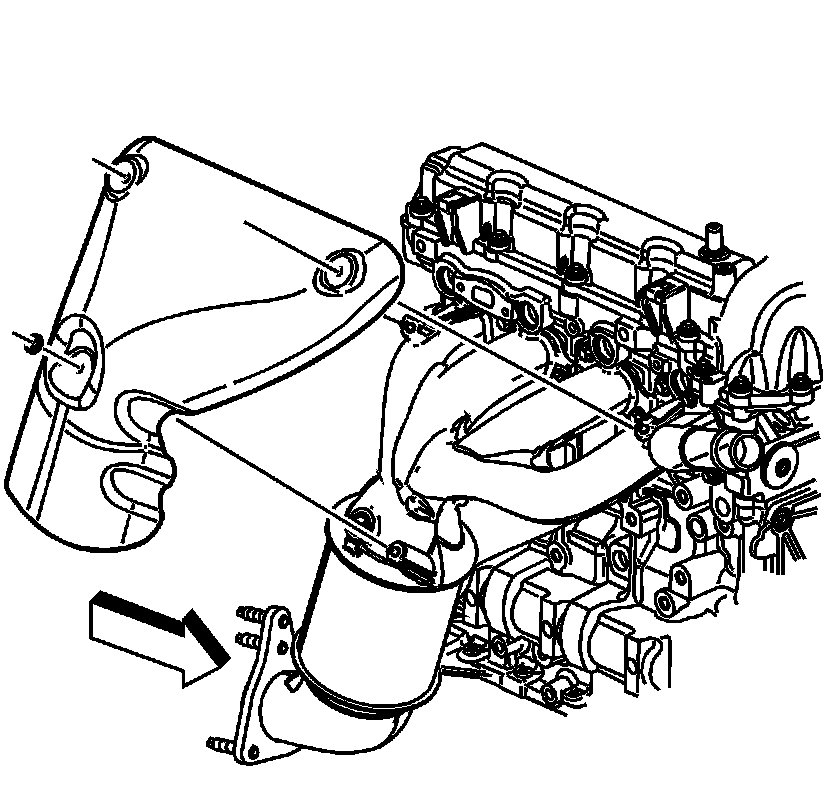

1. Remove the exhaust manifold heat shield nuts.
2. Remove the exhaust manifold heat shield.

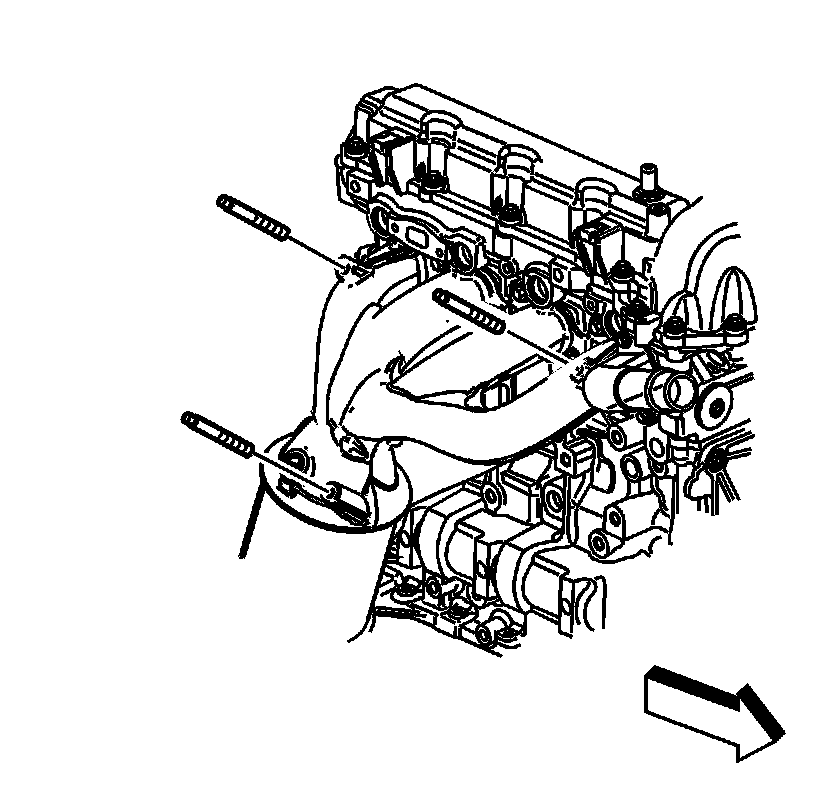

3. Remove the exhaust manifold studs. (if needed)

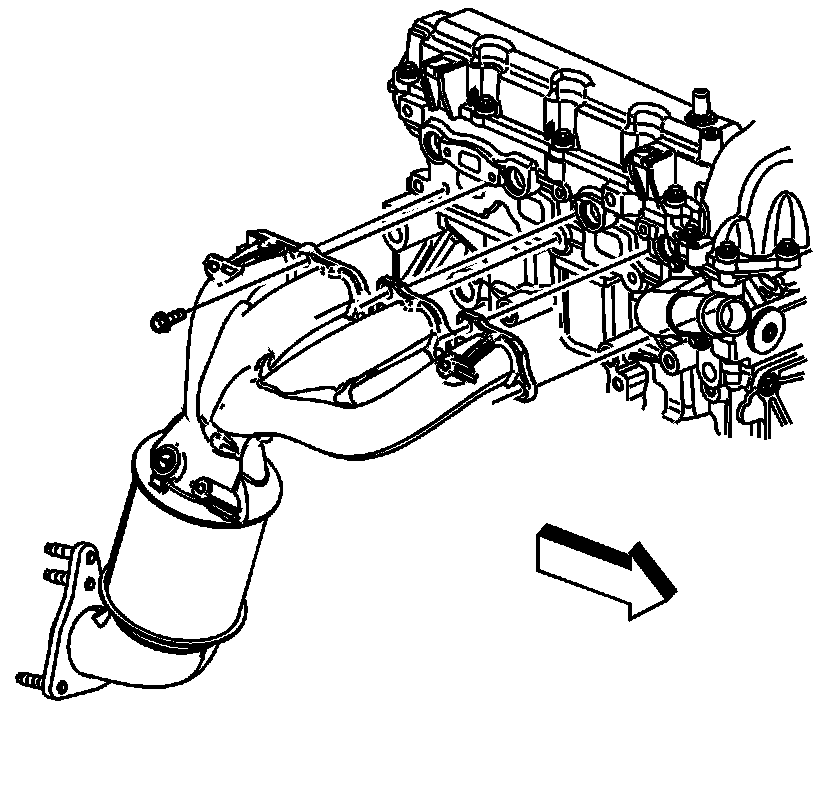

4. Remove the exhaust manifold bolts.
5. Remove the exhaust manifold.

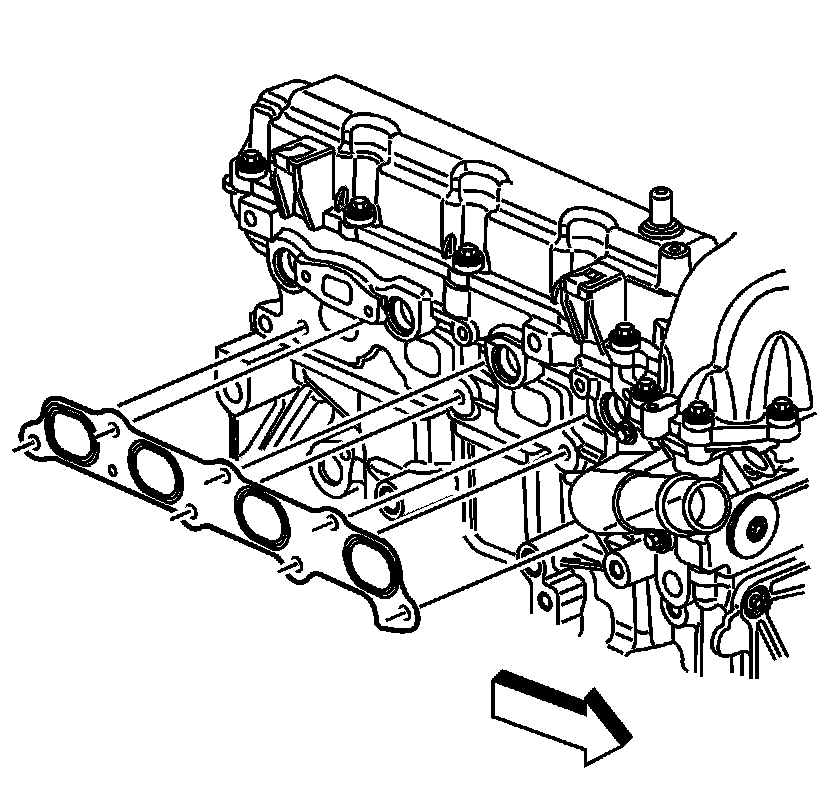

6. Remove and discard exhaust manifold gasket.
