With Manual Transmission



Engine Flywheel Cleaning and Inspection (Manual Transmission)

Important: In order to maintain the proper component balance, contact surface taper and heat transfer, manual transmission flywheels are NOT to be machined.

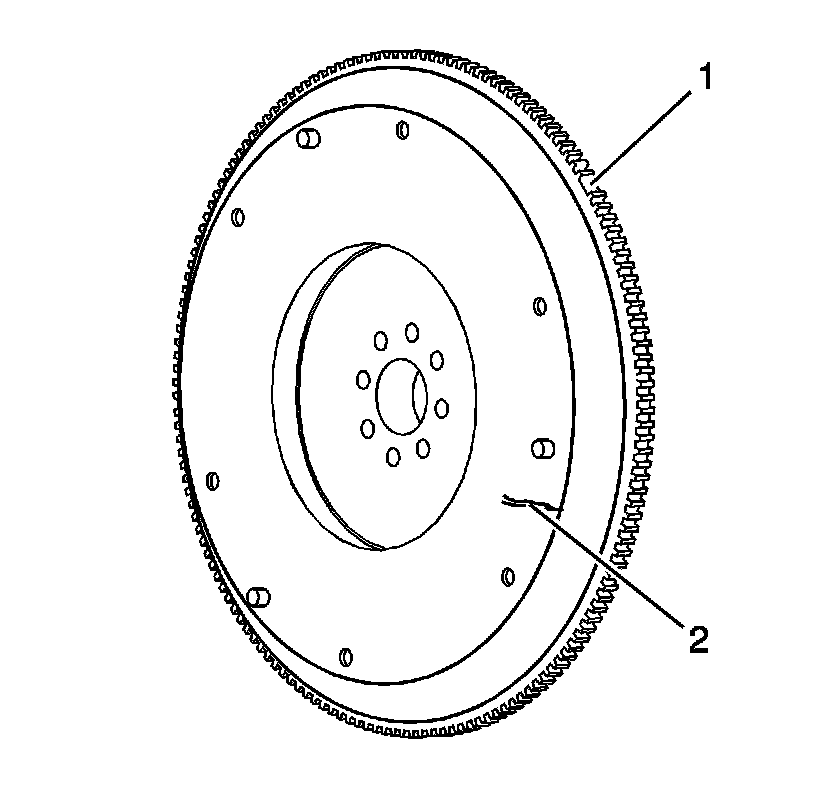

1. Inspect the engine flywheel for damaged teeth (1).
2. Inspect the engine flywheel for cracks, hot spots, or any surface damage (2).
3. Replace the engine flywheel if damage is present.
