14. Intake Manifold Removal

Intake Manifold Removal

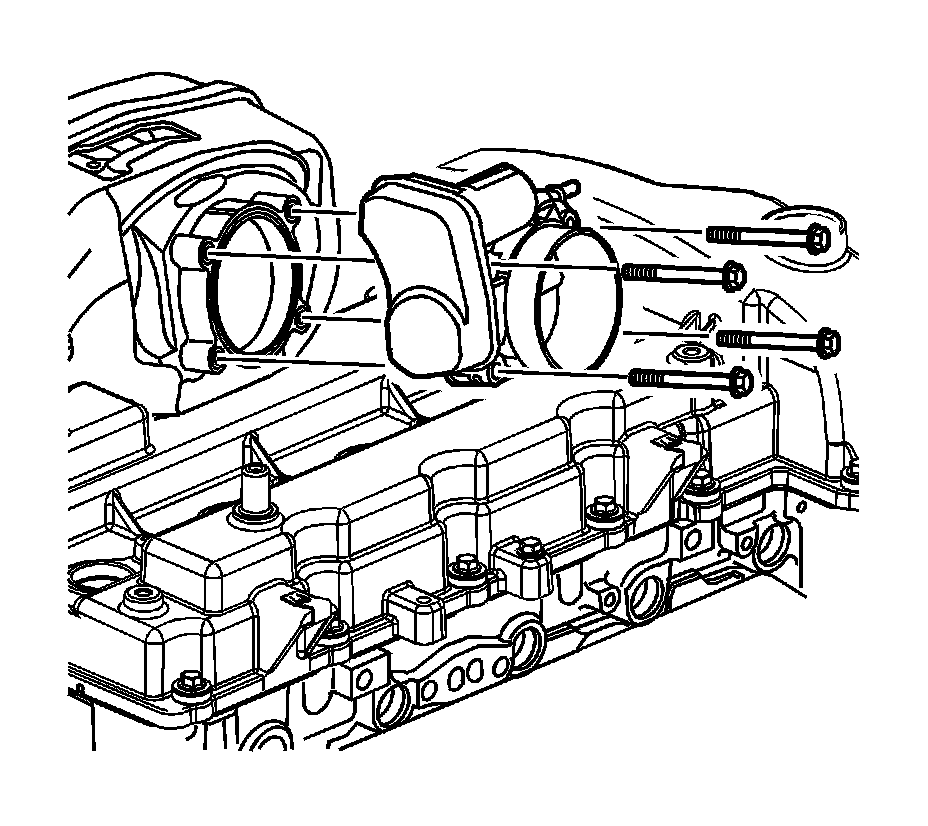

1. Remove the throttle control module bolts.
2. Remove the throttle control module.
3. Remove and discard the throttle control module gasket.

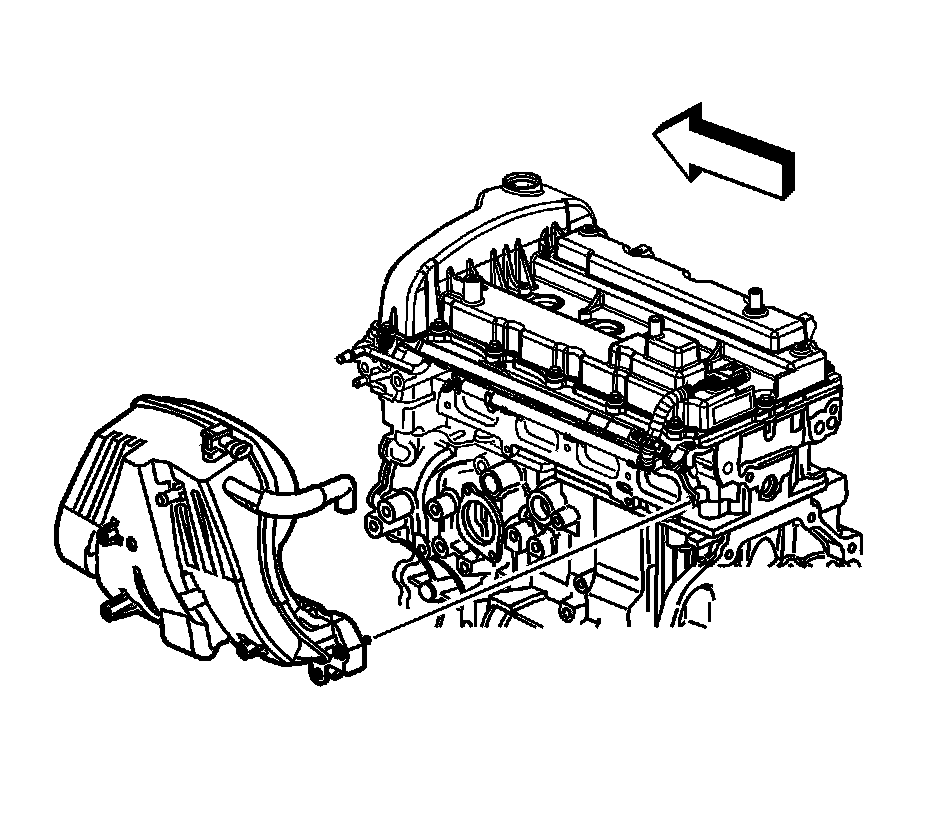

4. Remove the intake manifold and bolts.
5. Remove and discard the intake manifold gasket.
