With Automatic Transmission



Engine Flywheel Installation (Automatic Transmission)

Tools Required

J 45059 Angle Meter

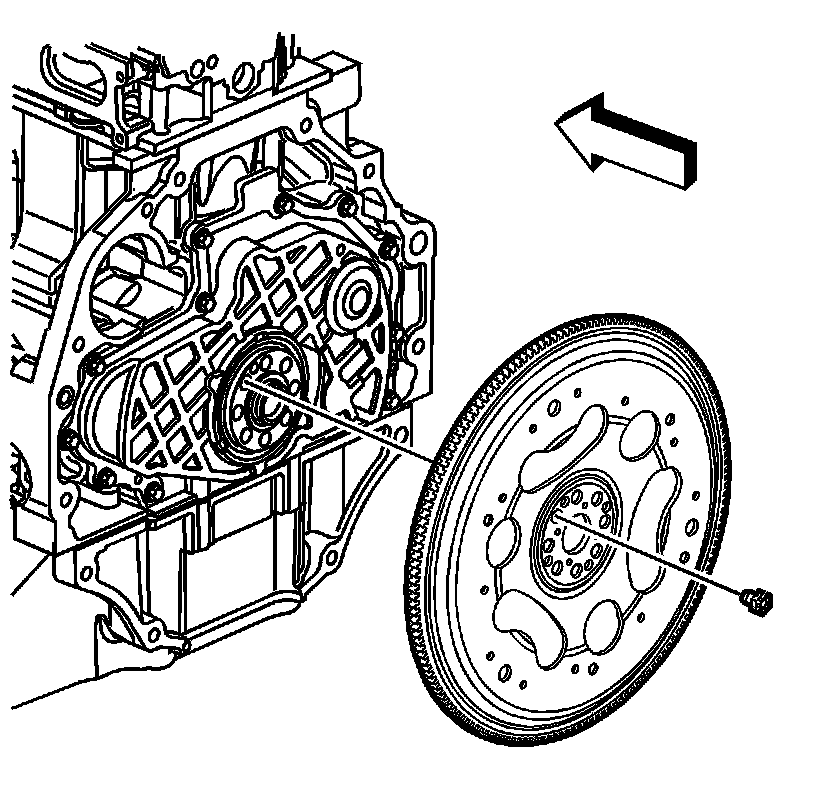

1. Install the flywheel.

Notice: Refer to Fastener Notice .

2. Install new flywheel bolts.

1. Tighten the new flywheel bolts to 40 N.m (30 lb ft).
2. Use J 45059 to tighten the flywheel bolts an additional 45 degrees.
