HVAC Jumper Harnesses

Harness Routing Views

HVAC Harness Routing

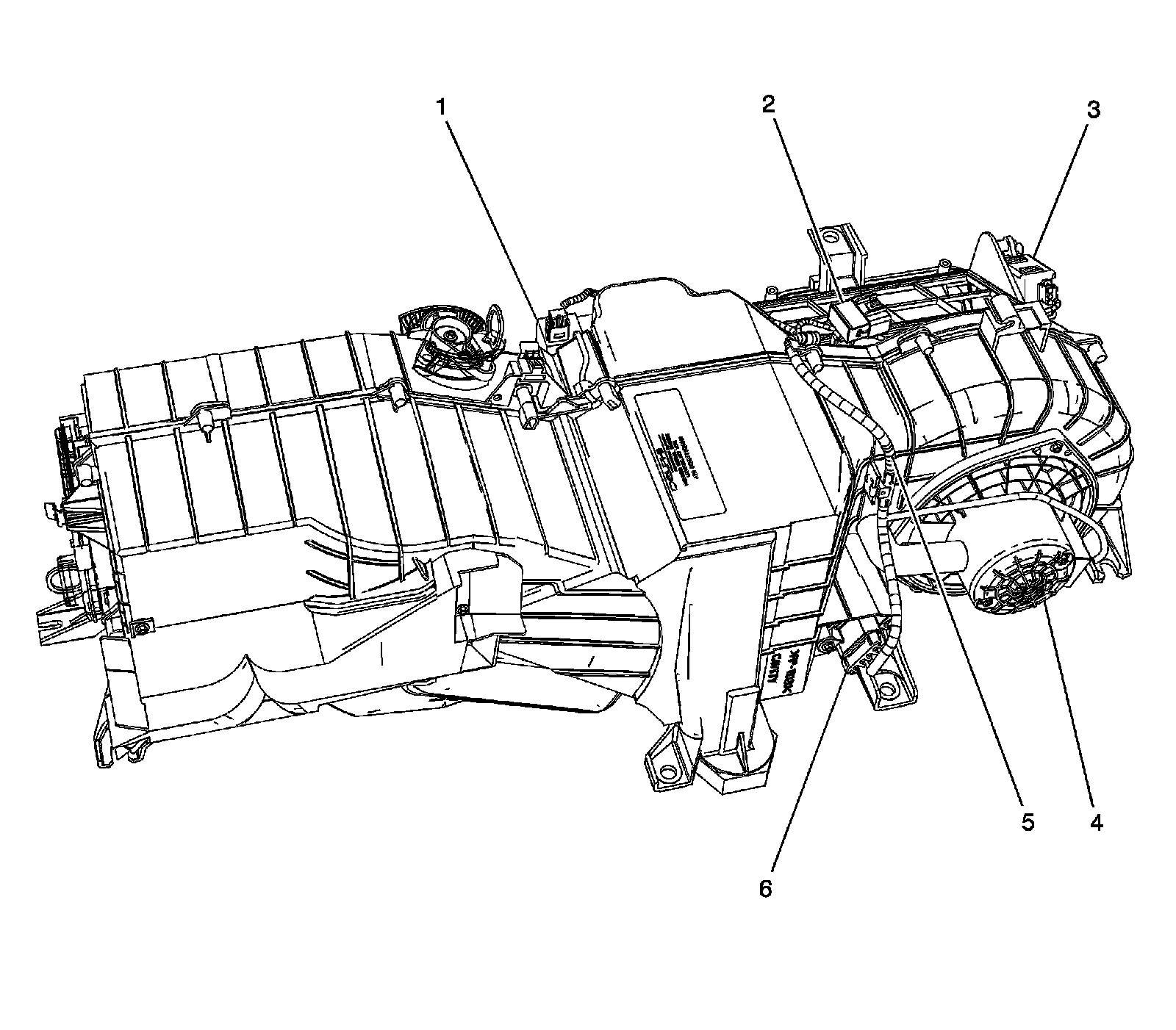

HVAC Harness Routing:

1 - Evaporator Temperature Sensor (C60)
2 - X203 (I/P Harness to the HVAC Harness)
3 - Recirculation Actuator (C60)
4 - Blower Motor
5 - J202
6 - Blower Motor Resistor Assembly
