GMC
>>
2008
>>
Canyon 4WD L4-2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seat Belt Systems
Seat Belt Systems
Seat Belt

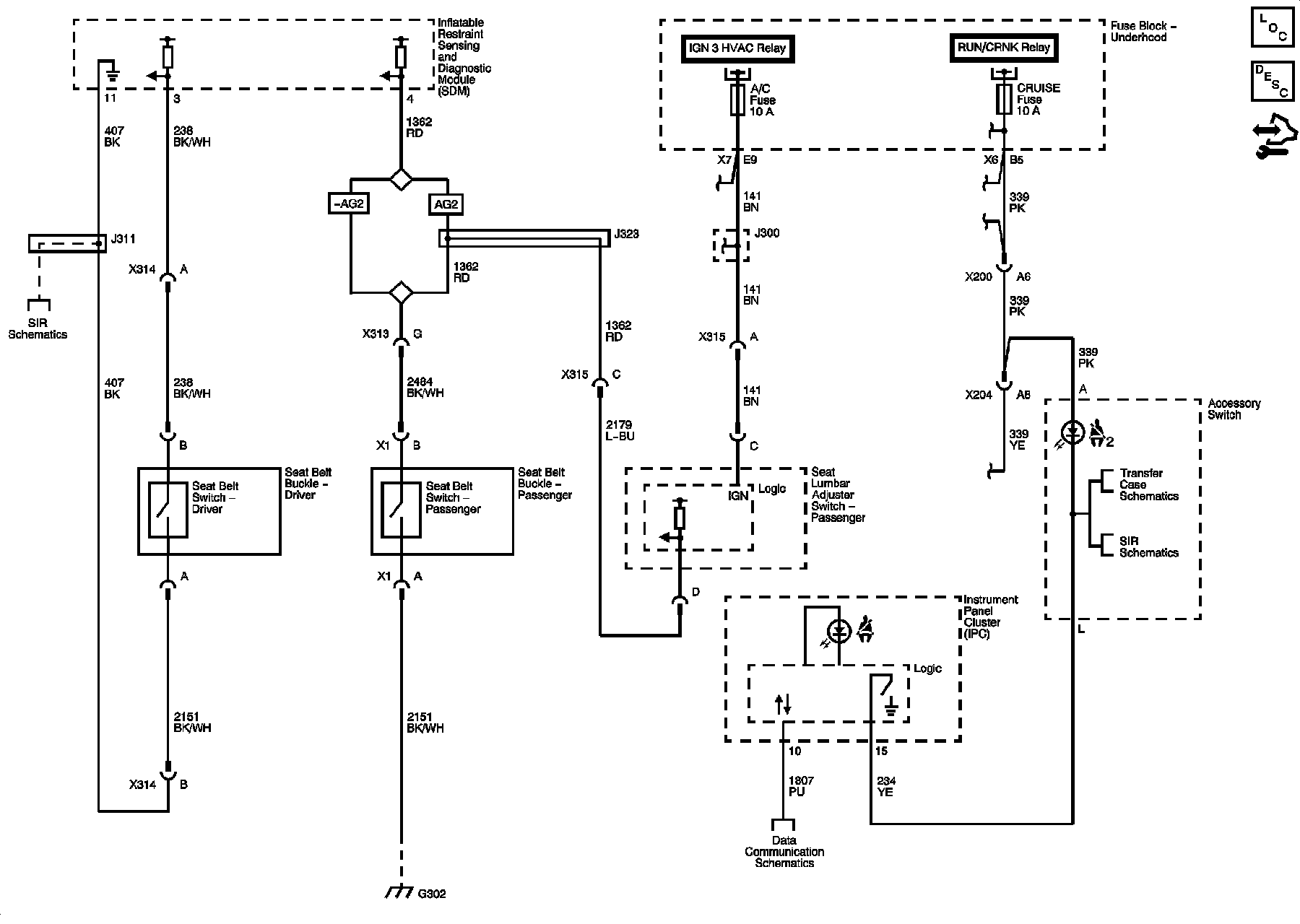

Schematics
