X316

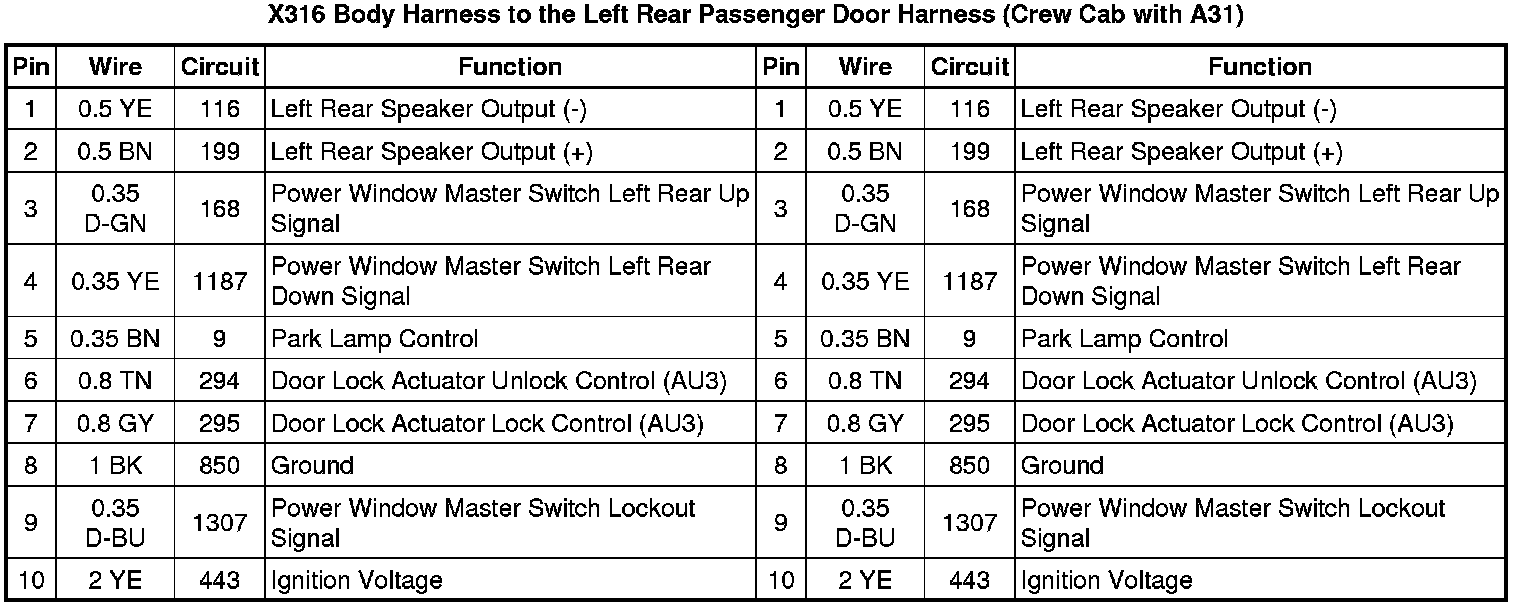

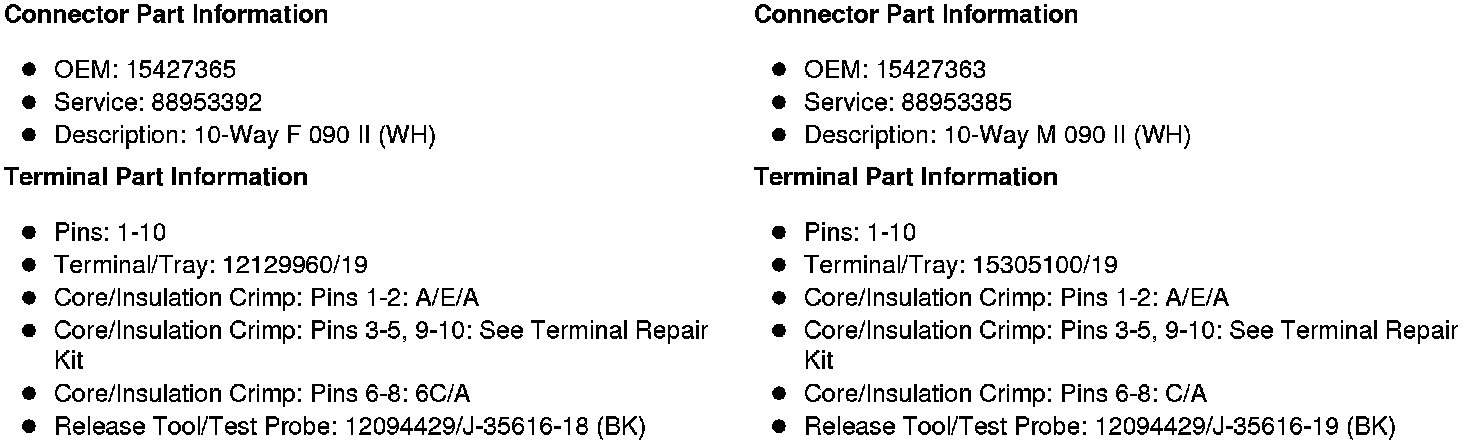

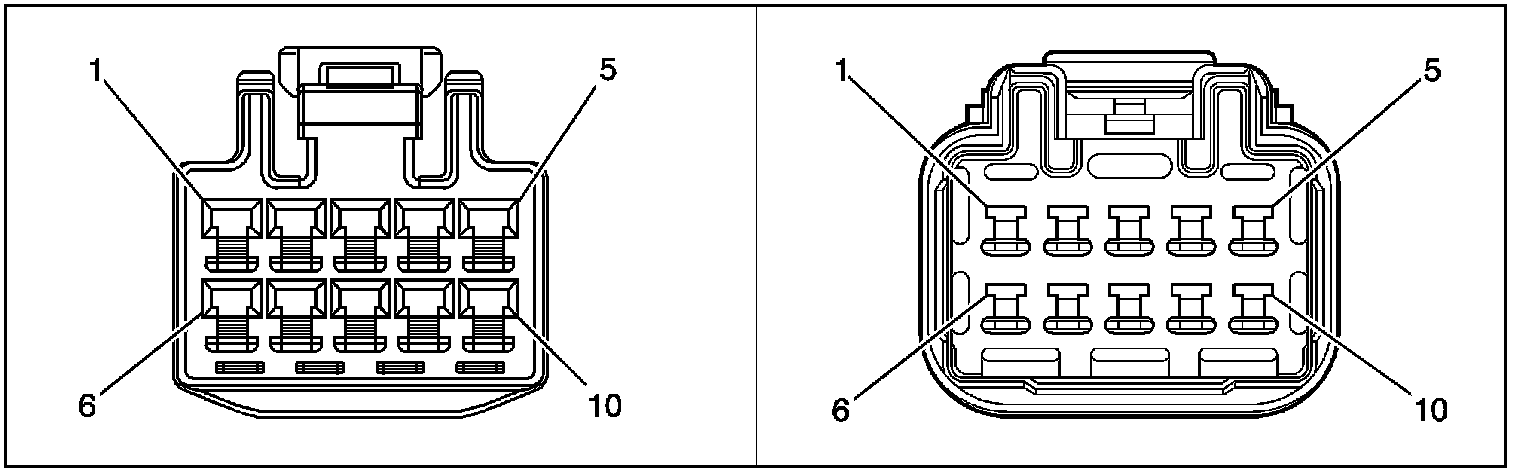

X316 Body Harness to the Left Rear Passenger Door Harness (Crew Cab with A31)

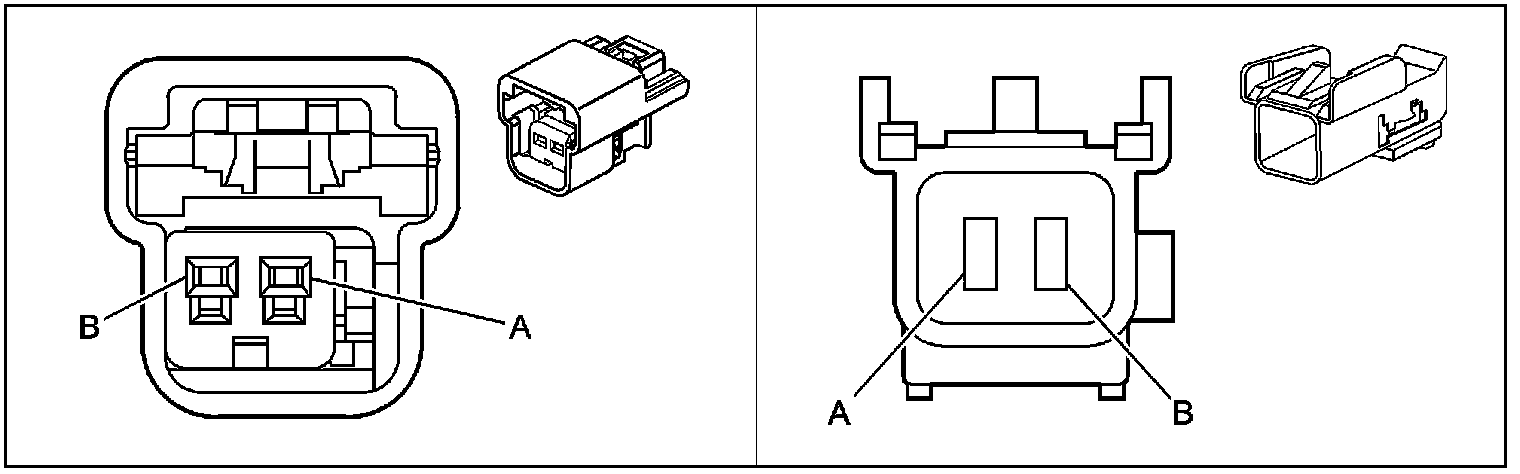

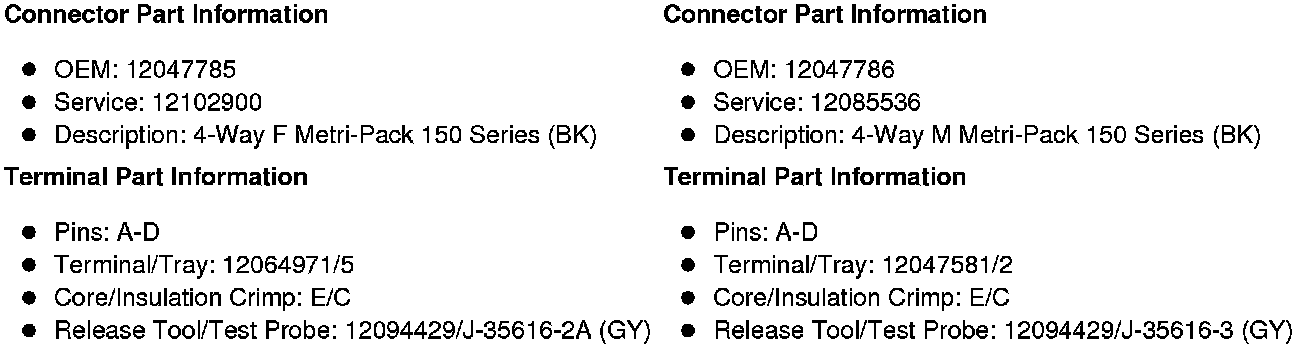

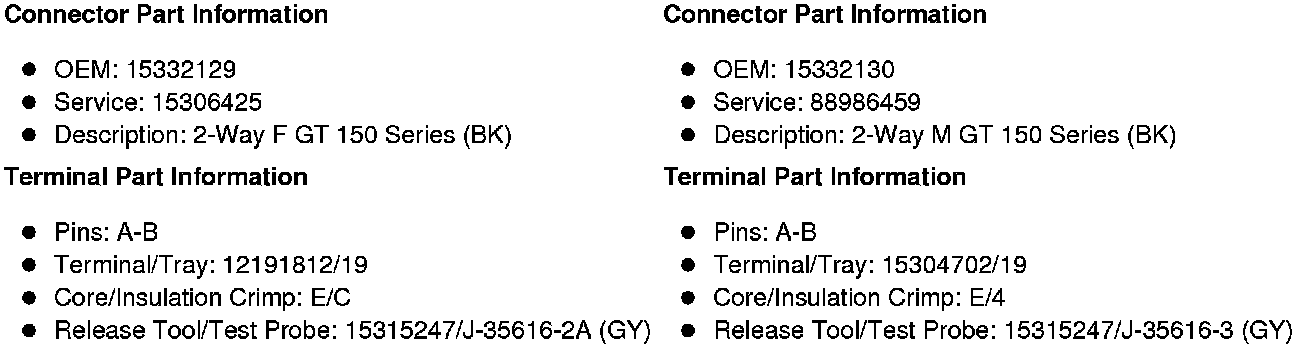

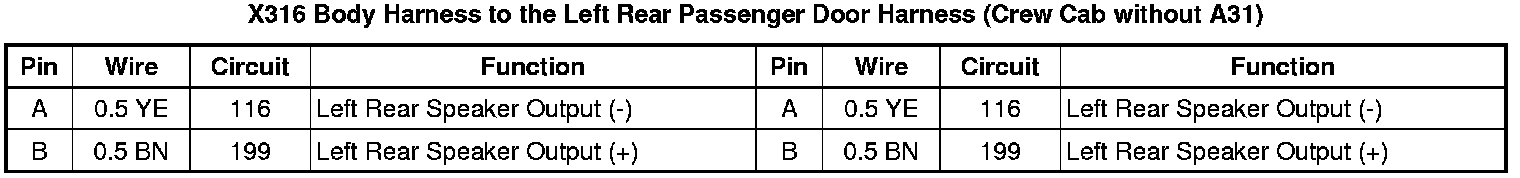

X316 Body Harness to the Left Rear Passenger Door Harness (Crew Cab without A31)

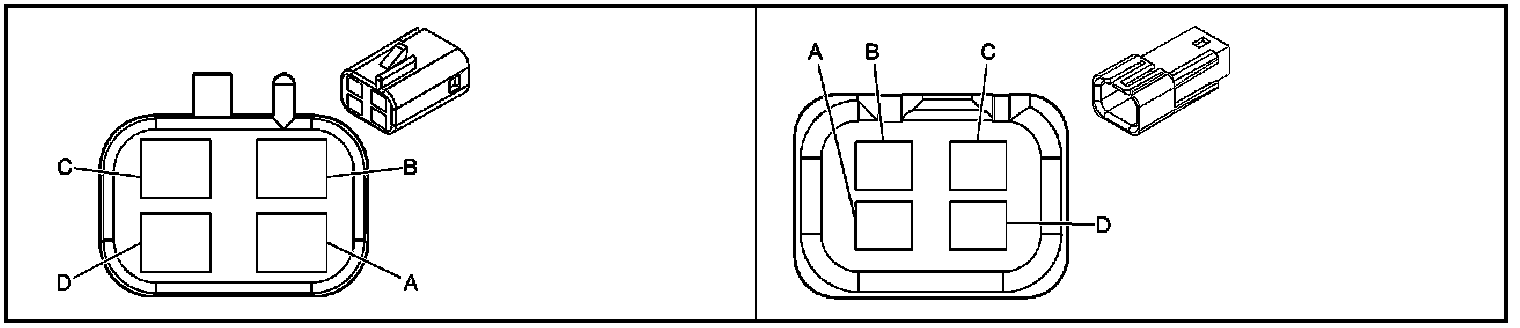

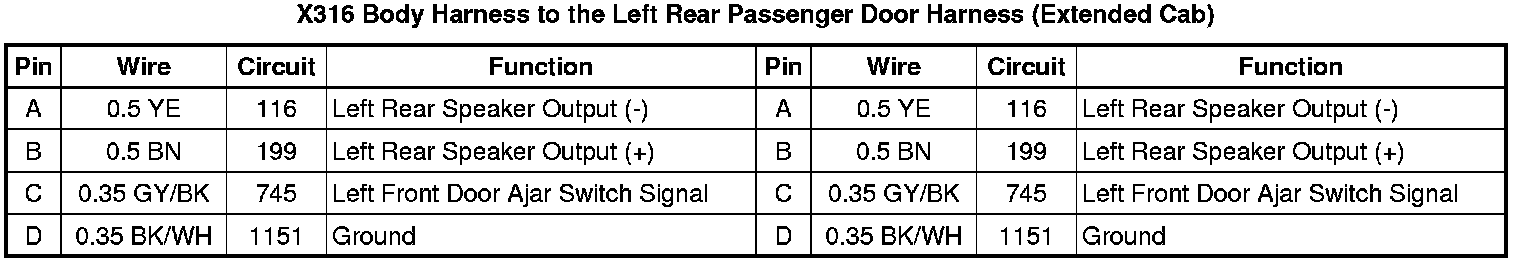

X316 Body Harness to the Left Rear Passenger Door Harness (Extended Cab)
