Auxiliary Power Outlet



Component Connector End Views

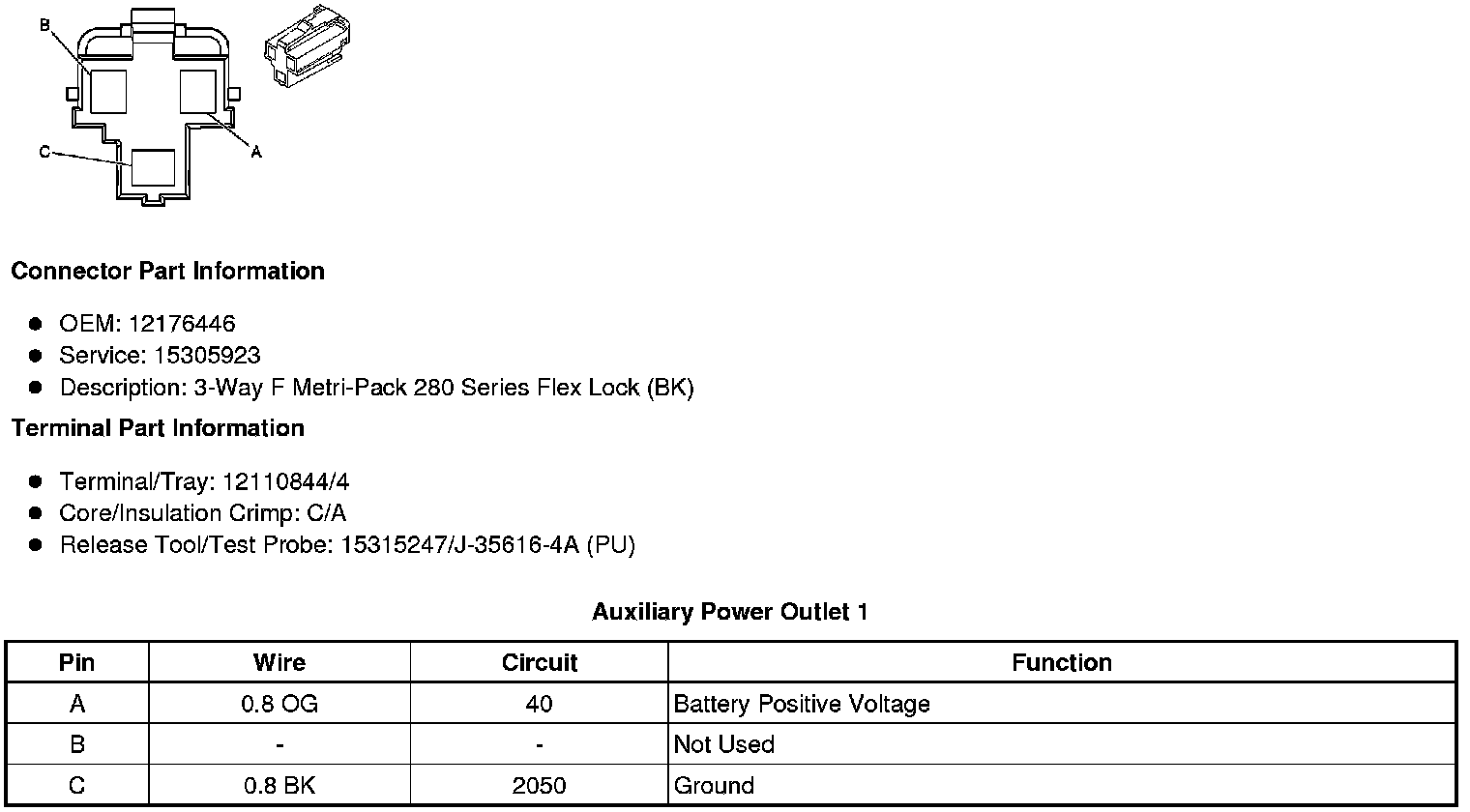

Auxiliary Power Outlet 1

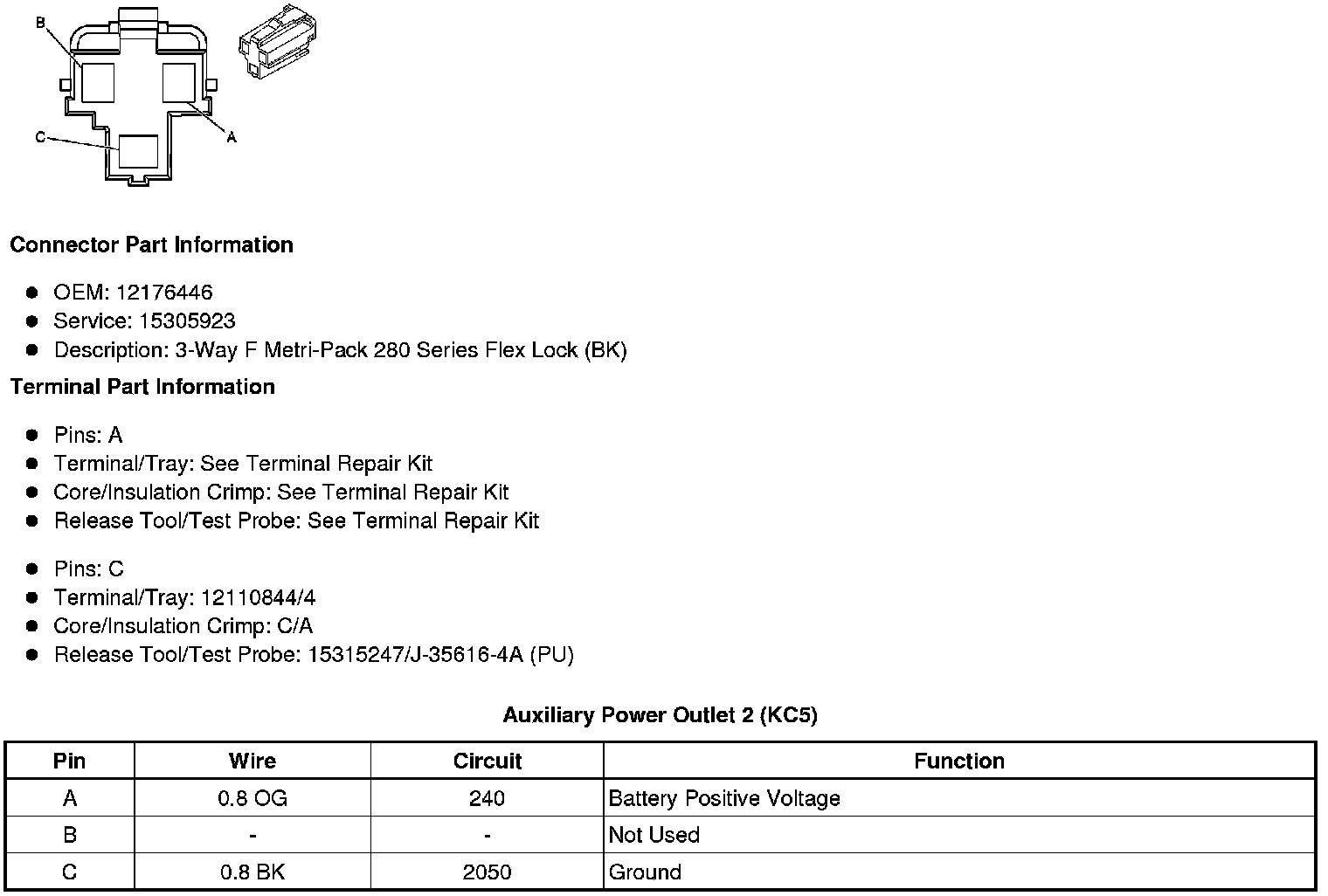

Auxiliary Power Outlet 2 (KC5)
