Wiper and Washer Systems



Component Connector End Views

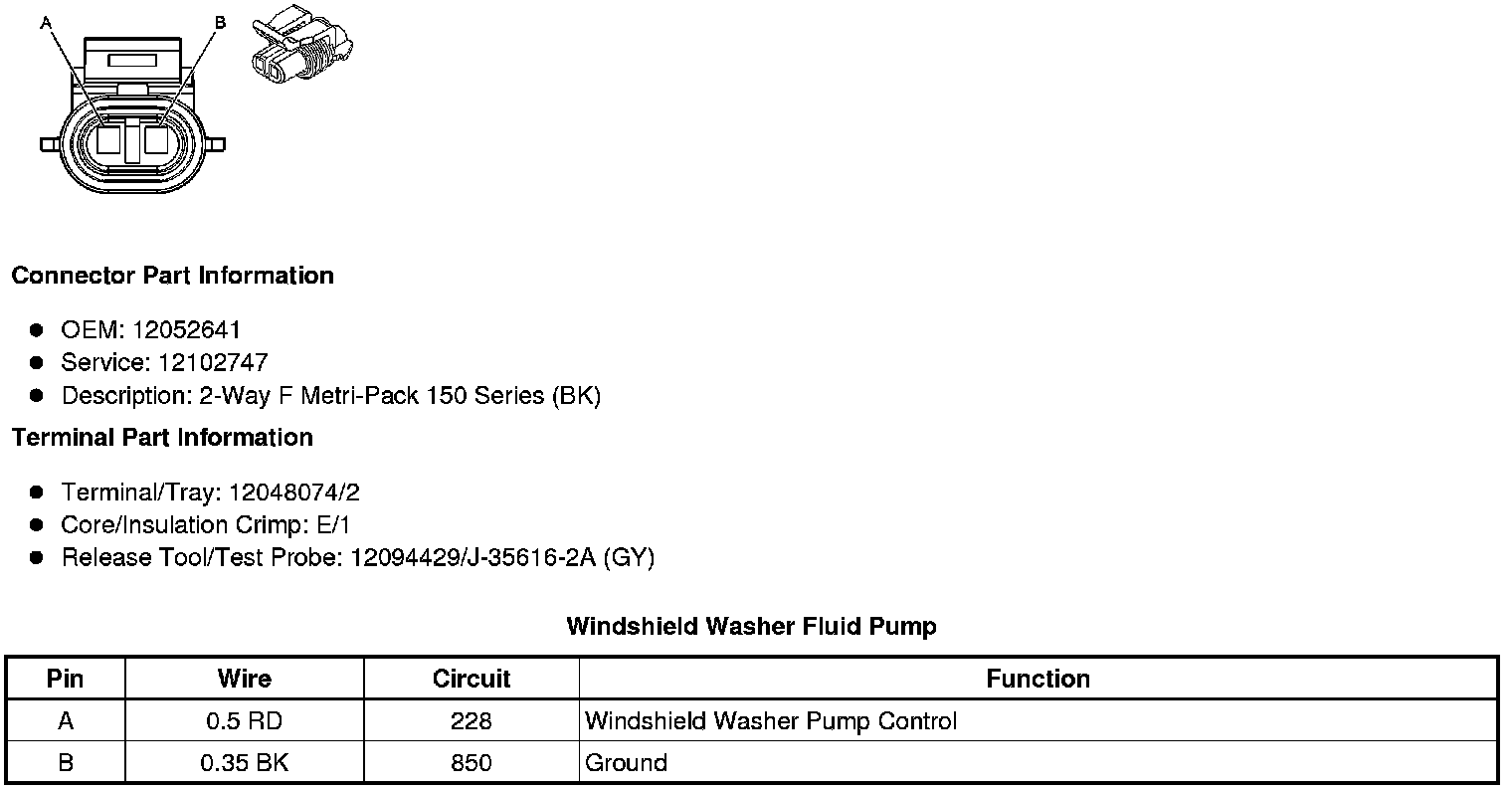

Windshield Washer Fluid Pump

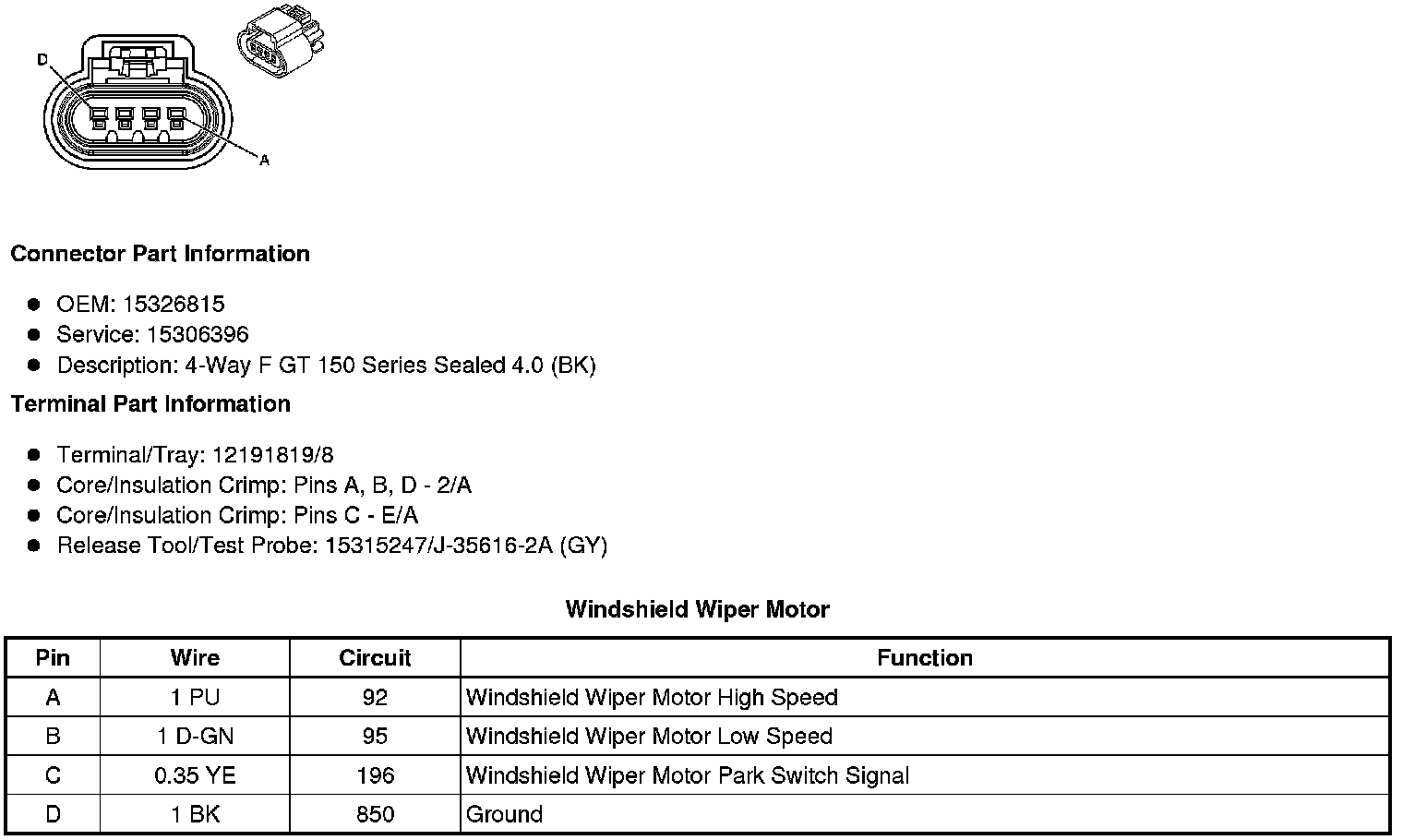

Windshield Wiper Motor
