Power and Ground Distribution



Component Connector End Views

Auxiliary Power Outlet 1





Auxiliary Power Outlet 2 (KC5)





Generator X1





Generator Battery Control Module

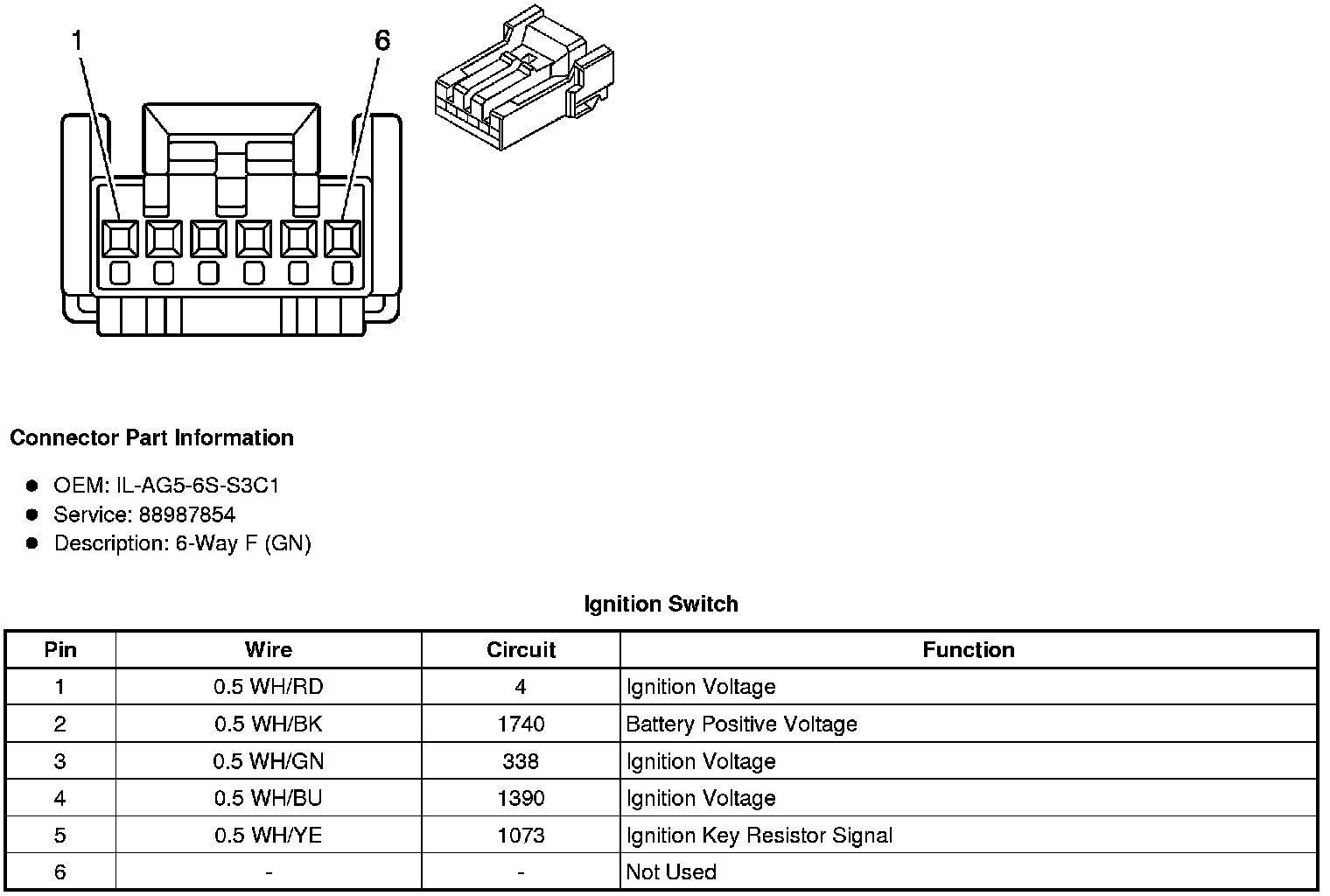

Ignition Switch

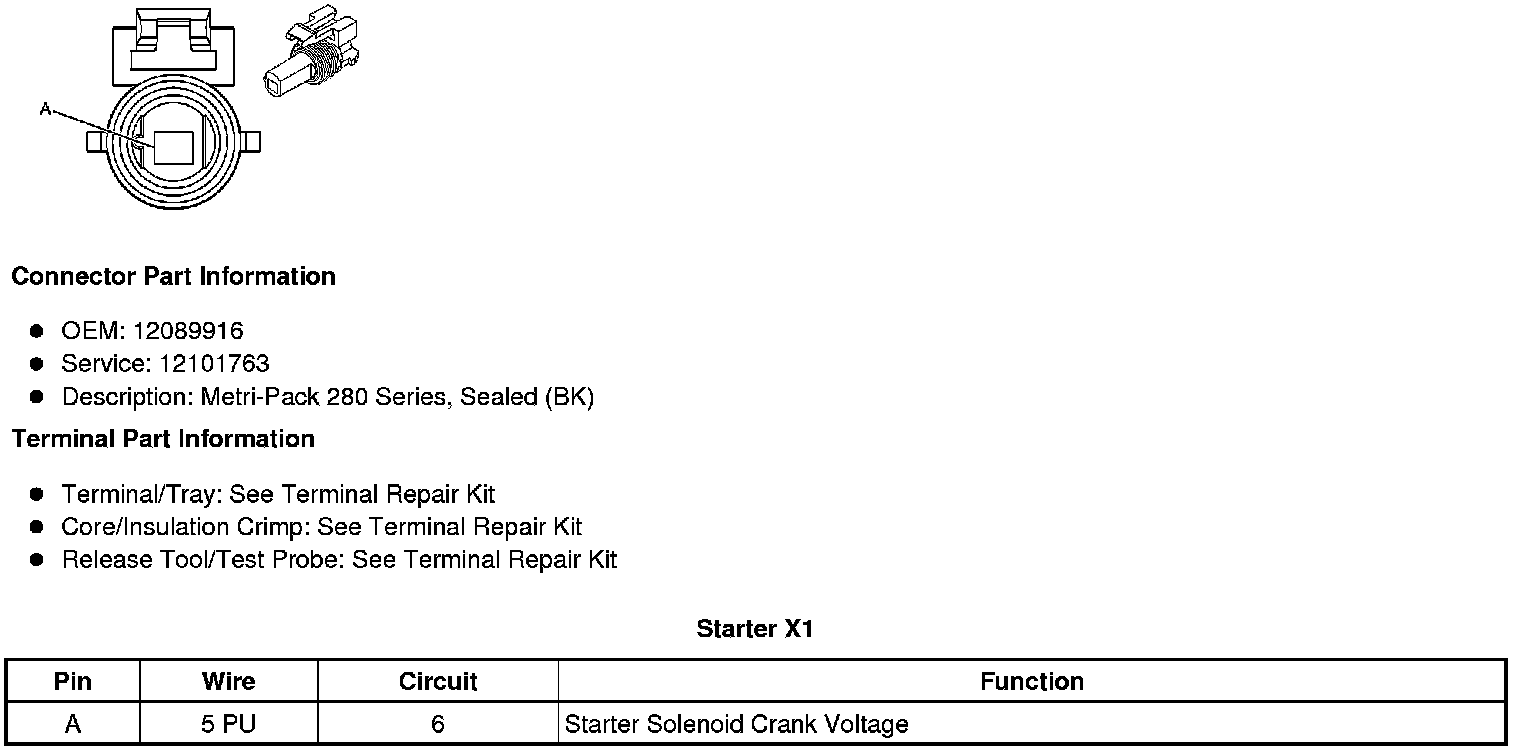

Starter X1
