Center Mounted Brake Lamp

Component Connector End Views

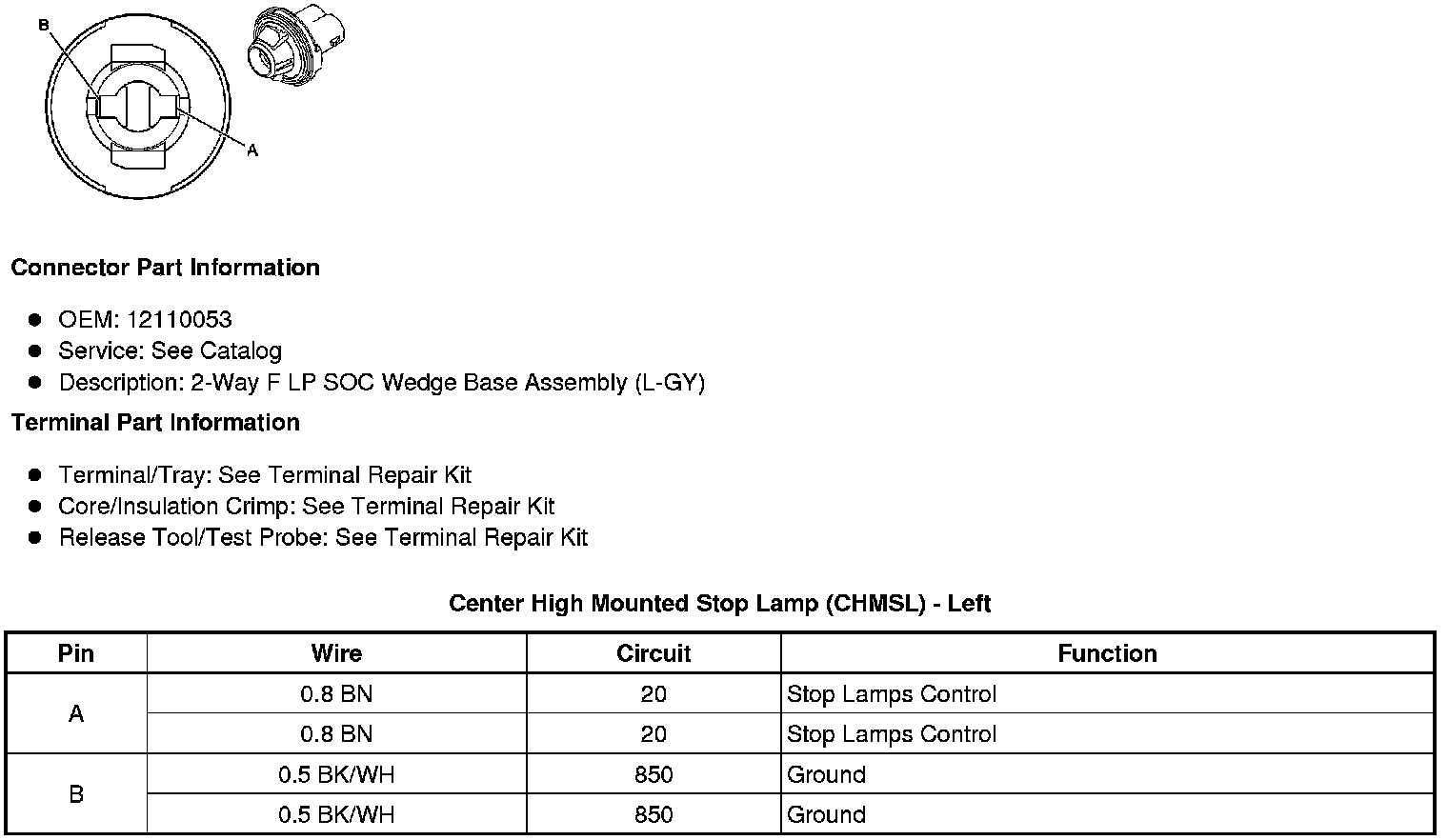

Center High Mounted Stop Lamp (CHMSL) - Left

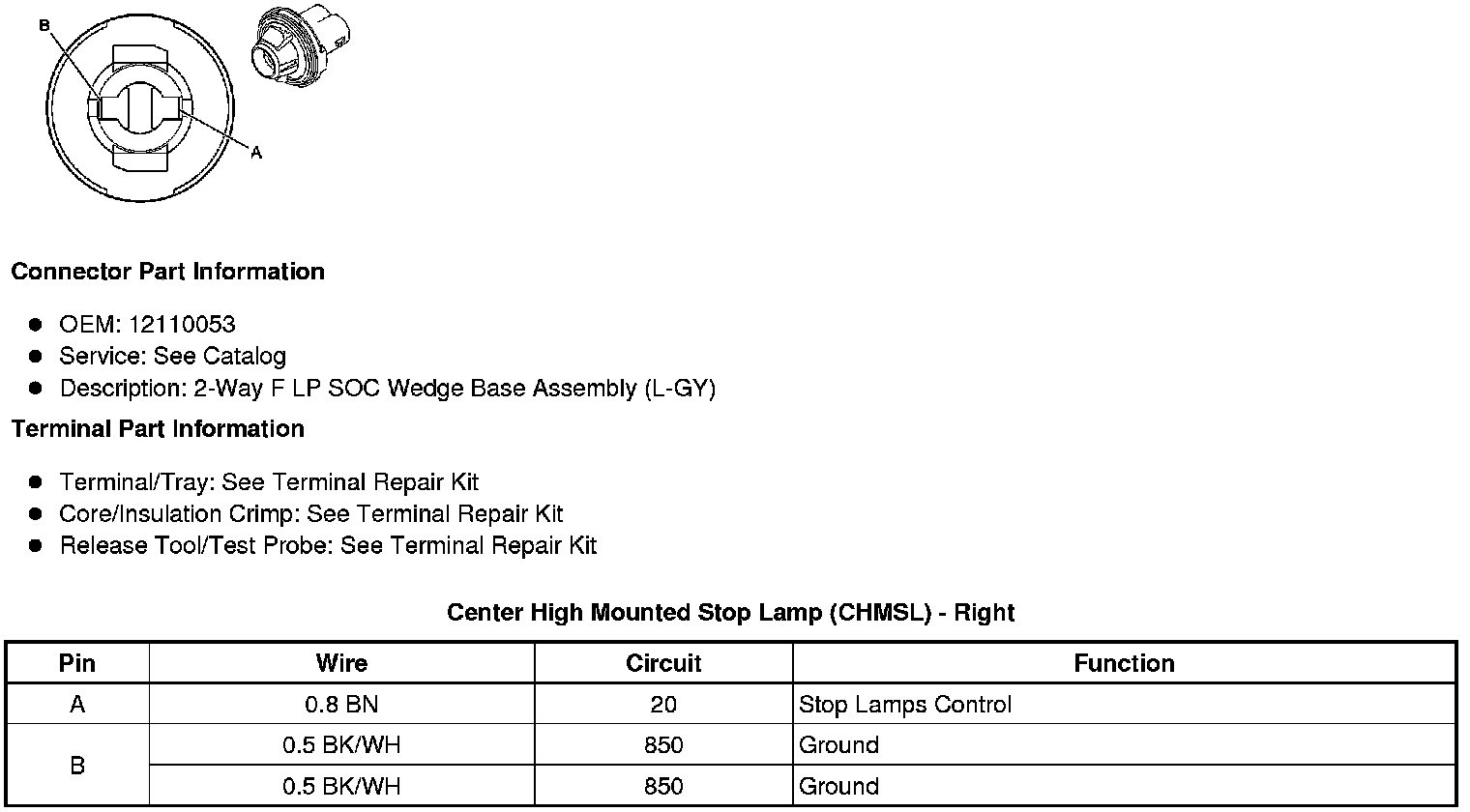

Center High Mounted Stop Lamp (CHMSL) - Right
