GMC
>>
2008
>>
Canyon 4WD L4-2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ambient Light Sensor
Ambient Light Sensor

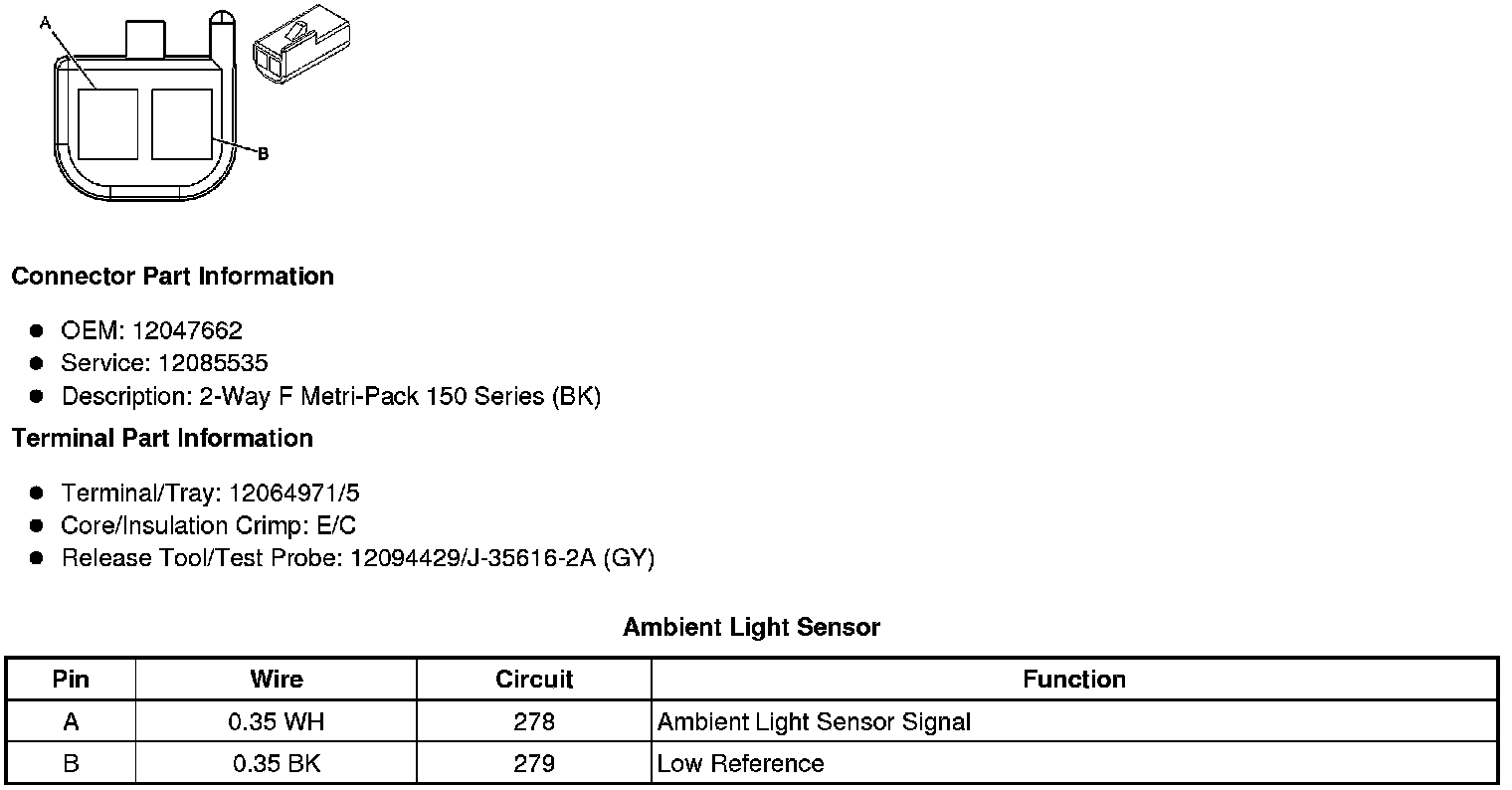

Component Connector End Views
Ambient Light Sensor
