Endgate Lower Hinge Replacement - Body Side

Endgate Lower Hinge Replacement - Body Side

Removal Procedure




1. Remove the endgate from the vehicle. Refer to Endgate Replacement (Service and Repair) .

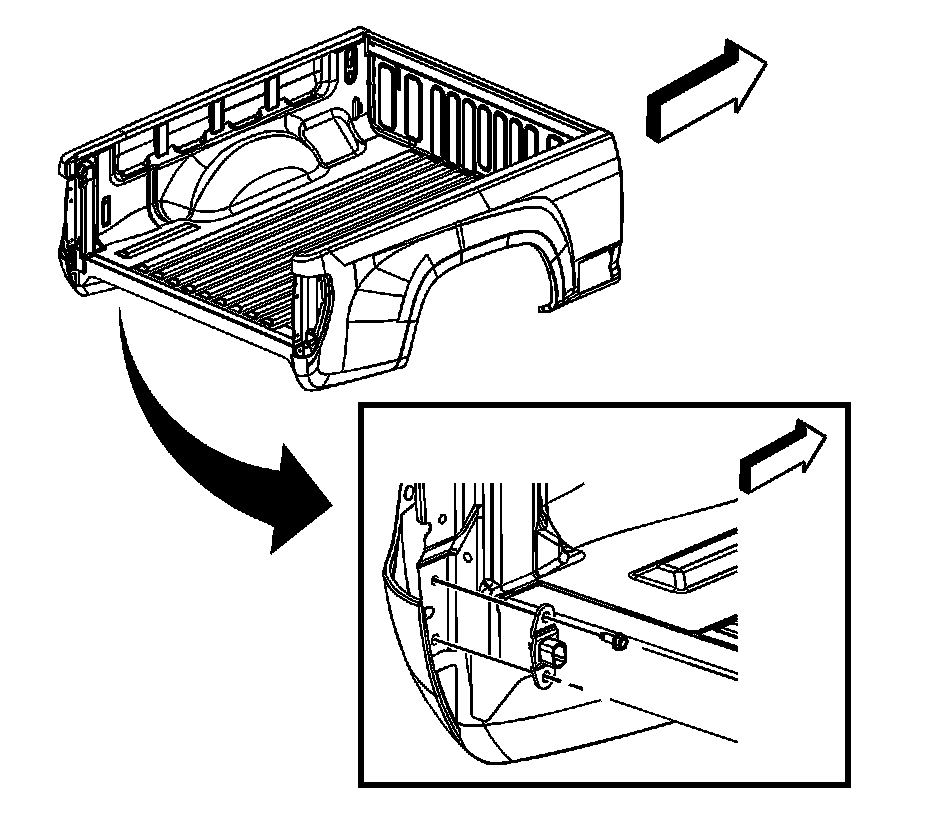

2. Remove the bolts retaining the endgate hinge to the body.
3. Remove the endgate hinge from the body.

Installation Procedure




1. Install the endgate hinge to the body.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the bolts retaining the endgate hinge to the body.

Tighten the endgate hinge bolts to 20 N.m (15 lb ft).

3. Install the endgate to the vehicle. Refer to Endgate Replacement (Service and Repair) .
