EZ Entry Seat Manual Release Knob Replacement

EZ Entry Seat Manual Release Knob Replacement

Removal Procedure

1. Open the door.

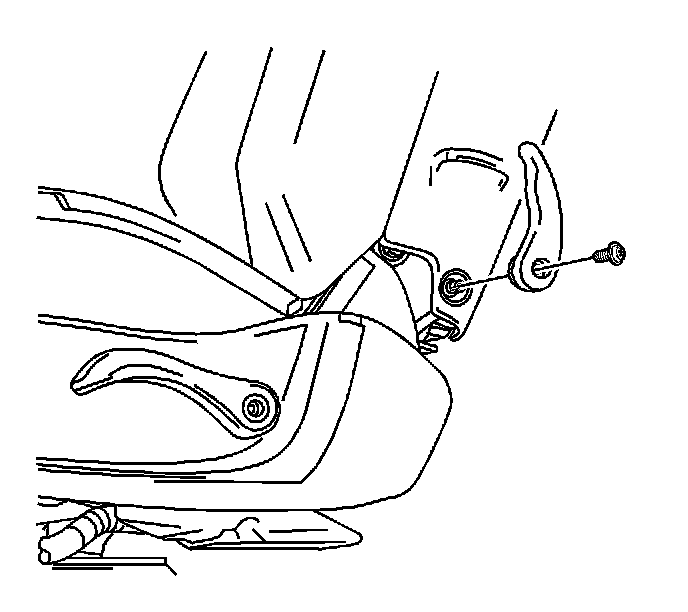

2. Remove the screw securing the seat back release knob to the seat.
3. Remove the seat back release knob.

Installation Procedure

1. Position the seat back release knob onto the seat assembly.





Notice: Refer to Fastener Notice.

2. Install the screw securing the seat back release knob to the seat.

Tighten the front seat back release knob screw to 1.5 N.m (13 lb in).
