Seat Cushion Outer Trim Panel Replacement

Seat Cushion Outer Trim Panel Replacement

Removal Procedure




1. Remove the seat back recliner handle. Refer to Driver Seat and Passenger Seat Recliner Handle Replacement (Driver Seat and Passenger Seat Recliner Handle Replacement) .

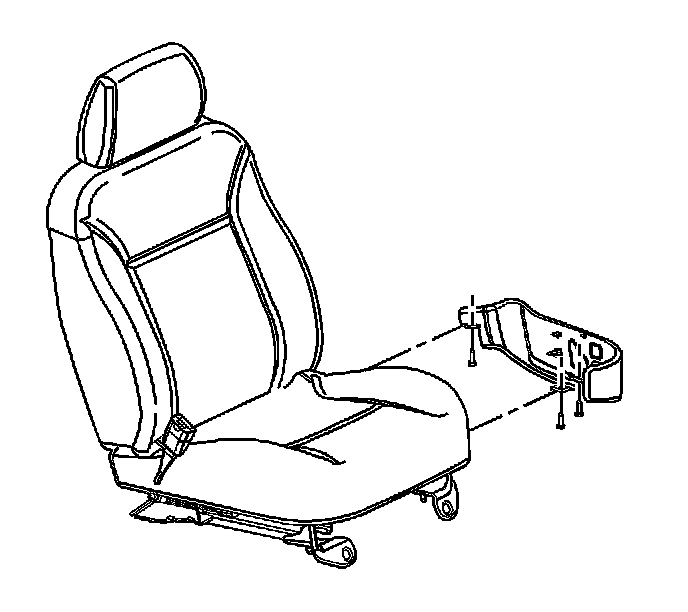

2. Remove the 3 screws retaining the trim panel to the seat.
3. Remove the front seat cushion outer trim panel from the vehicle.

Installation Procedure




1. Align the front seat cushion outer trim panel to the seat assembly.

Notice: Refer to Fastener Notice.

2. Install the 3 seat cushion outer trim panel mounting screws.

Tighten the front seat cushion outer trim panel screws to 1.5 N.m (13 lb in).

3. Install the seat back recliner handle. Refer to Driver Seat and Passenger Seat Recliner Handle Replacement (Driver Seat and Passenger Seat Recliner Handle Replacement) .
