Connector Views

Component Connector End Views

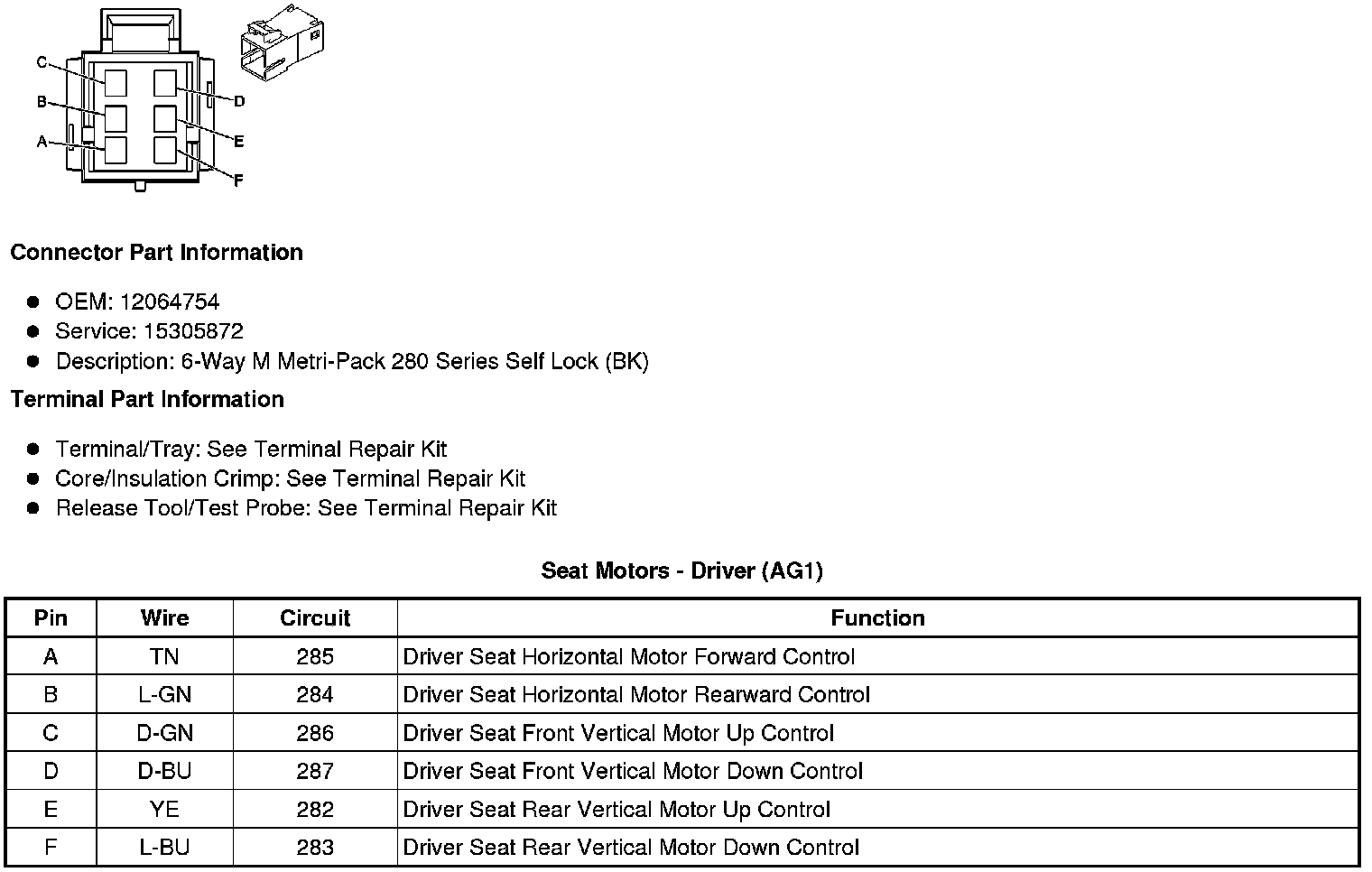

Seat Motors - Driver (AG1)

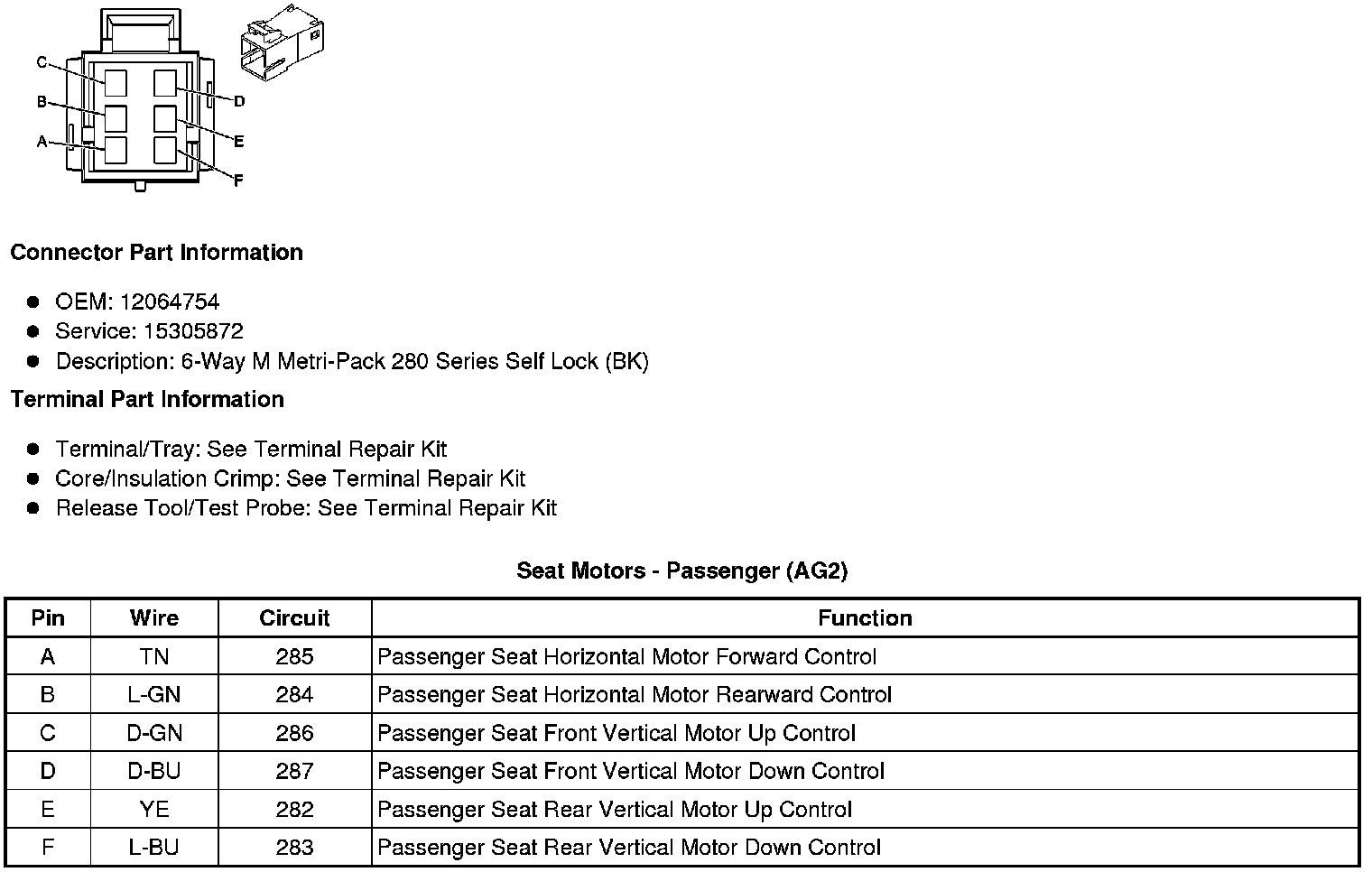

Seat Motors - Passenger (AG2)
