Instrument Panel Compartment Door Replacement

Instrument Panel Compartment Door Replacement

Removal Procedure

1. Remove the instrument panel (I/P) storage compartment assembly. Refer to Instrument Panel Storage Compartment Replacement (Service and Repair) .

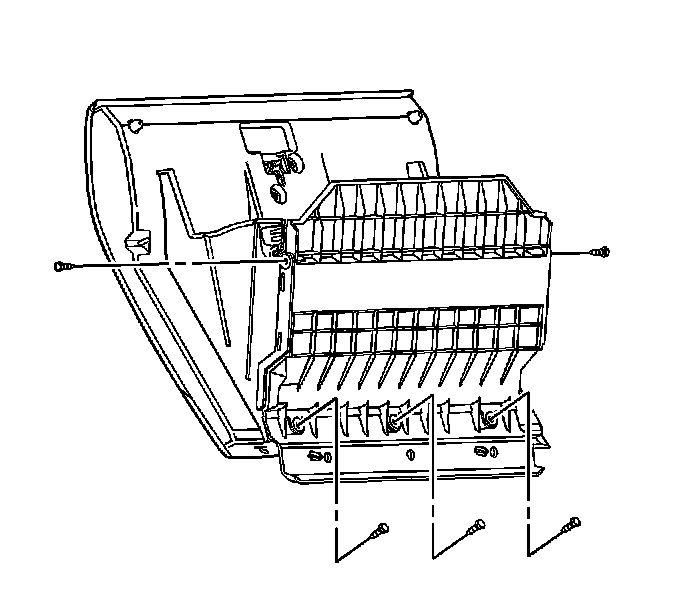

2. Remove the screws retaining the storage compartment back panel.

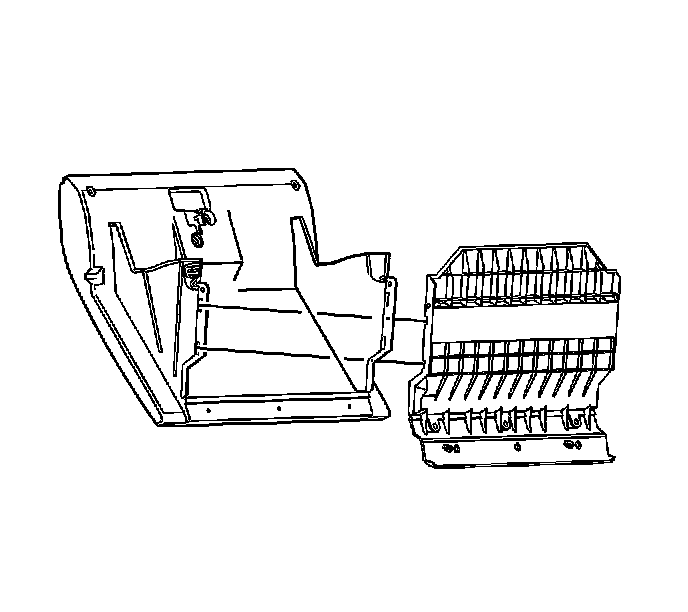

3. Remove the back panel from the storage compartment.

Installation Procedure




1. Install the back panel to the storage compartment.

Notice: Refer to Fastener Notice.




2. Install the screws retaining the storage compartment back panel.

Tighten the screws to 3 N.m (27 lb in).

3. Install the instrument panel (I/P) storage compartment assembly. Refer to Instrument Panel Storage Compartment Replacement (Service and Repair) .
