Front Floor Console Storage Tray Replacement

Front Floor Console Storage Tray Replacement

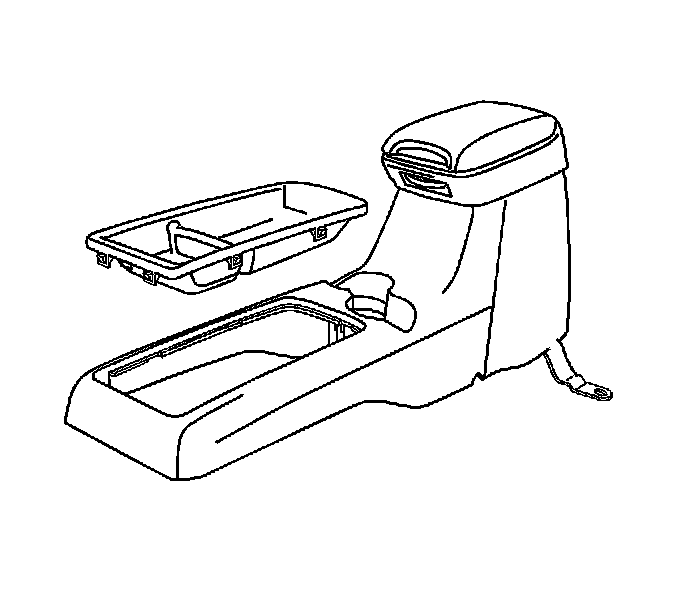

Removal Procedure




1. Ensure the console tray is empty.
2. Lift upward on the console tray to release the retaining tabs.
3. Remove the console tray from the vehicle.

Installation Procedure




1. Position the tray to the console.
2. Ensure the retaining tabs are indexed to the corresponding holes in the console.
3. Push downward on the tray seating the retaining tabs.
