Front Floor Console Armrest Replacement

Front Floor Console Armrest Replacement

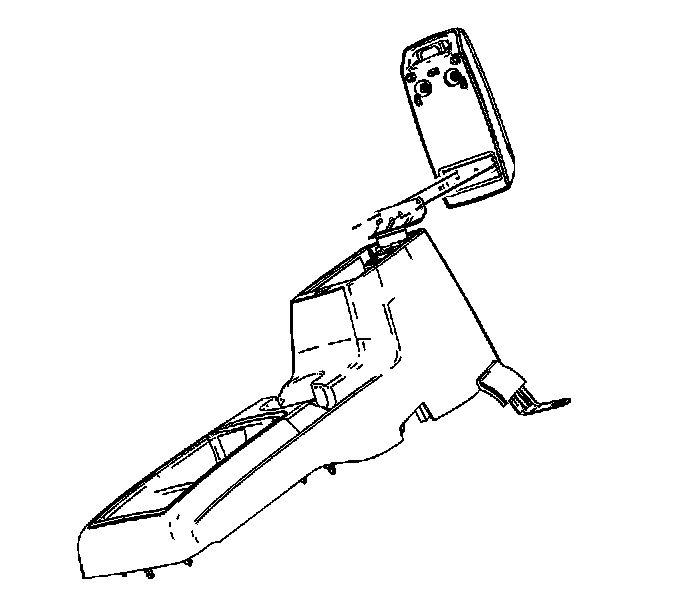

Removal Procedure

1. Open the console armrest, revealing the lower compartment.

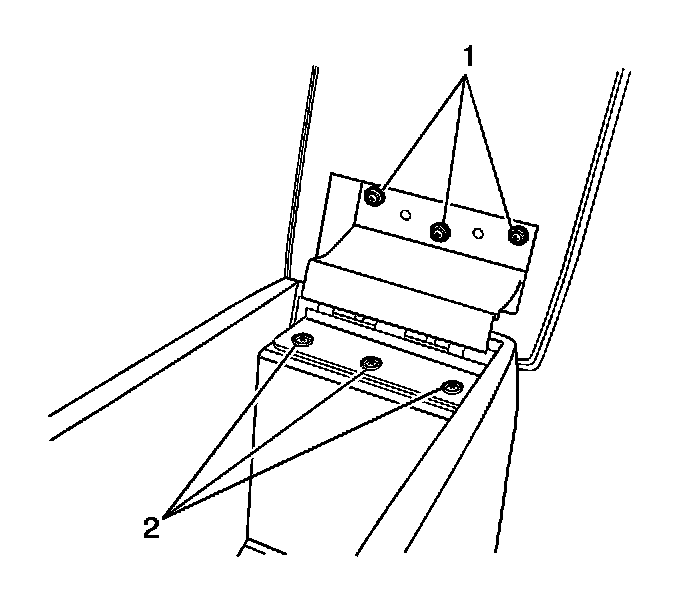

2. Remove the 3 screws (1) located on the upper hinge.




3. Remove the armrest from the vehicle.

Installation Procedure




1. Position the armrest to the console.





Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the 3 screws (1) retaining the armrest to the upper hinge.

Tighten the screws to 1.5 N.m (15 lb in).

3. Close the armrest.
